Airports for X-Plane

Boca Raton

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityBoca Raton
Elevation13ft (4m)
TimezoneGMT -5
Coordinates26.37850, -80.10770
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBCT
IATA codeBCT
FAA codeBCT

Communication

Boca Raton AWOS 3121.125
Boca Raton CTAF118.425
Boca Raton Clearance DEL127.350
Boca Raton Ground Control121.800
Boca Raton Tower118.425
Boca Raton PALM BEACH Approach125.200
Boca Raton PALM BEACH Departure127.350
Nearby Points of Interest:
Fred C. Aiken House
-
Lavender House
-
Boca Raton Old City Hall
-
Administration Buildings
-
House at 1240 Cocoanut Road
-
Old Deerfield School
-
James D. and Alice Butler House
-
John and Elizabeth Shaw Sundy House
-
Delray Beach Seaboard Air Line Railway Station
-
Marina Historic District
-
J. B. Evans House
-
Milton-Myers American Legion Post No. 65
-
Sample Estate
-
Sample-McDougald House
-
Pompano Beach Mound
-
Lofthus
-
Eastover
-
Mai-Kai Restaurant
-
Historic Old Town Commercial District
-
Bonnet House
-
Old Lucerne Historic Residential District
-
Alfred and Olive Thorpe Lustron House
-
College Park Historic District
-
South Side School
-
Williams House

Runway info

Runway 5 / 23
 length1915m (6283ft)
 bearing47° / 227°
 width46m (150ft)
 surfaceasphalt
 displ threshold212m (696ft) / 115m (377ft)
 blast zone46m (151ft) / 46m (151ft)

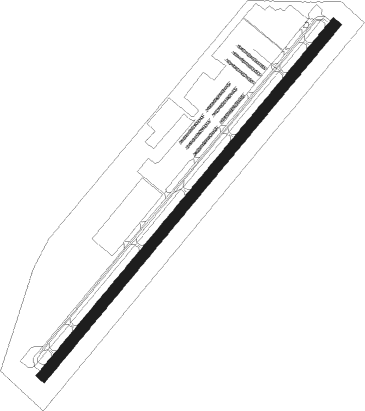

Airport layout


Taxiway locations

 23  P
Parking locations

 FBO  GA1  GA2  HANGARS

Nearby beacons

codeidentifierdistbearingfrequency
FXPRAIZ (FT LAUDERDALE) NDB15.4225°221
PBIPALM BEACH VORTAC18.14°115.70
FLLFORT LAUDERDALE VOR/DME18.5191°114.40
UTXUNITED NDB34337°405
DHPDOLPHIN (MIAMI) VORTAC37.1203°113.90
VKZVIRGINIA KEY VOR/DME37.7184°117.10
PHKPAHOKEE VOR/DME39.6305°115.40
HSTHOMESTEAD TACAN55.3197°108.20
ZBVBIMINI VORTAC59.7130°116.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05
 TURPS1195mi26°
 MYZNR139mi289°
RW23
 TURPS1195mi26°
 MYZNR139mi289°

STAR starting pointsdistanceinbound heading
ALL
 SHRVY154.1114°
 TTYLR157.1123°
 FEBAD145.9129°
 MLB2107.4163°
 RASAE243.4176°
 CPTAN152.7178°
 STOOP152.5178°
 CLMNT152.0199°
 MAHHI226.9266°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05ATONE (92°)ATONE
UZAPA (4mi, 161°) 2000ft
FEYFO (6mi, 131°) 2000ft
RW05FEYFO (47°)FEYFO 2000ft
 RNAVFEYFO 2000ft
TANAH (6mi, 47°) 1500ft
OMITE (3mi, 47°) 560ft
KBCT (2mi, 47°) 52ft
(4873mi, 108°) 262ft
KISEC (4866mi, 288°) 2000ft
KISEC (turn)
RW23-YKISEC (227°)KISEC 2000ft
RW23-YMRLIN (250°)MRLIN
KISEC (11mi, 273°) 2000ft
RW23-YPBI (184°)PBI
SOBPO (7mi, 155°) 3000ft
KISEC (6mi, 131°) 2000ft
 RNAVKISEC 2000ft
HIVUR (6mi, 227°) 1500ft
KBCT (5mi, 227°) 68ft
(4873mi, 108°) 263ft
TANAH (4877mi, 288°)
ATONE (11mi, 290°) 2100ft
ATONE (turn)
RW23-ZWEMSO (162°)WEMSO 4000ft
RANCO (5mi, 98°) 2900ft
XICZO (2mi, 117°) 2400ft
RW23-ZWEPOM (170°)WEPOM 4000ft
ZOREK (4mi, 138°) 3900ft
GECER (3mi, 138°) 3200ft
XICZO (3mi, 138°) 2400ft
 RNAVXICZO 2400ft
HIVUR (4mi, 183°) 1500ft
KBCT (5mi, 227°) 68ft
TACUY (4mi, 227°)
ZILKI (4mi, 262°)
ATONE (8mi, 296°) 2100ft
ATONE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CLMNT1AYBIDVHFright30 (210)°DME 10.0miICAO rules
CLMNT1CLMNTVHFleft30 (210)°DME 10.0miICAO rules
CLMNT1SLUESVHFleft30 (210)°DME 10.0miICAO rules
CPTAN1BORRDVHFleft346 (166)°DME 10.0miICAO rules
CPTAN1CPTANVHFleft341 (161)°DME 10.0miICAO rules
CPTAN1FALTIVHFleft346 (166)°DME 10.0miICAO rules
CPTAN1JOEYYVHFright346 (166)°DME 10.0miICAO rules
MAHHI2ISAACVHFright128 (308)°DME 10.0miICAO rules
SHRVY1GAWKSVHFleft287 (107)°DME 15.0miICAO rules
SHRVY1HORUTVHFright349 (169)°DME 10.0miICAO rules
SHRVY1MOLIEVHFright349 (169)°DME 10.0miICAO rules
SHRVY1RACNOVHFright316 (136)°DME 10.0miICAO rules
SHRVY1ROKSYVHFleft273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
