Airports for X-Plane

Belleville - Scott Afb Midamerica

Airport details

CountryUnited States of America
StateIllinois
RegionK5
AirspaceKansas City Ctr
MunicipalitySaint Clair County
Elevation458ft (140m)
TimezoneGMT -6
Coordinates38.54517, -89.83520
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBLV
IATA codeBLV
FAA codeBLV

Communication

Scott AFB MidAmerica ATIS128.700
Scott AFB MidAmerica UNICOM122.950
Scott AFB MidAmerica Clearance DEL121.750
Scott AFB MidAmerica Ground Control119.200
Scott AFB MidAmerica Ground Control119.875
Scott AFB MidAmerica Tower118.650
Scott AFB MidAmerica Tower128.250
Scott AFB MidAmerica ST LOUIS Approach/Departure125.200

Approach frequencies

ILS-cat-IRW32L109.918.00mi
ILS-cat-IRW14L111.1518.00mi
ILS-cat-IRW32R111.1518.00mi
ILS-cat-IRW14R109.918.00mi
3° GSRW32L109.918.00mi
3° GSRW14L111.1518.00mi
3° GSRW32R111.1518.00mi
3° GSRW14R109.918.00mi
Nearby Points of Interest:
Scott Field Historic District
-
Berger-Kiel House
-
Lebanon Historic District
-
George Draser, Jr., Houses
-
Emerald Mound and Village Site
-
Hotel Belleville
-
Belleville Historic District
-
Knobeloch-Seibert Farm
-
Gustave Koerner House
-
Blair Historic District
-
Miners Institute Building
-
State Bank Building
-
Collinsville City Hall and Fire Station
-
Collinsville Masonic Lodge Hall
-
Daniel Dove Collins House
-
William W. Jarvis House
-
John Carney House
-
James C. Twiss House
-
Rutter Store
-
Marine Chapter House
-
Horseshoe Lake Mound and Village Site
-
Mitchell Archaeological Site
-
Heritage House Museum
-
Pennsylvania Avenue Historic District (East St. Louis, Illinois)
-
Church of the Holy Family

Runway info

Runway 14L / 32R
 length3048m (10000ft)
 bearing130° / 310°
 width46m (151ft)
 surfaceconcrete
Runway 14R / 32L
 length2439m (8002ft)
 bearing130° / 310°
 width46m (151ft)
 surfaceasphalt
 displ threshold0m (0ft) / 61m (200ft)
 blast zone255m (837ft) / 255m (837ft)

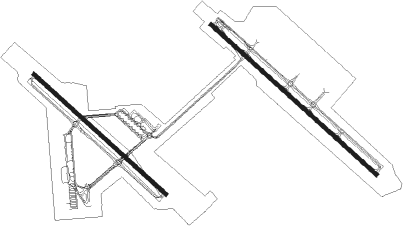

Airport layout


Taxiway locations

 A  E  G  K  K2  K3  K4  K5
 K6
Parking locations

 375th  932d  AVMATS  Illinois  MidAmerica  Military  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
SKESCOTT (BELLEVILLE) TACAN0.7271°112.20
JDGOOEY (BELLEVILLE) NDB6125°385
CPACORE (CAHOKIA/ST LOUIS) NDB10.6264°350
TOYTROY VORTAC12.2337°116
CVMCIVIC MEMORIAL (ALTON) NDB23.2328°263
CSXDME27.6292°116.45
GREGREENVILLE NDB27.758°233
ENLCENTRALIA VORTAC32.6100°115
FZEAVES (ST LOUIS) NDB34.3281°227
STLSAINT LOUIS VORTAC35.7296°117.40
SUSNOOP (ST LOUIS) NDB44.1276°326
VLAVANDALIA VOR/DME45.551°114.30
MDCABBI (CARBONDALE-MURPHYSBORO) NDB49.1139°388
FAMFARMINGTON VORTAC55.6205°115.70
MWJONNY (MARION) NDB58.8129°382
MWADME61.3134°110.40
SYZSHELBYVILLE NDB69.449°365

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 GATWY1179mi70°
 PLESS577mi129°
 LINDY891mi258°
 OZARK8113mi284°

STAR starting pointsdistanceinbound heading
RW14 (ALL)
 DELMA448.276°
 DIXEE351.789°
 FARMR340.5144°
 BUUDD336.4172°
 ENL227.8283°
RW32 (ALL)
 DELMA448.276°
 DIXEE351.789°
 FARMR340.5144°
 BUUDD336.4172°
 ENL227.8283°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14LTOY (157°)TOY
BALLY (5mi, 236°) 2100ft
 RNAVBALLY 2100ft
OFAFY (6mi, 130°) 2100ft
DMJPS (1mi, 130°) 1620ft
KBLV (4mi, 137°) 497ft
(5397mi, 113°) 642ft
JIRUB (5395mi, 293°)
DUTMY (11mi, 99°) 2300ft
DUTMY (turn)
RW14RTOY (157°)TOY
SIQAF (6mi, 224°) 2800ft
 RNAVSIQAF 2800ft
PUJXO (5mi, 130°) 1800ft
KBLV (5mi, 123°) 524ft
(5397mi, 113°) 859ft
QODCU (5391mi, 293°) 3000ft
QODCU (turn)
RW32LDUTMY (283°)DUTMY
QODCU (8mi, 243°) 2400ft
RW32LNEWAT (347°)NEWAT
QODCU (9mi, 27°) 2400ft
 RNAVQODCU 2400ft
TIZGE (5mi, 310°) 2100ft
KBLV (5mi, 317°) 492ft
(5397mi, 113°) 1500ft
QODCU (5391mi, 293°) 2400ft
QODCU (turn)
RW32RCOFEY (282°)COFEY
OJAMO (7mi, 233°) 2200ft
 RNAVOJAMO 2200ft
AFEBE (6mi, 310°) 2200ft
ENRRN (2mi, 310°) 1460ft
KBLV (4mi, 303°) 497ft
(5397mi, 113°) 642ft
MADDT (5403mi, 293°)
JIKMO (10mi, 79°)
COFEY (16mi, 136°) 2300ft
COFEY (turn)
