Airports for X-Plane

Nashville - Nashville Intl

Airport details

CountryUnited States of America
StateTennessee
RegionK7
AirspaceMemphis Ctr
MunicipalityNashville-Davidson
Elevation598ft (182m)
TimezoneGMT -6
Coordinates36.12447, -86.67817
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBNA
IATA codeBNA
FAA codeBNA

Communication

Nashville Intl KBNA ATIS135.100
Nashville Intl UNICOM122.950
Nashville Intl NASHVILLE CLD126.050
Nashville Intl NASHVILLE Ground Control121.900
Nashville Intl NASHVILLE Tower118.600
Nashville Intl NASHVILLE_ApproachROACH119.350
Nashville Intl NASHVILLE Departure118.400
Nashville Intl NASHVILLE Departure119.350

Approach frequencies

ILS-cat-IIIRW02R111.7518.00mi
ILS-cat-IIIRW02L109.918.00mi
ILS-cat-IRW20R111.318.00mi
ILS-cat-IRW20L109.3518.00mi
ILS-cat-IRW31111.9518.00mi
ILS-cat-IRW02C110.7518.00mi
3° GSRW20R111.318.00mi
3° GSRW02L109.918.00mi
3° GSRW02C110.7518.00mi
3° GSRW02R111.7518.00mi
3° GSRW31111.9518.00mi
3° GSRW20L109.3518.00mi
Nearby Points of Interest:
Ellis Service Station Garage
-
Hall-Harding-McCampbell House
-
Belair
-
Anna Russell Cole Auditorium
-
Hays-Kiser House
-
Miles House
-
Lebanon Road Stone Arch Bridge
-
Two Rivers Mansion
-
Weakley-Truett-Clark House
-
Holly Street Fire Hall
-
Hubbard House
-
Lindsley Hall
-
Riverwood
-
James Geddes Engine Company No. 6
-
Robincroft
-
Longview
-
Primitive Baptist Church
-
Elm Street Methodist Church
-
Travellers Rest
-
Woodmont Terrace Apartments
-
Acme Farm Supply Building
-
Second Avenue Commercial District
-
Cheatham Building
-
Cummins Station
-
Printers Alley Historic District

Runway info

Runway 2C / 20C
 length2443m (8015ft)
 bearing22° / 202°
 width46m (151ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 2R / 20L
 length2443m (8015ft)
 bearing22° / 202°
 width46m (151ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 2L / 20R
 length2352m (7717ft)
 bearing21° / 201°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 59m (194ft)
Runway 13 / 31
 length3362m (11030ft)
 bearing127° / 307°
 width46m (151ft)
 surfaceconcrete
 displ threshold244m (801ft) / 226m (741ft)
 blast zone76m (249ft) / 61m (200ft)

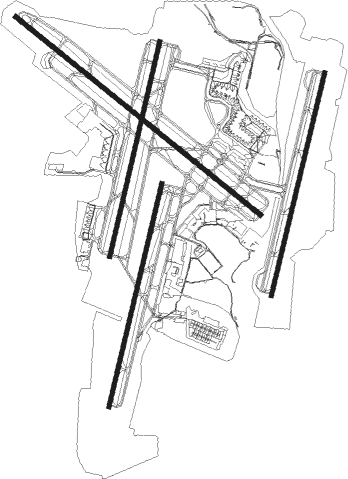

Airport layout


Taxiway locations

 A  A1  A2  A4  B  B1  B2  B3
 B4  B5  C5  C6  H  H1  H2  H3
 H4  H5  H6  J  K  K2  K3  L
 L2  L3  L7  L8  M  N  S  S1
 S2  S3  S4  S5  S6  S7  T1  T2
 T3  T4  T5  T6  U  U4
Parking locations

 Atlantic  Cargo  Embraer  GA  Gate  Hanger  Jetlinx  JetRight
 Nashville  Penalty  Signature  SW  T-DOT  TN  VIP

Nearby beacons

codeidentifierdistbearingfrequency
BNANASHVILLE VORTAC0.8332°114.10
FQWWALTER HILL (MURFREESBORO) NDB17.8118°371
SYISHELBYVILLE VOR/DME35.7157°113.55
GHM(CENTERVILLE) DME41.4249°111.60
CKSNUFF(FT CAMPBELL (CLARKSVILLE NDB41.9300°335
BWNOORA (BOWLING GREEN) NDB46.315°236
CKVCLARKSVILLE VOR/DME46.4304°110.60
BWGGREEN DME49.616°117.90
FKAIRBE(FT CAMPBELL/HOPKINSVILLE NDB51.1310°273
HXWSCREAMING EAGLE TACAN51.5303°114.90

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02 (ALL)
 KRSTA372mi26°
 CHADM378mi72°
 TAZMO379mi94°
 EVVAN352mi112°
 TIPPN370mi156°
 FLAME379mi186°
 DRURY380mi219°
 DANLS3119mi261°
 PARDN382mi288°
 NASHV713mi300°
 HGGRD3104mi307°
 GDOGG374mi355°
RW13
 KRSTA372mi26°
 CHADM378mi72°
 TAZMO379mi94°
 EVVAN352mi112°
 TIPPN370mi156°
 FLAME379mi186°
 DRURY380mi219°
 DANLS3119mi261°
 PARDN382mi288°
 NASHV713mi300°
 HGGRD3104mi307°
 GDOGG374mi355°
RW20 (ALL)
 KRSTA372mi26°
 CHADM378mi72°
 TAZMO379mi94°
 EVVAN352mi112°
 TIPPN370mi156°
 FLAME379mi186°
 DRURY380mi219°
 DANLS3119mi261°
 PARDN382mi288°
 NASHV713mi300°
 HGGRD3104mi307°
 GDOGG374mi355°
RW31
 KRSTA372mi26°
 CHADM378mi72°
 TAZMO379mi94°
 EVVAN352mi112°
 TIPPN370mi156°
 FLAME379mi186°
 DRURY380mi219°
 DANLS3119mi261°
 PARDN382mi288°
 NASHV713mi300°
 HGGRD3104mi307°
 GDOGG374mi355°

STAR starting pointsdistanceinbound heading
RW02 (ALL)
 CHSNE224.270°
 RYYMN224.3149°
 PASLY429.1243°
 SWFFT229.2307°
RW13
 CHSNE224.270°
 RYYMN224.3149°
 PASLY429.1243°
 SWFFT229.2307°
RW20 (ALL)
 CHSNE224.270°
 RYYMN224.3149°
 PASLY429.1243°
 SWFFT229.2307°
RW31
 CHSNE224.270°
 RYYMN224.3149°
 PASLY429.1243°
 SWFFT229.2307°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02CYSYI (337°)SYI
JASOP (26mi, 317°) 3000ft
RW02CYTUNGY (43°)TUNGY
JASOP (18mi, 57°) 3000ft
 RNAVJASOP 3000ft
GRRTH (6mi, 22°) 2500ft
JOSRO (3mi, 22°) 1520ft
KBNA (4mi, 23°) 629ft
(5244mi, 113°) 787ft
GUYEK (5243mi, 293°) 4000ft
HIKRY (7mi, 19°) 4000ft
HIKRY (turn)
RW02CZLRETA (22°)LRETA 3000ft
UHADU (4mi, 22°) 2700ft
EGECA (3mi, 22°) 1900ft
RW02CZTEARS (316°)TEARS 6000ft
PUCOR (10mi, 286°) 4000ft
VUYUL (8mi, 315°) 2500ft
EGECA (2mi, 347°) 1900ft
RW02CZTUPIE (48°)TUPIE 4000ft
CIMIV (4mi, 73°) 2600ft
EGECA (2mi, 49°) 1900ft
RW02CZWAMAR (93°)WAMAR 5000ft
ESOYO (4mi, 201°) 4000ft
YUTUT (2mi, 167°) 3200ft
CIMIV (3mi, 103°) 2600ft
EGECA (2mi, 49°) 1900ft
RW02CZZODKA (280°)ZODKA 5000ft
IVUDE (6mi, 202°) 4200ft
VUYUL (5mi, 262°) 2500ft
EGECA (2mi, 347°) 1900ft
 RNAVEGECA 1900ft
KBNA (5mi, 23°) 629ft
NIRHI (5mi, 21°)
HIKRY (6mi, 19°) 4000ft
HIKRY (turn)
RW02LYBNA (152°)BNA
RONLE (13mi, 200°) 3000ft
RONLE (turn) 3000ft
RW02LYSYI (337°)SYI
RONLE (27mi, 319°) 3000ft
RW02LYTUNGY (43°)TUNGY
RONLE (19mi, 56°) 3000ft
 RNAVRONLE 3000ft
DOBBS (6mi, 21°) 2500ft
TEPEA (4mi, 21°) 1380ft
KBNA (3mi, 28°) 654ft
(5244mi, 113°) 799ft
HIKRY (5241mi, 293°) 4000ft
HIKRY (turn)
RW02LZRONLE (23°)RONLE 3000ft
DUFDE (5mi, 21°) 2600ft
ZODEB (3mi, 21°) 1900ft
RW02LZTEARS (316°)TEARS 6000ft
PUCOR (10mi, 286°) 4000ft
NEMJI (9mi, 320°) 2500ft
ZODEB (2mi, 350°) 1900ft
RW02LZTUPIE (48°)TUPIE 4000ft
CIVMU (5mi, 65°) 2400ft
ZODEB (2mi, 45°) 1900ft
RW02LZWAMAR (93°)WAMAR 5000ft
ZAVEG (3mi, 201°) 4000ft
IYJOR (3mi, 162°) 3100ft
CIVMU (3mi, 95°) 2400ft
ZODEB (2mi, 45°) 1900ft
RW02LZZODKA (280°)ZODKA 5000ft
HEBVA (5mi, 202°) 4000ft
CIROR (4mi, 247°) 2900ft
YEYDU (turn) 2900ft
NEMJI (2mi, 301°) 2500ft
ZODEB (2mi, 350°) 1900ft
 RNAVZODEB 1900ft
KBNA (4mi, 25°) 654ft
HIKRY (11mi, 20°) 4000ft
HIKRY (turn)
RW02RYBNA (152°)BNA
ATKNS (15mi, 196°) 3000ft
ATKNS (turn) 3000ft
RW02RYSYI (337°)SYI
ATKNS (25mi, 317°) 3000ft
RW02RYTUNGY (43°)TUNGY
ATKNS (18mi, 61°) 3000ft
 RNAVATKNS 3000ft
LOUDN (3mi, 22°) 2700ft
SKAGS (5mi, 22°) 2500ft
KOYER (3mi, 22°) 1600ft
KBNA (4mi, 8°) 649ft
(5244mi, 113°) 1300ft
LENON (5221mi, 293°) 4000ft
LENON (turn)
RW02RZATKNS (18°)ATKNS 3000ft
TETCU (7mi, 22°) 2700ft
JOVAB (3mi, 22°) 1900ft
RW02RZTEARS (316°)TEARS 6000ft
PUCOR (10mi, 286°) 4000ft
WIPEN (8mi, 325°) 2500ft
JOVAB (2mi, 353°) 1900ft
RW02RZTUPIE (48°)TUPIE 4000ft
NIBCI (6mi, 71°) 2500ft
JOVAB (2mi, 48°) 1900ft
RW02RZWAMAR (93°)WAMAR 5000ft
PUCIC (3mi, 202°) 4100ft
UFJOS (3mi, 164°) 3400ft
REYPY (1mi, 117°) 3100ft
REQPA (turn) 2900ft
NIBCI (2mi, 88°) 2500ft
JOVAB (2mi, 48°) 1900ft
RW02RZZODKA (280°)ZODKA 5000ft
CIVEN (5mi, 202°) 4000ft
WIPEN (5mi, 265°) 2500ft
JOVAB (2mi, 353°) 1900ft
 RNAVJOVAB 1900ft
KBNA (5mi, 11°) 649ft
(5244mi, 113°) 1300ft
LENON (5221mi, 293°) 4000ft
LENON (turn)
RW13BEVEE (90°)BEVEE
JARAS (16mi, 50°) 3100ft
IDAGE (8mi, 127°) 2500ft
RW13BNA (152°)BNA
JARAS (15mi, 307°) 3100ft
JARAS (turn) 3100ft
IDAGE (8mi, 127°) 2500ft
RW13TEACH (124°)TEACH
JARAS (14mi, 119°) 3100ft
IDAGE (8mi, 127°) 2500ft
 RNAVIDAGE 2500ft
CEPAX (2mi, 127°) 2200ft
HEVAT (2mi, 127°) 1600ft
KBNA (4mi, 129°) 598ft
ONUGE (13mi, 127°) 3000ft
ONUGE (turn)
RW20CLENON (252°)LENON
CTHRN (20mi, 271°) 3000ft
RW20CTANDS (196°)TANDS
CTHRN (15mi, 191°) 3000ft
 RNAVCTHRN 3000ft
MNNKY (6mi, 202°) 2000ft
XEFJY (2mi, 202°) 1280ft
KBNA (2mi, 200°) 622ft
(5244mi, 113°) 960ft
JASOP (5248mi, 292°) 3000ft
JASOP (turn)
RW20LYBNA (152°)BNA
WAYLN (11mi, 29°) 3000ft
WAYLN (turn) 3000ft
RW20LYLENON (252°)LENON
WAYLN (19mi, 273°) 3000ft
RW20LYTANDS (196°)TANDS
WAYLN (14mi, 187°) 3000ft
 RNAVWAYLN 3000ft
JUUDD (6mi, 202°) 2000ft
XIYRI (2mi, 202°) 1220ft
KBNA (3mi, 218°) 587ft
(5244mi, 113°) 1300ft
CENOP (5220mi, 293°) 4000ft
CENOP (turn)
RW20LZCULAR (160°)CULAR 4000ft
CUNSU (6mi, 128°) 2300ft
YUBUG (2mi, 163°) 1700ft
RW20LZJOGLO (108°)JOGLO 5000ft
IDADE (4mi, 21°) 4000ft
WUNOG (3mi, 67°) 2900ft
HERIR (1mi, 104°) 2600ft
CUNSU (turn) 2300ft
YUBUG (2mi, 163°) 1700ft
RW20LZMUUDD (240°)MUUDD 6000ft
MESOE (8mi, 249°) 4000ft
RUDOY (7mi, 248°) 2300ft
YUBUG (2mi, 227°) 1700ft
RW20LZSIPPO (281°)SIPPO 5000ft
WOKAP (4mi, 22°) 4000ft
RUDOY (5mi, 305°) 2300ft
YUBUG (2mi, 227°) 1700ft
RW20LZWAYLN (206°)WAYLN 3000ft
HILOS (4mi, 202°) 2500ft
YUBUG (3mi, 202°) 1700ft
 RNAVYUBUG 1700ft
KBNA (4mi, 212°) 587ft
(5244mi, 113°) 1300ft
CENOP (5220mi, 293°) 4000ft
CENOP (turn)
RW20RYBNA (152°)BNA
HIKRY (11mi, 23°) 4000ft
HIKRY (turn) 4000ft
RW20RYTANDS (196°)TANDS
HIKRY (14mi, 192°) 4000ft
 RNAVHIKRY 4000ft
OPERY (6mi, 201°) 2000ft
KBNA (5mi, 198°) 616ft
(5244mi, 113°) 778ft
RONLE (5248mi, 292°) 3000ft
RONLE (turn)
RW20RZCULAR (160°)CULAR 4000ft
SUDRE (5mi, 133°) 2500ft
ZINUM (2mi, 166°) 1700ft
RW20RZHIKRY (200°)HIKRY 3000ft
ZEPET (4mi, 201°) 2500ft
ZINUM (3mi, 201°) 1700ft
RW20RZJOGLO (108°)JOGLO 5000ft
IDADE (4mi, 21°) 4000ft
SUDRE (4mi, 80°) 2500ft
ZINUM (2mi, 166°) 1700ft
RW20RZMUUDD (240°)MUUDD 6000ft
MESOE (8mi, 249°) 4000ft
WEGMA (8mi, 252°) 2300ft
ZINUM (2mi, 229°) 1700ft
RW20RZSIPPO (281°)SIPPO 5000ft
WOKAP (4mi, 22°) 4000ft
WEVUT (3mi, 328°) 2900ft
ZUGLI (turn) 2700ft
WEGMA (2mi, 269°) 2300ft
ZINUM (2mi, 229°) 1700ft
 RNAVZINUM 1700ft
KBNA (4mi, 197°) 615ft
RONLE (12mi, 203°) 3000ft
RONLE (turn)
RW31-YBNA (152°)BNA
ONUGE (13mi, 128°) 3000ft
ONUGE (turn) 3000ft
RW31-YCENOP (307°)CENOP
ONUGE (19mi, 308°) 3000ft
RW31-YSYI (337°)SYI
ONUGE (25mi, 353°) 3000ft
 RNAVONUGE 3000ft
HOLER (6mi, 308°) 2600ft
KBNA (7mi, 306°) 630ft
(5244mi, 113°) 778ft
JARAS (5256mi, 293°) 3100ft
JARAS (turn)
RW31-ZBGEDD (15°)BGEDD 4000ft
NEZRU (3mi, 81°) 3500ft
ZEVEM (3mi, 53°) 2600ft
COVBI (3mi, 341°) 1700ft
RW31-ZGILME (56°)GILME 5000ft
USISE (4mi, 127°) 4000ft
NEZRU (2mi, 103°) 3500ft
ZEVEM (3mi, 53°) 2600ft
COVBI (3mi, 341°) 1700ft
RW31-ZMUGEE (268°)MUGEE 4000ft
TIBVE (4mi, 231°) 2800ft
COVBI (3mi, 269°) 1700ft
RW31-ZONUGE (307°)ONUGE 4000ft
CUSUT (6mi, 308°) 2500ft
COVBI (3mi, 307°) 1700ft
 RNAVCOVBI 1700ft
KBNA (4mi, 305°) 630ft
JARAS (16mi, 308°) 3100ft
JARAS (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHSNE2CHSNEVHFright249 (69)°< 60000ftDME 10.0miICAO rules
PASLY4PASLYVHFright63 (243)°< 60000ftDME 10.0miICAO rules
RYYMN2RYYMNVHFright337 (157)°< 60000ftDME 10.0miICAO rules
SWFFT2SWFFTVHFright135 (315)°< 60000ftDME 10.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
