Airports for X-Plane

Waco - Tstc Waco

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityWaco
Elevation470ft (143m)
TimezoneGMT -6
Coordinates31.63781, -97.07414
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCNW
IATA codeCNW
FAA codeCNW

Communication

TSTC Waco AWOS 3134.225
TSTC Waco CTAF124.000
TSTC Waco Ground Control121.700
TSTC Waco Tower124.000
TSTC Waco WACO App127.650
TSTC Waco WACO Dep126.125

Approach frequencies

ILS-cat-IRW17L110.718.00mi
3° GSRW17L110.718.00mi
Nearby Points of Interest:
Praetorian Building
-
Waco High School
-
Westphalia
-
The Church of the Visitation
-
Bosque County Courthouse

Runway info

Runway 17R / 35L
 length1923m (6309ft)
 bearing177° / 357°
 width46m (150ft)
 surfaceconcrete
 blast zone17m (56ft) / 0m (0ft)
Runway 17L / 35R
 length2625m (8612ft)
 bearing177° / 357°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

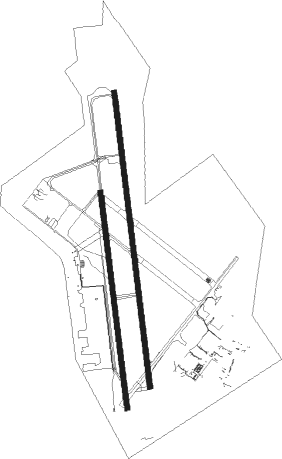

Airport layout


Taxiway locations

 0  A  B  D  E  G  H
Parking locations

 Apron  L3  Tower  TSTC  Warehouse

Nearby beacons

codeidentifierdistbearingfrequency
ROBROBINSON (WACO) NDB8178°400
ACTWACO VORTAC10277°115.30
GNLGROESBECK (MEXIA) VOR/DME2796°108.80
LXYMEXIA NDB28.790°329
TPLDME31.3219°110.40
CGQPOWELL (CORSICANA) NDB41.857°344
CRSCORSICANA NDB41.860°396
ILIRESH (KILLEEN) NDB49.1226°278
JENGLEN ROSE TACAN51.5303°115
GRKGRAY (FORT HOOD) VOR/DME52.5231°111.80
CQYCEDAR CREEK VORTAC54.657°114.80

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17LACT (97°)ACT
CUKAV (15mi, 43°) 2300ft
CUKAV (turn) 2300ft
RW17LCQY (237°)CQY
TOURS (47mi, 254°) 2300ft
CUKAV (5mi, 177°) 2300ft
 RNAVCUKAV 2300ft
ZIRVI (7mi, 177°) 2300ft
WIPLU (4mi, 177°) 1140ft
KCNW (3mi, 178°) 522ft
(5767mi, 108°) 670ft
OMOBE (5767mi, 288°) 2300ft
OMOBE (turn)
RW35RACT (97°)ACT
OMOBE (19mi, 141°) 2300ft
OMOBE (turn) 2300ft
 RNAVOMOBE 2300ft
RUBDY (8mi, 357°) 2300ft
OLHUF (4mi, 357°) 1120ft
KCNW (3mi, 356°) 497ft
(5767mi, 108°) 780ft
CUKAV (5766mi, 288°) 2300ft
CUKAV (turn)
