Cahokia/st Louis - St Louis Downtown
Airport details
| Country | United States of America |
| State | Illinois |
| Region | K5 |
| Airspace | Kansas City Ctr |
| Municipality | Cahokia |
| Elevation | 413ft (126m) |
| Timezone | GMT -6 |
| Coordinates | 38.57036, -90.15508 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KCPS |
| IATA code | CPS |
| FAA code | CPS |
Communication
| St Louis Downtown ASOS | 127.850 |
| St Louis Downtown CTAF | 120.900 |
| St Louis Downtown UNICOM | 122.950 |
| St Louis Downtown Ground Control | 121.800 |
| St Louis Downtown DOWNTOWN Tower | 120.900 |
| St Louis Downtown Approach/Departure | 133.000 |
Approach frequencies
| ILS-cat-I | RW30L | 109.1 | 18.00mi |
| 3° GS | RW30L | 109.1 | 18.00mi |
Nearby Points of Interest:
Nicholas Jarrot Mansion
-Church of the Holy Family
-Chatillon-DeMenil House
-Spivey Building
-Union Trust Bank Company Building
-Majestic Theatre (1929–1960)
-Downtown East St. Louis Historic District
-St. John Nepomuk Parish Historic District
-Pennsylvania Avenue Historic District (East St. Louis, Illinois)
-International Fur Exchange Building
-Mississippi Valley Trust Company Building
-Laclede's Landing, St. Louis
-J. C. Penney Co. Warehouse Building
-Lafayette Square Historic District
-Ambassador Theatre
-Railway Exchange Building
-Missouri Athletic Club Building
-The Syndicate
-Roberts, Johnson and Rand-International Shoe Company Complex
-Wachter Motor Car Company Building
-Plaza Square Apartments Historic District
-Washington Avenue Historic District
-Cotton Belt Freight Depot
-Wrought Iron Range Company Building
-Lucas Avenue Industrial Historic District

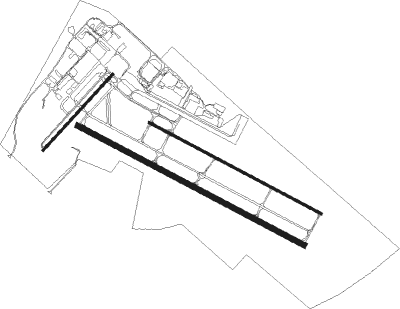

Runway info
Runway 12R / 30L  | ||
| length | 2131m (6991ft) | |
| bearing | 116° / 296° | |
| width | 46m (150ft) | |
| surface | asphalt | |
| Runway 12L / 30R | ||
| length | 1617m (5305ft) | |
| bearing | 116° / 296° | |
| width | 23m (75ft) | |
| surface | concrete | |
| Runway 5 / 23 | ||
| length | 853m (2799ft) | |
| bearing | 54° / 234° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| CP | ACORE (CAHOKIA/ST LOUIS) NDB | 5.4 | 118° | 350 |
| SKE | SCOTT (BELLEVILLE) TACAN | 14.3 | 95° | 112.20 |
| CSX | DME | 14.6 | 312° | 116.45 |
| TOY | TROY VORTAC | 15 | 54° | 116 |
| FZ | EAVES (ST LOUIS) NDB | 19.4 | 285° | 227 |
| CVM | CIVIC MEMORIAL (ALTON) NDB | 19.8 | 17° | 263 |
| JD | GOOEY (BELLEVILLE) NDB | 20.3 | 102° | 385 |
| STL | SAINT LOUIS VORTAC | 23.2 | 312° | 117.40 |
| SU | SNOOP (ST LOUIS) NDB | 29 | 276° | 326 |
| FTZ | FORISTELL VORTAC | 39 | 279° | 110.80 |
| GRE | GREENVILLE NDB | 39.9 | 71° | 233 |
| ENL | CENTRALIA VORTAC | 47.6 | 99° | 115 |
| FAM | FARMINGTON VORTAC | 53.9 | 185° | 115.70 |
| VLA | VANDALIA VOR/DME | 56 | 62° | 114.30 |
| MD | CABBI (CARBONDALE-MURPHYSBORO) NDB | 60 | 128° | 388 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| ALL | |||
| GATWY1 | 191mi | 72° | |
| LINDY8 | 77mi | 255° | |
| OZARK8 | 98mi | 285° | |
| RW05 | |||
| PLESS5 | 89mi | 123° | |
| RW12 (ALL) | |||
| PLESS5 | 89mi | 123° | |
| RW23 | |||
| PLESS5 | 89mi | 123° | |
| RW30 (ALL) | |||
| PLESS5 | 89mi | 123° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW12R | |||
| DELMA4 | 34.9 | 68° | |
| DIXEE3 | 36.7 | 86° | |
| FARMR3 | 34.1 | 169° | |
| BUUDD3 | 36.4 | 202° | |
| RW30 (ALL) | |||
| DELMA4 | 34.9 | 68° | |
| DIXEE3 | 36.7 | 86° | |
| FARMR3 | 34.1 | 169° | |
| BUUDD3 | 36.4 | 202° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW12R | ARNOL (33°) | ARNOL ZINKI (10mi, 360°) 2800ft FOSKU (9mi, 344°) 2800ft |
| RW12R | DELMA (60°) | DELMA ZINKI (32mi, 62°) 2800ft FOSKU (9mi, 344°) 2800ft |
| RW12R | FOSKU (92°) | FOSKU 2800ft |
| RW12R | NEWAT (308°) | NEWAT ZINKI (29mi, 286°) 2800ft FOSKU (9mi, 344°) 2800ft |
| RNAV | FOSKU 2800ft JUPIS (6mi, 80°) 2200ft KCPS (6mi, 104°) 462ft (5412mi, 113°) 813ft JIXAB (5411mi, 293°) LICKO (11mi, 119°) 2200ft LICKO (turn) | |
| RW30L | GLASS (21°) | GLASS ILETE (27mi, 50°) 2300ft ILETE (turn) 2200ft |
| RW30L | SUGAR (278°) | SUGAR ILETE (6mi, 239°) 2200ft |
| RW30L | TOY (234°) | TOY ILETE (17mi, 183°) 2200ft ILETE (turn) 2200ft |
| RNAV | ILETE 2200ft AYAVI (7mi, 296°) 2100ft WODPA (3mi, 296°) 1120ft KCPS (3mi, 298°) 463ft (5412mi, 113°) 1000ft GLASS (5421mi, 293°) 3000ft GLASS (turn) | |
| RW30R | GLASS (21°) | GLASS EXOFE (27mi, 50°) 2300ft EXOFE (turn) 2300ft |
| RW30R | SUGAR (278°) | SUGAR EXOFE (6mi, 239°) 2300ft |
| RW30R | TOY (234°) | TOY EXOFE (17mi, 182°) 2300ft EXOFE (turn) 2300ft |
| RNAV | EXOFE 2300ft ZUGEB (7mi, 296°) 2100ft WIBTO (3mi, 296°) 1080ft KCPS (3mi, 295°) 447ft (5412mi, 113°) 813ft GLASS (5421mi, 293°) 3000ft GLASS (turn) |
