Airports for X-Plane

Carlsbad - Mc Clellan Palomar

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityCarlsbad
Elevation331ft (101m)
TimezoneGMT -8
Coordinates33.12803, -117.27243
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCRQ
IATA codeCLD
FAA codeCRQ

Communication

Mc Clellan Palomar ATIS120.150
Mc Clellan Palomar CTAF118.600
Mc Clellan Palomar Clearance DEL134.850
Mc Clellan Palomar Ground Control121.800
Mc Clellan Palomar Tower118.600
Mc Clellan Palomar App Freq127.300
Mc Clellan Palomar Dep Freq127.300

Approach frequencies

ILS-cat-IRW24108.718.00mi
3.2° GSRW24108.718.00mi
Nearby Points of Interest:
Rancho De Los Kiotes
-
Carlsbad Santa Fe Depot
-
Olivenhain Town Meeting Hall
-
Americanization School
-
Mount Ecclesia
-
Oceanside City Hall and Fire Station
-
Rancho Santa Fe
-
Canfield-Wright House
-
Guy and Margaret Fleming House
-
Torrey Pines Lodge
-
Johnson-Taylor Ranch Headquarters
-
Las Flores Estancia
-
Torrey Pines Gliderport
-
Old Scripps Building
-
La Jolla Woman's Club
-
Presidio of San Diego
-
Cosmopolitan Hotel and Restaurant
-
Casa de Estudillo
-
Edgemoor Farm Dairy Barn
-
Hepner Hall
-
Marine Corps Recruit Depot San Diego
-
Aztec Bowl
-
Mission Brewery
-
Naval Training Center San Diego
-
Spruce Street Suspension Bridge

Runway info

Runway 6 / 24
 length1494m (4902ft)
 bearing81° / 261°
 width46m (150ft)
 surfaceasphalt
 displ threshold93m (305ft) / 0m (0ft)
 blast zone94m (308ft) / 61m (200ft)

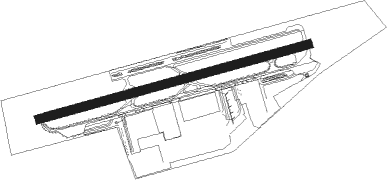

Airport layout


Taxiway locations

 A  A6  N
Parking locations

 Main  North  Palomar  Pinnacle  Tower  Transient

Nearby beacons

codeidentifierdistbearingfrequency
OCNOCEANSIDE VORTAC9.9308°115.30
NFGCAMP PENDLETON (OCEANSIDE TACAN10.5322°111.80
NKXMIRAMAR (SAN DIEGO) TACAN16.6156°109.60
MZBMISSION BAY (SAN DIEGO) VORTAC20.9172°117.80
NZYNORTH ISLAND (SAN DIEGO) TACAN25.7172°117
PGYPOGGI (SAN DIEGO) VORTAC34.4150°116.45
JLIJULIAN VORTAC34.589°114
NRSIMPERIAL BEACH TACAN34.8164°109.20
TIJTIJUANA VOR/DME38.8151°116.50
HDFHOMELAND (RIVERSIDE) VOR39.18°113.40
ELBEL TORO (SANTA ANA) VOR/DME40.1320°117.20
RIVMARCH (RIVERSIDE) TACAN46.7360°113
PDZPARADISE (ONTARIO) VORTAC49.1342°112.20
RALRIVERSIDE VOR50.4348°112.40
SLISEAL BEACH (LOS ALAMITOS) VORTAC55.5310°115.70
SBPETIS (SAN BERNARDINO) NDB55.9354°397
PSPPALM SPRINGS VORTAC61.349°115.50
POMPOMONA VORTAC62.6332°110.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06
 CWARD256mi310°
 PADRZ2105mi313°
RW24
 CWARD256mi310°
 PADRZ2105mi313°

STAR starting pointsdistanceinbound heading
RW06
 LEGOZ269.5104°
RW24
 LEGOZ269.5104°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06-YPACIF (108°)PACIF
DOOGR (14mi, 119°) 4400ft
FLEEE (6mi, 119°) 2500ft
 RNAVFLEEE 2500ft
SWWAG (3mi, 81°) 1700ft
KCRQ (5mi, 82°) 386ft
(6760mi, 106°) 731ft
TIZIE (6768mi, 286°) 3000ft
TIZIE (turn)
RW06-ZJLI (269°)JLI
ROBNN (26mi, 277°) 7300ft
TRRIP (9mi, 278°) 5000ft
HOLVI (5mi, 261°) 3600ft
SWWAG (6mi, 167°) 1700ft
RW06-ZPACIF (108°)PACIF 7000ft
DOOGR (14mi, 119°) 4400ft
FLEEE (6mi, 119°) 2500ft
SWWAG (3mi, 81°) 1700ft
RW06-ZTANNR (198°)TANNR 9000ft
PASME (12mi, 193°) 6000ft
TRRIP (5mi, 234°) 5000ft
HOLVI (5mi, 261°) 3600ft
SWWAG (6mi, 167°) 1700ft
RW06-ZTRM (246°)TRM
ZASOG (30mi, 235°) 9600ft
DEGLE (25mi, 265°) 7400ft
TRRIP (9mi, 257°) 5000ft
HOLVI (5mi, 261°) 3600ft
SWWAG (6mi, 167°) 1700ft
 RNAVSWWAG 1700ft
KCRQ (5mi, 82°) 386ft
(6760mi, 106°) 731ft
TIZIE (6768mi, 286°) 3000ft
TIZIE (turn)
RW24-XOCN (128°)OCN
VISTA (9mi, 97°) 5300ft
JIDOV (10mi, 67°) 5300ft
FEHPY (8mi, 129°) 5300ft
KANEC (4mi, 237°) 4300ft
 RNAVKANEC 4300ft
JABAL (6mi, 261°) 3100ft
GUGEC (3mi, 261°) 2040ft
ZUXAX (2mi, 261°) 1220ft
KCRQ (3mi, 259°) 380ft
(6760mi, 106°) 527ft
IBUGE (6771mi, 286°) 2000ft
IBUGE (turn)
RW24-YJLI (269°)JLI
DUNBY (14mi, 252°) 7900ft
KANEC (10mi, 306°) 4300ft
RW24-YTRM (246°)TRM
ZASOG (30mi, 235°) 11000ft
URIJI (9mi, 248°) 7900ft
GICEP (7mi, 247°) 6100ft
KANEC (4mi, 261°) 4300ft
 RNAVKANEC 4300ft
JABAL (6mi, 261°) 3100ft
GUGEC (3mi, 261°) 2040ft
ZUXAX (2mi, 261°) 1220ft
KCRQ (3mi, 259°) 380ft
(6760mi, 106°) 528ft
IBUGE (6771mi, 286°) 2000ft
IBUGE (turn)
RW24-ZICUGA (280°)ICUGA
CARCA (7mi, 308°) 3600ft
JUBIM (5mi, 271°) 2400ft
RW24-ZJLI (269°)JLI
VIVOF (12mi, 271°) 7200ft
GAETS (4mi, 270°) 5200ft
CARCA (7mi, 271°) 3600ft
JUBIM (5mi, 271°) 2400ft
RW24-ZOCN (128°)OCN
ZAVAN (7mi, 94°) 5000ft
PALCI (5mi, 89°) 4100ft
EGIVE (4mi, 134°) 3200ft
JUBIM (3mi, 229°) 2400ft
RW24-ZTANNR (198°)TANNR
WAGAV (13mi, 165°) 5500ft
EGIVE (5mi, 191°) 3200ft
JUBIM (3mi, 229°) 2400ft
RW24-ZTRM (246°)TRM
ZASOG (30mi, 235°) 10000ft
URIJI (9mi, 248°) 8000ft
COGID (9mi, 248°) 5400ft
CARCA (6mi, 254°) 3600ft
JUBIM (5mi, 271°) 2400ft
 RNAVJUBIM 2400ft
KCRQ (6mi, 260°) 381ft
IBUGE (11mi, 261°) 2000ft
IBUGE (turn)
