Airports for X-Plane

Lake Charles - Chennault Intl

Airport details

CountryUnited States of America
StateLouisiana
RegionK4
MunicipalityLake Charles
Elevation17ft (5m)
TimezoneGMT -6
Coordinates30.21058, -93.14320
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCWF
IATA codeCWF
FAA codeCWF

Communication

Chennault Intl AWOS 3120.000
Chennault Intl CTAF124.200
Chennault Intl UNICOM122.950
Chennault Intl Ground Control121.650
Chennault Intl Tower124.200
Chennault Intl LAKE CHARLES Approach119.800
Chennault Intl LAKE CHARLES Departure119.800

Approach frequencies

ILS-cat-IRW15110.718.00mi
3° GSRW15110.718.00mi
Nearby Points of Interest:
Muller's Department Store
-
Kansas City Southern Depot
-
Jennings Carnegie Public Library
-
Elton United Methodist Church
-
Istre Cemetery Grave Houses
-
Allen Parish Courthouse
-
Bank of Gueydan

Runway info

Runway 15 / 33
 length3268m (10722ft)
 bearing151° / 331°
 width61m (200ft)
 surfaceconcrete
 blast zone0m (0ft) / 123m (404ft)

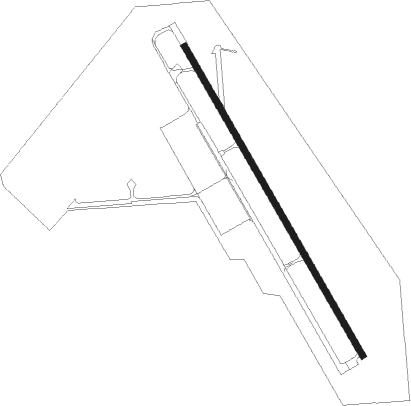

Airport layout


Taxiway locations

 A  B  C  D  G
Parking locations

 New  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LCHLAKE CHARLES VORTAC4.5151°113.40
CWMOSSY (LAKE CHARLES) NDB6.3331°418
AURSULFY (SULPHUR) NDB14.4268°278
DXBDE RIDDER NDB34341°385
ECYDURALDE (EUNICE) NDB41.663°263
BPTBEAUMONT VOR/DME48253°114.50
LLAWHITE LAKE VOR/DME51.8125°110.40
FXUPOLK (FORT POLK) VOR54.2355°108.40
SBISABINE PASS VOR/DME56.1240°115.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15HATHA (257°)HATHA
EPOYO (24mi, 288°) 2600ft
CEVKU (6mi, 246°) 2000ft
RW15LCH (331°)LCH
CEVKU (17mi, 331°) 2000ft
CEVKU (turn) 2000ft
RW15STRUT (81°)STRUT
DUREC (14mi, 34°) 2000ft
CEVKU (6mi, 69°) 2000ft
 RNAVCEVKU 2000ft
DAYAG (6mi, 151°) 1900ft
KCWF (7mi, 151°) 69ft
(5568mi, 108°) 216ft
FERDU (5563mi, 288°) 2000ft
FERDU (turn)
RW33CIPDA (6°)CIPDA
FERDU (10mi, 46°) 2000ft
RW33FERDU (331°)FERDU 2000ft
RW33GUSTI (316°)GUSTI
FERDU (8mi, 294°) 2000ft
 RNAVFERDU 2000ft
GOGNE (6mi, 331°) 1700ft
KCWF (6mi, 331°) 69ft
CEVKU (13mi, 331°) 2000ft
CEVKU (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
