Airports for X-Plane

Decorah - Decorah Municipal

Airport details

CountryUnited States of America
StateIowa
RegionK3
AirspaceMinneapolis Ctr
MunicipalityDecorah
Elevation1157ft (353m)
TimezoneGMT -6
Coordinates43.27550, -91.73939
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKDEH
IATA codeDEH
FAA codeDEH

Communication

Decorah Municipal Decorah Mnui AWOS120.925
Decorah Municipal Decorah Muni CTAF122.800
Decorah Municipal Decorah Muni Tower Freq122.800

Runway info

Runway 11 / 29
 length1218m (3996ft)
 bearing109° / 289°
 width23m (75ft)
 surfaceconcrete

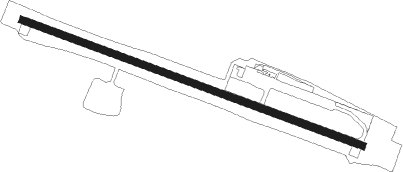

Airport layout


Parking locations

 Gate  Ramp  Tie

Nearby beacons

codeidentifierdistbearingfrequency
UKNDME8.889°116.60
ODINODINE VORTAC4023°117.90
LSECROSSE DME41.739°108.40
IYCHUKK (CHARLES CITY) NDB44.1262°417
RSTROCHESTER VOR/DME48.1301°112
LSMINDI (LA CROSSE) NDB48.433°272
IIBWAPSIE (INDEPENDENCE) NDB50.2194°206
ALOWATERLOO VOR/DME52223°112.20

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11FOYDE (83°)FOYDE
JEBAR (25mi, 71°) 3000ft
RW11JEBAR (108°)JEBAR 3000ft
RW11LEFTY (158°)LEFTY
JEBAR (18mi, 198°) 3000ft
 RNAVJEBAR 3000ft
DUCAV (6mi, 108°) 2900ft
PAYER (3mi, 108°) 1980ft
KDEH (3mi, 109°) 1186ft
(5481mi, 115°) 1405ft
FAYNE (5471mi, 295°) 3200ft
FAYNE (turn)
RW29FAYNE (289°)FAYNE 2900ft
 RNAVFAYNE 2900ft
AVELE (7mi, 289°) 2900ft
KUCCE (2mi, 289°) 2000ft
KDEH (2mi, 289°) 1198ft
(5481mi, 115°) 1800ft
FAYNE (5471mi, 295°) 2900ft
FAYNE (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
