Airports for X-Plane

Del Rio - Laughlin Afb

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalityVal Verde County
Elevation1081ft (329m)
TimezoneGMT -6
Coordinates29.35460, -100.77931
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKDLF
IATA codeDLF
FAA codeDLF

Communication

Laughlin AFB Clearance DEL120.500
Laughlin AFB Tower125.200
Laughlin AFB DEL RIO Approach119.600
Laughlin AFB DEL RIO Departure119.600

Approach frequencies

ILS-cat-IRW13C110.318.00mi
ILS-cat-IRW31C108.918.00mi
3° GSRW13C110.318.00mi
3° GSRW31C108.918.00mi
Nearby Points of Interest:
Fort Clark, Texas
-
Fate Bell Shelter
-
Lower Pecos Canyonlands Archeological District
-
Seminole Canyon District

Runway info

Runway 13R / 31L
 length2059m (6755ft)
 bearing132° / 312°
 width46m (150ft)
 surfaceasphalt
Runway 13C / 31C
 length2701m (8862ft)
 bearing132° / 312°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 13L / 31R
 length2537m (8323ft)
 bearing132° / 312°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

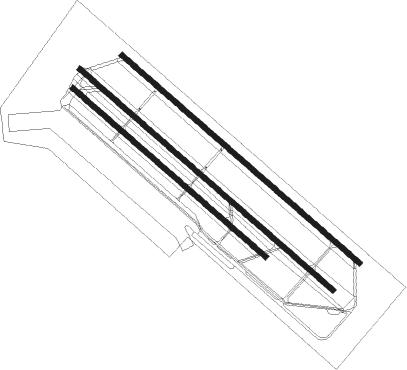

Airport layout


Taxiway locations

 31C  31L  31R  A  B  C  D  E
 F  G
Parking locations

 Ramp  TEST

Nearby beacons

codeidentifierdistbearingfrequency
DLFLAUGHLIN (DEL RIO) VORTAC0.550°114.40
BRXLA FONDA RANCH (BRACKETVILLE) NDB11.9133°269
DRKOTTI (DEL RIO) NDB12.3292°335
PFOSPOFFORD NDB22.3121°356
PNGPIEDRAS VOR/DME45.2162°113.60
RSGROCKSPRINGS VORTAC46.836°114.55
CPZCHAPARROSA RANCH NDB50.1121°385

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW13C
 HINKO155mi42°
 DLF118mi300°
RW13L
 HINKO155mi42°
 DLF118mi300°
RW13R
 DLF118mi300°
RW31C
 HINKO155mi42°
 DLF118mi300°
RW31L
 DLF118mi300°
RW31R
 HINKO155mi42°
 DLF118mi300°

STAR starting pointsdistanceinbound heading
ALL
 WEBOX450.5231°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13CSHRRY (132°)SHRRY 3000ft
CHHLE (6mi, 131°) 3000ft
 RNAVCHHLE 3000ft
NACHO (8mi, 132°) 2200ft
KDLF (4mi, 135°) 1117ft
FILTO (9mi, 130°) 3000ft
FILTO (turn) 12000ft
RW31CDOVIE (311°)DOVIE 3000ft
TWEET (6mi, 312°) 3000ft
 RNAVTWEET 3000ft
TONNR (8mi, 312°) 2200ft
KDLF (4mi, 309°) 1119ft
(5969mi, 106°) 1420ft
JUSIS (5974mi, 286°) 3000ft
JUSIS (turn) 12000ft
