Airports for X-Plane

The Dalles - Columbia Gorge Dalles Regl

Airport details

CountryUnited States of America
StateWashington
RegionK1
AirspaceSeattle Ctr
MunicipalityDallesport
Elevation247ft (75m)
TimezoneGMT -8
Coordinates45.61935, -121.16827
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKDLS
IATA codeDLS
FAA codeDLS

Communication

Columbia Gorge Dalles Regl ASOS135.175
Columbia Gorge Dalles Regl CTAF/UNICOM123.000

Approach frequencies

LDARW25109.3518.00mi

Runway info

Runway 13 / 31
 length1554m (5098ft)
 bearing135° / 315°
 width30m (100ft)
 surfaceasphalt
 displ threshold61m (200ft) / 0m (0ft)
 blast zone53m (174ft) / 45m (148ft)
Runway 7 / 25
 length1415m (4642ft)
 bearing89° / 269°
 width30m (100ft)
 surfaceasphalt
 displ threshold134m (440ft) / 60m (197ft)

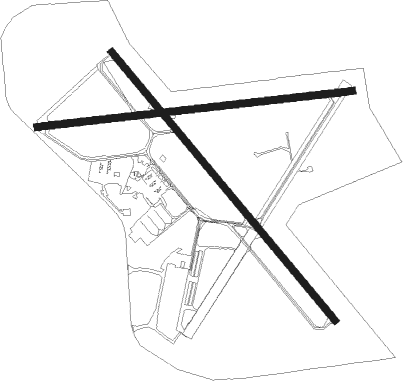

Airport layout


Taxiway locations

 13  25  31  7  A  A1  B  B1
 B2  B3  B4  C  D
Parking locations

 West

Nearby beacons

codeidentifierdistbearingfrequency
LTJKLICKITAT (THE DALLES) VOR/DME6.336°112.30
YKMYAKIMA VORTAC64.537°116

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RWNVACEVBI (290°)CEVBI
SURDE (6mi, 264°) 5500ft
FEDUM (6mi, 264°) 4500ft
RWNVAFEDUM (330°)FEDUM 4500ft
RWNVAKUKTE (357°)KUKTE
FEDUM (8mi, 34°) 4500ft
 RNAVFEDUM 4500ft
GOCEN (6mi, 314°) 3000ft
HEMAB (1mi, 352°) 2120ft
JALEL (3mi, 352°) 2100ft
(6680mi, 111°) 2100ft
CEVBI (6669mi, 291°) 4500ft
CEVBI (turn)
