Edwards - Edwards Afb Rogers Dry Lake
Airport details
| Country | United States of America |
| State | California |
| Region | K2 |
| Airspace | Los Angeles Ctr |
| Municipality | CAL Fire Kern County |
| Elevation | 2310ft (704m) |
| Timezone | GMT -8 |
| Coordinates | 34.94877, -117.88504 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KEDW |
| IATA code | EDW |
| FAA code | EDW |
Communication
| Edwards AFB Rogers Dry Lake Ground Control | 121.800 |
| Edwards AFB Rogers Dry Lake Tower | 120.700 |
| Edwards AFB Rogers Dry Lake SPORT Approach/Departure | 132.750 |
Approach frequencies
| ILS-cat-I | RW23L | 110.1 | 18.00mi |
| 2.5° GS | RW23L | 110.1 | 18.00mi |
Nearby Points of Interest:
Rogers Dry Lake
-Last Chance Canyon
-Burro Schmidt Tunnel
-Tehachapi Railroad Depot
-Courtlandt Gross House

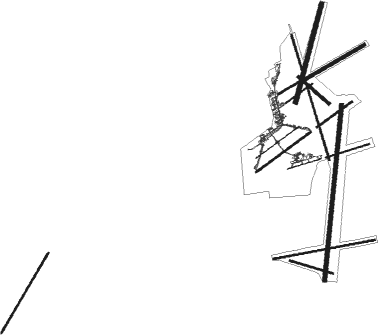

Runway info
Runway 02 / 20  | ||
| length | 6429m (21093ft) | |
| bearing | 40° / 220° | |
| width | 91m (300ft) | |
| surface | dry lakebed | |
| Runway 04L / 22R | ||
| length | 3654m (11988ft) | |
| bearing | 63° / 243° | |
| width | 44m (145ft) | |
| surface | asphalt | |
| blast zone | 255m (837ft) / 255m (837ft) | |
| Runway 04R / 22L | ||
| length | 4576m (15013ft) | |
| bearing | 63° / 243° | |
| width | 91m (300ft) | |
| surface | concrete | |
| blast zone | 255m (837ft) / 255m (837ft) | |
| Runway 06 / 24 | ||
| length | 2435m (7989ft) | |
| bearing | 79° / 259° | |
| width | 15m (50ft) | |
| surface | concrete | |
| blast zone | 61m (200ft) / 255m (837ft) | |
| Runway 12R / 30L | ||
| length | 2818m (9245ft) | |
| bearing | 130° / 310° | |
| width | 98m (320ft) | |
| surface | dry lakebed | |
| Runway 12L / 30R | ||
| length | 2818m (9245ft) | |
| bearing | 130° / 310° | |
| width | 99m (325ft) | |
| surface | dry lakebed | |
| Runway 15 / 33 | ||
| length | 8882m (29140ft) | |
| bearing | 165° / 345° | |
| width | 91m (300ft) | |
| surface | dry lakebed | |
| Runway 18C / 36C | ||
| length | 7055m (23146ft) | |
| bearing | 203° / 23° | |
| width | 96m (315ft) | |
| surface | dry lakebed | |
| Runway 18L / 36R | ||
| length | 7054m (23143ft) | |
| bearing | 203° / 23° | |
| width | 96m (315ft) | |
| surface | dry lakebed | |
| Runway 18R / 36L | ||
| length | 7054m (23143ft) | |
| bearing | 203° / 23° | |
| width | 96m (315ft) | |
| surface | dry lakebed | |
| Runway 05L / 23R | ||
| length | 6755m (22162ft) | |
| bearing | 68° / 248° | |
| width | 96m (315ft) | |
| surface | dry lakebed | |
| displ threshold | 2189m (7182ft) / 0m (0ft) | |
| Runway 05R / 23L | ||
| length | 4563m (14970ft) | |
| bearing | 68° / 248° | |
| width | 96m (315ft) | |
| surface | dry lakebed | |
| Runway 06L / 24R | ||
| length | 2196m (7205ft) | |
| bearing | 63° / 243° | |
| width | 75m (246ft) | |
| surface | dry lakebed | |
| Runway 17 / 35 | ||
| length | 11950m (39206ft) | |
| bearing | 192° / 12° | |
| width | 274m (900ft) | |
| surface | dry lakebed | |
| Runway 07 / 25 | ||
| length | 7048m (23123ft) | |
| bearing | 85° / 265° | |
| width | 91m (300ft) | |
| surface | dry lakebed | |
| Runway 09 / 27 | ||
| length | 3048m (10000ft) | |
| bearing | 108° / 288° | |
| width | 91m (300ft) | |
| surface | dry lakebed | |
| Runway 06C / 24C | ||
| length | 3099m (10167ft) | |
| bearing | 80° / 260° | |
| width | 64m (210ft) | |
| surface | dry lakebed | |
| Runway 04C / 22C | ||
| length | 2925m (9596ft) | |
| bearing | 63° / 243° | |
| width | 91m (300ft) | |
| surface | dry lakebed | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| EDW | EDWARDS VORTAC | 7.7 | 78° | 116.40 |
| PMD | PALMDALE VORTAC | 21 | 209° | 114.50 |
| VCV | VICTORVILLE VOR/DME | 32.4 | 126° | 109.05 |
| LHS | LAKE HUGHES VORTAC | 37.6 | 249° | 114.35 |
| NID | CHINA LAKE TACAN | 45.4 | 15° | 111.60 |
| GMN | GORMAN VORTAC | 48.8 | 262° | 116.10 |
| POM | POMONA VORTAC | 52.4 | 174° | 110.40 |
| VNY | VAN NUYS VOR/DME | 52.8 | 220° | 113.10 |
| SB | PETIS (SAN BERNARDINO) NDB | 59.4 | 150° | 397 |
| FIM | FILLMORE VORTAC | 60.7 | 239° | 112.50 |
| SMO | SANTA MONICA VOR/DME | 63 | 211° | 110.80 |
| RAL | RIVERSIDE VOR | 63.4 | 156° | 112.40 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05R | FLYTE (28°) | FLYTE 8200ft MOTNE (11mi, 348°) 5500ft |
| RW05R | PNCHO (58°) | PNCHO 8200ft MOTNE (12mi, 63°) 5500ft |
| RW05R | TESST (83°) | TESST 8200ft MOTNE (11mi, 122°) 5500ft |
| RNAV | MOTNE 5500ft YAYGR (6mi, 63°) 3900ft KEDW (8mi, 47°) 2353ft (6759mi, 107°) 2711ft KIIRK (6752mi, 287°) 5700ft KIIRK (turn) 8200ft | |
| RW23L | SONIQ (247°) | SONIQ 8500ft HAARS (12mi, 243°) 6100ft |
| RW23L | STLTH (273°) | STLTH 8500ft HAARS (11mi, 300°) 6100ft |
| RW23L | XPLNE (221°) | XPLNE 8500ft HAARS (11mi, 172°) 6100ft |
| RNAV | HAARS 6100ft KIIRK (6mi, 243°) 4500ft KEDW (7mi, 259°) 2333ft (6759mi, 107°) 2660ft LDFRD (6766mi, 286°) 5700ft LDFRD (turn) 8500ft |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
