El Dorado - Captain Jack Thomas El Dorado
Airport details
| Country | United States of America |
| State | Kansas |
| Region | K3 |
| Airspace | Kansas City Ctr |
| Municipality | El Dorado |
| Elevation | 1375ft (419m) |
| Timezone | GMT -6 |
| Coordinates | 37.77411, -96.81772 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KEQA |
| IATA code | EDK |
| FAA code | EQA |
Communication
| Captain Jack Thomas EL Dorado CTAF/UNICOM | 122.800 |
| Captain Jack Thomas EL Dorado WICHITA Approach/Departure | 134.800 |
Nearby Points of Interest:
Butler County Courthouse
-El Dorado Carnegie Library
-Bucher Bridge
-Polecat Creek Bridge
-Fairmount Congregational Church
-Administration Building
-Governor L. D. Lewelling House
-Wichita Scottish Rite Center
-Orpheum Theatre
-Arkansas Valley Lodge No. 21, Prince Hall Masons
-United States Post Office and Federal Building
-Eureka Carnegie Library
-Eureka Atchison, Topeka and Santa Fe Railroad Depot
-Wichita City Carnegie Library Building
-Riverview Apartments
-Engine House No. 6
-Robertson House (Eureka, Kansas)
-Crocker Ranch
-Peabody Downtown Historic District
-W.H. Morgan House
-Peabody Historical Library Museum
-Peabody Township Library
-Peabody City Park
-Harvey House (Florence, Kansas)
-Warkentin House

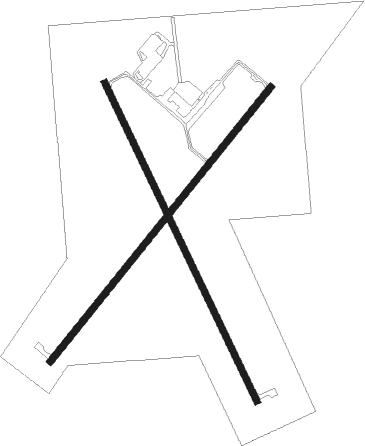

Runway info
Runway 15 / 33  | ||
| length | 1282m (4206ft) | |
| bearing | 154° / 334° | |
| width | 23m (75ft) | |
| surface | concrete | |
| Runway 4 / 22 | ||
| length | 1281m (4203ft) | |
| bearing | 50° / 230° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| IAB | MC CONNELL (WICHITA) TACAN | 23.2 | 251° | 116.50 |
| CA | HARVS (NEWTON) NDB | 31 | 309° | 395 |
| IC | PICHE (WICHITA) NDB | 32.5 | 253° | 332 |
| ICT | WICHITA VORTAC | 36.4 | 268° | 113.80 |
| EMP | EMPORIA VORTAC | 44.6 | 53° | 112.80 |
| HRU | HERINGTON NDB | 55.1 | 0° | 407 |
| PN | PONCA (PONCA CITY) NDB | 58.5 | 197° | 515 |
| SL | FLORY (SALINA) NDB | 67 | 318° | 344 |
| BV | DEWIE (BARTLESVILLE) NDB | 67.9 | 139° | 201 |
| BVO | BARTLESVILLE VOR/DME | 68.1 | 140° | 117.90 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW04 | CERVK (50°) | CERVK 3000ft |
| RW04 | INDIC (118°) | INDIC ASOSE (13mi, 165°) 3000ft CERVK (6mi, 127°) 3000ft |
| RW04 | OBDAW (288°) | OBDAW ENBEW (17mi, 252°) 3100ft CERVK (6mi, 307°) 3000ft |
| RNAV | CERVK 3000ft JIKAK (5mi, 50°) 3000ft WINUS (4mi, 50°) 1860ft KEQA (2mi, 51°) 1416ft (5729mi, 111°) 1576ft SMALE (5721mi, 291°) 3100ft SMALE (turn) | |
| RW15 | GOPHR (154°) | GOPHR 3100ft |
| RW15 | INDIC (118°) | INDIC GOPHR (10mi, 88°) 3100ft |
| RW15 | UBWIK (254°) | UBWIK ZURED (17mi, 283°) 3100ft GOPHR (7mi, 253°) 3100ft |
| RNAV | GOPHR 3100ft ORWOR (5mi, 154°) 3000ft HUBBN (3mi, 154°) 2100ft KEQA (3mi, 154°) 1413ft (5729mi, 111°) 1623ft BSHWD (5726mi, 291°) 3100ft BSHWD (turn) | |
| RW22 | LASKI (176°) | LASKI SMALE (11mi, 130°) 3100ft |
| RW22 | SMALE (230°) | SMALE 3100ft |
| RW22 | UBWIK (254°) | UBWIK SMALE (13mi, 270°) 3100ft |
| RNAV | SMALE 3100ft EGIYU (5mi, 230°) 3000ft KEQA (5mi, 230°) 1418ft (5729mi, 111°) 1578ft CERVK (5736mi, 291°) 3000ft CERVK (turn) | |
| RW33 | BSHWD (334°) | BSHWD 3100ft |
| RW33 | CAWBU (59°) | CAWBU ATVEW (22mi, 78°) 3100ft BSHWD (5mi, 73°) 3100ft |
| RW33 | OBDAW (288°) | OBDAW IFGAK (5mi, 246°) 3100ft BSHWD (5mi, 253°) 3100ft |
| RNAV | BSHWD 3100ft WAXFY (5mi, 334°) 3000ft WEXOS (3mi, 334°) 1960ft KEQA (2mi, 334°) 1419ft (5729mi, 111°) 1579ft GOPHR (5732mi, 291°) 3100ft GOPHR (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
