Airports for X-Plane

Grand Canyon - Grand Canyon National Park

Airport details

CountryUnited States of America
StateArizona
RegionK2
AirspaceLos Angeles Ctr
MunicipalityTusayan
Elevation6604ft (2013m)
TimezoneGMT -7
Coordinates35.96210, -112.13518
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGCN
IATA codeGCN
FAA codeGCN

Communication

Grand Canyon National Park ASOS124.300
Grand Canyon National Park CTAF119.000
Grand Canyon National Park UNICOM122.950
Grand Canyon National Park Ground Control121.900
Grand Canyon National Park CANYON Tower119.000
Grand Canyon National Park Departure133.000

Approach frequencies

ILS-cat-IRW03108.918.00mi
3° GSRW03108.918.00mi

Runway info

Runway 3 / 21
 length2743m (8999ft)
 bearing47° / 227°
 width46m (152ft)
 surfaceasphalt

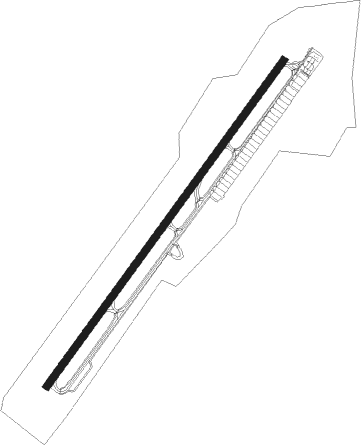

Airport layout


Taxiway locations

 B  C  D  E  F  G
Parking locations

 Carrier  GA  GCA  Grand  Maverick  Papillon  PARAGON  Private
 South  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
GCNGRAND CANYON VOR/DME0.5261°111.65
TBCTUBA CITY VORTAC43.180°113.50
FLGFLAGSTAFF VOR/DME53.8151°113.85
PGAPAGE VOR/DME6735°117.60
AZCCOLORADO CITY NDB73.3319°403

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW21
 GRAND427mi217°
 PARKS472mi257°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03BISOP (37°)BISOP
SAVRE (7mi, 4°) 10000ft
CARMS (9mi, 46°) 9000ft
RW03GCN (81°)GCN
CARMS (12mi, 225°) 9000ft
CARMS (turn) 9000ft
RW03GUCRU (77°)GUCRU
CARMS (8mi, 125°) 9000ft
 RNAVCARMS 9000ft
HAPLY (6mi, 46°) 8200ft
KGCN (7mi, 47°) 6591ft
(6472mi, 108°) 7000ft
CARMS (6482mi, 288°) 9000ft
CARMS (turn)
