Airports for X-Plane

Winter Haven - Winter Havens Gilbert

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityWinter Haven
Elevation145ft (44m)
TimezoneGMT -5
Coordinates28.06292, -81.75330
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGIF
IATA codeGIF
FAA codeGIF

Communication

Winter Havens Gilbert ASOS133.675
Winter Havens Gilbert CTAF/UNICOM123.050
Winter Havens Gilbert TAMPA Approach/Departure119.900
Winter Havens Gilbert TAMPA Approach/Departure120.650

Runway info

Runway 5 / 23
 length1527m (5010ft)
 bearing48° / 228°
 width30m (100ft)
 surfaceasphalt
Runway 11 / 29
 length1218m (3996ft)
 bearing102° / 282°
 width30m (100ft)
 surfaceasphalt

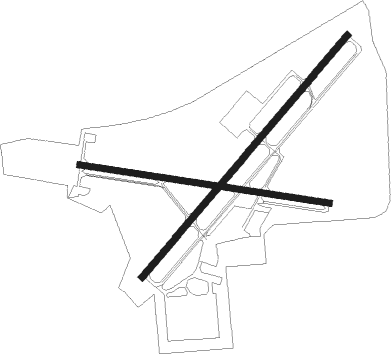

Airport layout


Parking locations

 ADMIN  FBO  HANGARS

Nearby beacons

codeidentifierdistbearingfrequency
LALLAKELAND VORTAC14.5254°116
ORHERNY (ORLANDO) NDB31.536°221
ORLORLANDO VORTAC36.341°112.20
TPCOSME (TAMPA) NDB40.9272°368
MCFMACDILL (TAMPA) TACAN42.1255°111
PIESAINT PETERSBURG VORTAC50.2261°116.40
PICAPOK(ST PETERSBURG-CLEARWATER NDB50.5266°360
SRQSARASOTA VOR/DME58.3231°117

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LAL (74°)LAL
BEZDU (7mi, 118°) 2000ft
 RNAVBEZDU 2000ft
RELNE (6mi, 48°) 1800ft
NOSTE (2mi, 48°) 980ft
KGIF (3mi, 48°) 192ft
(4968mi, 109°) 545ft
PLUMY (4989mi, 289°) 2000ft
PLUMY (turn)
RW11HOVOM (101°)HOVOM 6000ft
HOVOM (turn) 1900ft
RW11NURIY (123°)NURIY
HOVOM (5mi, 195°) 1900ft
RW11RIYDO (81°)RIYDO
HOVOM (5mi, 15°) 1900ft
 RNAVHOVOM 1900ft
JOSIR (6mi, 102°) 1800ft
OVIKE (2mi, 102°) 980ft
KGIF (3mi, 101°) 188ft
(4968mi, 109°) 395ft
RAVYO (4957mi, 289°) 2600ft
RAVYO (turn)
