Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

air terminal transit capital airplane stopover heliport consulate non-towered airport hangar station air traffic control tarmac immigration aircraft carrier asphalt taxi train station outskirts southwest train

Airports for X-Plane

White Plains - Westchester Co

Airport details

CountryUnited States of America
StateNew York
RegionK6
AirspaceBoston Ctr
MunicipalityTown/Village of Harrison
Elevation437ft (133m)
TimezoneGMT -5
Coordinates41.06695, -73.70757
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKHPN
IATA codeHPN
FAA codeHPN

Communication

Westchester Co ATIS133.800
Westchester Co UNICOM122.950
Westchester Co CTAF118.575
Westchester Co Clearance DEL127.250
Westchester Co Ground Control121.825
Westchester Co Tower118.575
Westchester Co NEW YORK Approach126.400
Westchester Co NEW YORK Approach120.800
Westchester Co NEW YORK Approach124.650
Westchester Co NEW YORK Departure120.550

Approach frequencies

ILS-cat-IIRW16109.718.00mi
ILS-cat-IRW34109.718.00mi
3° GSRW16109.718.00mi
3° GSRW34109.718.00mi

Runway info

Runway 11 / 29
 length1354m (4442ft)
 bearing99° / 279°
 width46m (151ft)
 surfaceasphalt
 displ threshold0m (0ft) / 395m (1296ft)
Runway 16 / 34
 length1997m (6552ft)
 bearing143° / 323°
 width46m (151ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

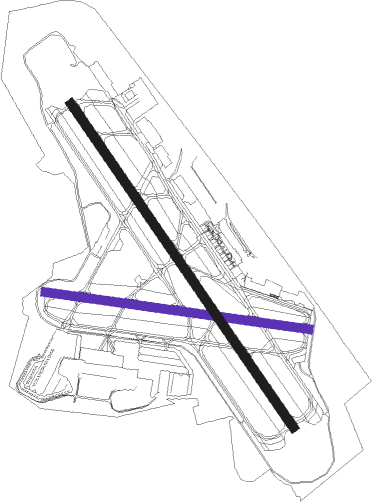

Airport layout - runway 11 / 29


Taxiway locations

 A  B  C  D  E  F  G  J
 K  L  M  N
Parking locations

 FlexJet  GA  Gate  Gen  Hanger  Million  NetJets  Pepsi
 Ross  Signature

Nearby beacons

codeidentifierdistbearingfrequency
CMKCARMEL VOR/DME1431°116.60
LGALA GUARDIA (NEW YORK) VOR/DME18.5210°113.10
FRFRIKK (FARMINGDALE) NDB20.2142°407
TEBTETERBORO VOR/DME20.7238°108.40
DPKDEER PARK VOR/DME24.6124°117.70
TETORBY (TETERBORO) NDB24.9238°214
JFKKENNEDY (NEW YORK) VOR/DME26.2188°115.90
BDRBRIDGEPORT VOR/DME26.981°108.80
CRICANARSIE VOR/DME28.5202°112.30
MMMOREE (MORRISTOWN) NDB30.5253°392
SKUSTANWYCK (NEWBURGH) NDB31.5324°261
SWNEELY (NEWBURGH) NDB34.4309°335
IGNKINGSTON VOR/DME36.3349°117.60
SAXSPARTA VORTAC37.6270°115.70
CATCHATHAM NDB38.1246°254
HVNHAVEN DME38.977°109.80
CCCCALVERTON VOR/DME4299°117.20
PWLPAWLING (POUGHKEEPSIE) VOR/DME42.49°114.30
HUOHUGUENOT VOR/DME44.9291°116.10
COLCOLTS NECK VOR/DME49.8211°115.40
RBVROBBINSVILLE VORTAC63.1222°113.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW11
 HPN716mi147°
RW16
 HPN7, PROP116mi147°
RW29
 HPN716mi147°
RW34
 HPN716mi147°

STAR starting pointsdistanceinbound heading
ALL
 VALRE523.4155°
 NOBBI531.6180°
 RICED453.6294°
 BOUNO443.6340°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16-YCMK (211°)CMK
FODAK (7mi, 267°) 3600ft
BODRE (5mi, 246°) 2700ft
RW16-YSAX (90°)SAX
VOLLU (26mi, 77°) 3500ft
BODRE (7mi, 76°) 2700ft
 RNAVBODRE 2700ft
CZIMR (6mi, 142°) 2000ft
IFADY (2mi, 143°) 1440ft
KHPN (4mi, 143°) 494ft
(4672mi, 119°) 689ft
IKEWI (4669mi, 299°)
KASYR (7mi, 58°)
CMK (12mi, 348°) 2300ft
CMK (turn)
RW16-ZALIXX (250°)ALIXX
CUFDO (9mi, 277°) 3000ft
EZHED (5mi, 277°) 2500ft
CZIMR (5mi, 222°) 2000ft
RW16-ZBASYE (162°)BASYE
BODRE (7mi, 196°) 2700ft
CZIMR (6mi, 142°) 2000ft
RW16-ZCMK (211°)CMK
FODAK (7mi, 267°) 2700ft
IKAXE (6mi, 202°) 2000ft
CZIMR (2mi, 171°) 2000ft
RW16-ZVOLLU (114°)VOLLU
WALOB (4mi, 98°) 2400ft
XCESS (4mi, 98°) 2000ft
CZIMR (2mi, 118°) 2000ft
 RNAVCZIMR 2000ft
KHPN (5mi, 143°) 494ft
JIRUN (5mi, 142°)
KIYBE (9mi, 70°)
CMK (14mi, 334°) 3000ft
CMK (turn)
RW34-YBDR (261°)BDR
DABVE (12mi, 242°) 3000ft
TUGME (9mi, 243°) 3000ft
JETAX (5mi, 246°) 2000ft
RW34-YHAARP (247°)HAARP
MOISE (5mi, 121°) 3000ft
TUGME (6mi, 179°) 3000ft
JETAX (5mi, 246°) 2000ft
RW34-YRYMES (235°)RYMES
MOISE (8mi, 168°) 3000ft
TUGME (6mi, 179°) 3000ft
JETAX (5mi, 246°) 2000ft
 RNAVJETAX 2000ft
ISLET (7mi, 323°) 1400ft
KHPN (4mi, 322°) 435ft
(4672mi, 119°) 723ft
HEVAB (4675mi, 299°)
CMK (12mi, 49°) 2300ft
CMK (turn)
RW34-ZCMK (211°)CMK
NIDAE (5mi, 184°) 2500ft
HAARP (5mi, 184°) 2000ft
 RNAVHAARP 2000ft
IKILY (3mi, 141°) 2000ft
KIBGE (6mi, 246°) 1400ft
KHPN (3mi, 322°) 440ft
HEVAB (4mi, 323°)
FOXEK (8mi, 26°)
CMK (6mi, 75°) 3000ft
CMK (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOUNO4ALIXXVHFleft108 (288)°< 17999ft1.0min timedICAO rules
BOUNO4DPKNDBright207 (27)°< 17999ft1.0min timedICAO rules
NOBBI5CMKNDBleft16 (196)°< 17999ft1.0min timedICAO rules
NOBBI5CRALYVHFleft44 (224)°< 17999ft1.0min timed210
NOBBI5NOBBIVHFleft356 (176)°< 17999ft1.0min timedICAO rules
NOBBI5RKANDBleft313 (133)°18000ft - 45000ftDME 10.0miICAO rules
RICED4ALIXXVHFleft108 (288)°< 17999ft1.0min timedICAO rules
VALRE5IGNNDBright13 (193)°< 17999ft1.0min timedICAO rules
VALRE5VALREVHFright23 (203)°6001ft - 14000ft1.0min timed210
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
