Airports for X-Plane

Shirley - Brookhaven

Airport details

CountryUnited States of America
StateNew York
RegionK6
AirspaceBoston Ctr
MunicipalityTown of Brookhaven
Elevation81ft (25m)
TimezoneGMT -5
Coordinates40.82195, -72.86692
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKHWV
IATA codeWSH
FAA codeHWV

Communication

Brookhaven ASOS119.625
Brookhaven CTAF/UNICOM122.800
Brookhaven NEW YORK Approach/Departure118.000

Approach frequencies

ILS-cat-IRW06108.9518.00mi
3° GSRW06108.9518.00mi

Runway info

Runway 15 / 33
 length1287m (4222ft)
 bearing127° / 307°
 width46m (150ft)
 surfaceasphalt
Runway 6 / 24
 length1280m (4199ft)
 bearing53° / 233°
 width30m (100ft)
 surfaceasphalt

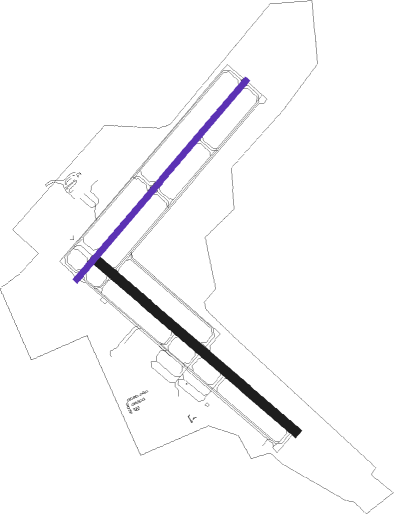

Airport layout - runway 6 / 24


Taxiway locations

 15  24  A  A2  B  B1  B2  B3
 B4  B5  C  C1  C2  C3  D
Parking locations

 GA  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
CCCCALVERTON VOR/DME7.132°117.20
FOKSUFFOLK CO (WESTHAMPTON B TACAN10.786°111
DPKDEER PARK VOR/DME19.9266°117.70
BDRBRIDGEPORT VOR/DME23.4323°108.80
HTOHAMPTON (EAST HAMPTON) VORTAC25.680°113.60
HVNHAVEN DME26.4358°109.80
FRFRIKK (FARMINGDALE) NDB28.1266°407
MADMADISON VOR/DME30.520°110.40
CMKCARMEL VOR/DME42.4303°116.60
JFKKENNEDY (NEW YORK) VOR/DME42.7258°115.90
GONGROTON VOR/DME47.858°110.85
HFDHARTFORD VOR/DME51.221°114.90
ORWNORWICH VOR/DME5950°110
PWLPAWLING (POUGHKEEPSIE) VOR/DME65.8322°114.30
IGNKINGSTON VOR/DME66.5311°117.60

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06DUDDA (25°)DUDDA 2000ft
PIRCE (6mi, 307°) 2000ft
RW06MCCAB (76°)MCCAB 2000ft
PIRCE (6mi, 127°) 2000ft
RW06PIRCE (54°)PIRCE 2000ft
 RNAVPIRCE 2000ft
TYCHO (6mi, 53°) 1700ft
EPARE (3mi, 53°) 780ft
KHWV (2mi, 57°) 121ft
(4632mi, 119°) 600ft
ISQAC (4630mi, 299°) 2000ft
ISQAC (turn)
RW15CCC (212°)CCC
LUYEN (8mi, 295°) 2000ft
JIDAB (5mi, 233°) 2000ft
 RNAVJIDAB 2000ft
HIVRI (6mi, 127°) 1400ft
KHWV (4mi, 125°) 112ft
CUVIN (6mi, 128°)
GUCEG (10mi, 23°)
CCC (5mi, 288°) 2000ft
CCC (turn)
RWNVABDR (143°)BDR
OCTAV (15mi, 112°) 2000ft
ARDIS (8mi, 127°) 2000ft
RWNVAHTO (260°)HTO
FRANQ (13mi, 256°) 2000ft
ARDIS (8mi, 307°) 2000ft
 RNAVARDIS 2000ft
WEENG (5mi, 233°) 1700ft
KOYEN (4mi, 233°) 288ft
(4631mi, 119°) 481ft
PIRCE (4638mi, 299°) 2000ft
PIRCE (turn)
