Airports for X-Plane

New York - John F Kennedy Intl

Airport details

CountryUnited States of America
StateNew York
RegionK6
AirspaceNew York Ctr
MunicipalityNew York County
Elevation13ft (4m)
TimezoneGMT -5
Coordinates40.64964, -73.81052
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKJFK
IATA codeJFK
FAA codeJFK

Communication

John F Kennedy Intl ATIS128.725
John F Kennedy Intl UNICOM122.950
John F Kennedy Intl Clearance DEL135.050
John F Kennedy Intl Ground Control121.650
John F Kennedy Intl Ground Control121.900
John F Kennedy Intl Ground Control125.050
John F Kennedy Intl KENNEDY Tower123.900
John F Kennedy Intl KENNEDY Tower119.100
John F Kennedy Intl NEW YORK Approach132.400
John F Kennedy Intl NEW YORK Approach123.700
John F Kennedy Intl NEW YORK Approach126.800
John F Kennedy Intl NEW YORK Approach127.400
John F Kennedy Intl NEW YORK Departure135.900
John F Kennedy Intl NEW YORK Departure123.700
John F Kennedy Intl NEW YORK Departure124.750
John F Kennedy Intl NEW YORK Departure134.350

Approach frequencies

ILS-cat-IIIRW04R109.518.00mi
ILS-cat-IIIRW22L110.918.00mi
ILS-cat-IIRW13L111.518.00mi
ILS-cat-IRW31L111.3518.00mi
ILS-cat-IRW22R109.518.00mi
ILS-cat-IRW31R111.518.00mi
ILS-cat-IRW04L110.918.00mi
3° GSRW13L111.518.00mi
3° GSRW31R111.518.00mi
3° GSRW31L111.3518.00mi
3° GSRW22R109.518.00mi
3° GSRW04R109.518.00mi
3° GSRW22L110.918.00mi
3° GSRW04L110.918.00mi
Nearby Points of Interest:
Worldport
-
TWA Flight Center
-
St. Monica's Church
-
Jamaica Savings Bank
-
La Casina
-
J. Kurtz and Sons Store Building
-
Jamaica Chamber of Commerce Building
-
United States Post Office
-
Ralph Johnson Bunche House
-
First Presbyterian Church of Far Rockaway
-
Cypress Hills National Cemetery
-
Trinity Chapel
-
75th Police Precinct Station House
-
Triboro Hospital for Tuberculosis
-
Far Rockaway Beach Bungalow Historic District
-
Cooper Avenue Row Historic District
-
Jackie Robinson House
-
75th Avenue-61st Street Historic District
-
Central Avenue Historic District
-
Summerfield Street Row Historic District
-
Parkway Theatre
-
Central Ridgewood Historic District
-
St. Paul's German Presbyterian Church and Cemetery

Runway info

Runway 13R / 31L
 length4421m (14505ft)
 bearing114° / 294°
 width61m (200ft)
 surfaceconcrete
 displ threshold623m (2044ft) / 995m (3264ft)
Runway 13L / 31R
 length3046m (9993ft)
 bearing114° / 294°
 width46m (151ft)
 surfaceasphalt
 displ threshold277m (909ft) / 314m (1030ft)
Runway 4L / 22R
 length3684m (12087ft)
 bearing38° / 218°
 width60m (197ft)
 surfaceconcrete
 displ threshold140m (459ft) / 1044m (3425ft)
Runway 4R / 22L
 length2562m (8406ft)
 bearing38° / 218°
 width61m (200ft)
 surfaceasphalt

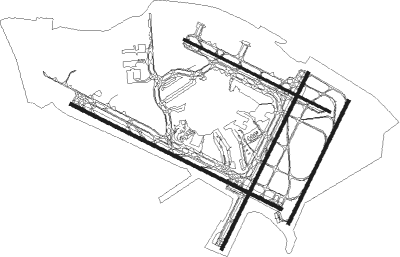

Airport layout


Taxiway locations

 A  B  C  CA  CB  CC  CD  CE
 CH  D  DA  DB  E  EA  EE  F
 FA  FB  G  GG  H  HB  J  JA
 JB  K  K1  K2  K3  K4  KB  KD
 KE  KF  KG  L  LA  LL  M  MA
 MB  MC  MD  N  NA  NB  NC  P
 PA  PB  PC  PD  PE  PF  Q  Q1
 Q2  Q3  Q4  Q5  Q6  R  S  SA
 SB  SC  SD  T  TA  TB  TT  U
 UA  V  VA  VV  W  WA  Y  YA
 Z  ZA
Parking locations

 Air  American  ARK  Cargo  Cathay  China  DelEx  Delta
 DHL  Emirates  Fedex  GA  H31  H32  H33  H34
 Korea  Laminar  LOT  Lufthansa  Maintenance  New  Prologis  RegEx
 Swissport  T1  T2  T3  T4  T5  T7  T8
 Virgin

Nearby beacons

codeidentifierdistbearingfrequency
JFKKENNEDY (NEW YORK) VOR/DME2113°115.90
CRICANARSIE VOR/DME4.4246°112.30
LGALA GUARDIA (NEW YORK) VOR/DME8.4337°113.10
TEBTETERBORO VOR/DME16.5308°108.40
FRFRIKK (FARMINGDALE) NDB16.769°407
TETORBY (TETERBORO) NDB17.3296°214
DPKDEER PARK VOR/DME24.574°117.70
COLCOLTS NECK VOR/DME25.8226°115.40
MMMOREE (MORRISTOWN) NDB27.5294°392
CATCHATHAM NDB28.7278°254
CMKCARMEL VOR/DME39.220°116.60
RBVROBBINSVILLE VORTAC41.2237°113.80
SAXSPARTA VORTAC41.5300°115.70
SBJSOLBERG VOR/DME42.6266°112.90
NELLAKEHURST NDB43.5221°396
BDRBRIDGEPORT VOR/DME43.753°108.80
NELLAKEHURST TACAN44.3222°111.80
GXUMC GUIRE (WRIGHTSTOWN) VORTAC52.6231°110.60
SWNEELY (NEWBURGH) NDB53.6333°335
SKUSTANWYCK (NEWBURGH) NDB53.8345°261
HVNHAVEN DME55.856°109.80
CYNCOYLE VORTAC57.5217°113.40
HUOHUGUENOT VOR/DME57.7314°116.10

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04 (ALL)
 DEEZZ573mi266°
RW13 (ALL)
 DEEZZ573mi266°
RW22 (ALL)
 DEEZZ573mi266°
RW31L
 SKORR410mi193°
 DEEZZ573mi266°
RW31R
 SKORR410mi193°
 DEEZZ573mi266°

STAR starting pointsdistanceinbound heading
ALL
 CAMRN4103.832°
 LENDY693.0108°
 IGN161.0179°
 PWL267.9191°
 ROBER281.3255°
RW04 (ALL)
 PARCH335.5267°
RW13 (ALL)
 PARCH335.5267°
RW22 (ALL)
 PARCH335.5267°
RW31 (ALL)
 PARCH335.5267°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13LCOVIR (47°)COVIR
ASALT (6mi, 38°) 3000ft
 RNAVASALT 3000ft
ZADUD (4mi, 38°) 3000ft
WIRKO (5mi, 39°) 1355ft
JEVNI (3mi, 79°) 313ft
KJFK (turn) 65ft
(4672mi, 119°) 413ft
FEDAR (4669mi, 299°)
HIRBO (23mi, 72°) 4000ft
HIRBO (turn)
RW13RCOVIR (47°)COVIR
ASALT (6mi, 38°) 3000ft
 RNAVASALT 3000ft
PALVE (2mi, 39°) 3000ft
ZEBAK (6mi, 39°) 1082ft
JONAT (2mi, 79°) 290ft
KJFK (turn) 68ft
TIHWO (3mi, 118°)
HIRBO (23mi, 69°) 4000ft
HIRBO (turn)
RW22LXDPK (254°)DPK
CAPIT (15mi, 265°) 2900ft
RW22LXWIKOL (233°)WIKOL
GIGPE (5mi, 227°) 3000ft
CAPIT (4mi, 227°) 2900ft
 RNAVCAPIT 2900ft
ENEEE (4mi, 227°) 1700ft
ZOSDO (3mi, 229°) 800ft
CFLNN (2mi, 229°) 65ft
(4669mi, 119°) 413ft
CHANT (4666mi, 299°) 3000ft
CHANT (turn)
RW22LYDPK (254°)DPK
NAYIK (15mi, 273°) 2000ft
 RNAVNAYIK 2000ft
ZALPO (6mi, 218°) 1800ft
KJFK (7mi, 238°) 65ft
(4672mi, 119°) 269ft
FOLER (4670mi, 299°)
CHANT (17mi, 174°) 3000ft
CHANT (turn)
RW22LZDPK (254°)DPK
TUSTE (9mi, 272°) 3000ft
 RNAVTUSTE 3000ft
ZAKUS (6mi, 251°) 1900ft
JIRVA (4mi, 238°) 1900ft
SOGOE (1mi, 238°)
HESOR (1mi, 229°)
KJFK (5mi, 247°) 62ft
WEPLA (7mi, 195°)
CHANT (14mi, 159°) 3000ft
CHANT (turn)
RW22RDPK (254°)DPK
RIVRA (15mi, 273°) 3000ft
 RNAVRIVRA 3000ft
HENEB (6mi, 218°) 1900ft
KJFK (6mi, 235°) 72ft
(4672mi, 119°) 269ft
PIDTO (4670mi, 299°)
COL (25mi, 231°) 4000ft
COL (turn)
RW31LYCHANT (351°)CHANT
RISSY (9mi, 64°) 2000ft
ZACHS (8mi, 14°) 2000ft
RW31LYDPK (254°)DPK
SESKE (10mi, 224°) 2400ft
ZACHS (9mi, 223°) 2000ft
 RNAVZACHS 2000ft
CUVKU (7mi, 295°) 1800ft
KJFK (7mi, 296°) 64ft
(4672mi, 119°) 500ft
FRNKY (4666mi, 299°)
CHANT (6mi, 191°) 3000ft
CHANT (turn)
RW31LZCHANT (351°)CHANT
RISSY (9mi, 64°) 2000ft
ZACHS (8mi, 14°) 2000ft
RW31LZDPK (254°)DPK
SESKE (10mi, 224°) 2400ft
ZACHS (9mi, 223°) 2000ft
 RNAVZACHS 2000ft
CUVKU (7mi, 295°) 1800ft
KJFK (7mi, 296°) 64ft
(4672mi, 119°) 500ft
FRNKY (4666mi, 299°)
CHANT (6mi, 191°) 3000ft
CHANT (turn)
RW31RYCAMRN (5°)CAMRN
VIDIO (27mi, 39°) 3000ft
CATOD (9mi, 8°) 3000ft
RW31RYDPK (254°)DPK
PZULU (11mi, 208°) 3000ft
CATOD (8mi, 241°) 3000ft
 RNAVCATOD 3000ft
IGIDE (6mi, 295°) 1900ft
KJFK (8mi, 289°) 62ft
(4672mi, 119°) 1800ft
COL (4684mi, 299°) 4000ft
COL (turn)
RW31RZCAMRN (5°)CAMRN
VIDIO (27mi, 39°) 3000ft
CATOD (9mi, 8°) 3000ft
RW31RZDPK (254°)DPK
PZULU (11mi, 208°) 3000ft
CATOD (8mi, 241°) 3000ft
 RNAVCATOD 3000ft
IGIDE (6mi, 295°) 1900ft
KJFK (8mi, 289°) 61ft
(4672mi, 119°) 1800ft
COL (4684mi, 299°) 4000ft
COL (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CAMRN4BOTONVHFright229 (49)°18000ft - 45000ft1.5min timedICAO rules
CAMRN4CAMRNVHFleft221 (41)°6001ft - 14000ft1.0min timed210
IGN1IGNNDBright13 (193)°< 17999ft1.0min timedICAO rules
IGN1LENDYVHFright315 (135)°18000ft - 45000ft1.5min timed230
LENDY6JENNOVHFleft305 (125)°18000ft - 41000ft1.5min timedICAO rules
LENDY6LENDYVHFright315 (135)°18000ft - 45000ft1.5min timed230
PARCH3CCCNDBleft85 (265)°< 17999ft1.0min timedICAO rules
PARCH3ENENDBleft44 (224)°1.5min timedICAO rules
PARCH3PVDNDBright234 (54)°1.0min timedICAO rules
PARCH3TRAITVHFright52 (232)°< 17999ft1.0min timedICAO rules
PWL2LOVESVHFleft336 (156)°1.0min timedICAO rules
ROBER2CCCNDBleft85 (265)°< 17999ft1.0min timedICAO rules
ROBER2ENENDBleft44 (224)°1.5min timedICAO rules
ROBER2PVDNDBright234 (54)°1.0min timedICAO rules
ROBER2TRAITVHFright52 (232)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
