Airports for X-Plane

Long Beach - Long Beach/daugherty Field

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityLong Beach
Elevation60ft (18m)
TimezoneGMT -8
Coordinates33.81539, -118.15489
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLGB
IATA codeLGB
FAA codeLGB

Communication

Long Beach/Daugherty Field ATIS127.750
Long Beach/Daugherty Field CTAF119.400
Long Beach/Daugherty Field UNICOM122.950
Long Beach/Daugherty Field DEL118.150
Long Beach/Daugherty Field Ground Control133.000
Long Beach/Daugherty Field Tower119.400
Long Beach/Daugherty Field Tower120.500
Long Beach/Daugherty Field SOCAL Approach125.350
Long Beach/Daugherty Field SOCAL Departure127.200

Approach frequencies

ILS-cat-IRW30110.318.00mi
3° GSRW30110.318.00mi
Nearby Points of Interest:
Los Cerritos Ranch House
-
Puvunga
-
United States Post Office–Long Beach Main
-
Bembridge House
-
Villa Riviera
-
Cooper Arms Apartments
-
First National Bank of Long Beach
-
Dominguez Rancho Adobe
-
Lynwood Pacific Electric Railway Depot
-
San Pedro Municipal Ferry Building
-
Ralph J. Scott
-
United States Post Office
-
Pacific Electric Railroad Bridge
-
Oldest McDonald's restaurant
-
Municipal Warehouse No. 1
-
Torrance School
-
Auditorium (Torrance High School)
-
Main Building
-
Home Economics Building
-
Clarke Estate
-
Casa de Parley Johnson
-
Watts Station
-
Fort MacArthur
-
Phillip Ackley Stanton House
-
Orin Jordan House

Runway info

Runway 12 / 30
 length3044m (9987ft)
 bearing129° / 309°
 width61m (200ft)
 surfaceasphalt
 displ threshold412m (1352ft) / 610m (2001ft)
 blast zone61m (200ft) / 61m (200ft)
Runway 8L / 26R
 length1889m (6198ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceasphalt
 displ threshold398m (1306ft) / 162m (531ft)
Runway 8R / 26L
 length1195m (3921ft)
 bearing90° / 270°
 width30m (100ft)
 surfaceasphalt
 blast zone46m (151ft) / 46m (151ft)

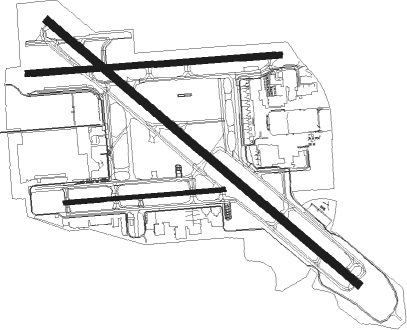

Airport layout


Taxiway locations

 A  B  C  D  D1  D2  D3  D4
 D5  E  F  F1  F2  F3  F4  F5
 G  J  J2  J4  J5  K  K1  K2
 K3  L  L1  L2  L3
Parking locations

 Aces  Angel  Anthelion  Atlas  Cargo  GA  Gate  Gulfstream
 LASD  Long  Ross  Signature  Summit  UPS

Nearby beacons

codeidentifierdistbearingfrequency
SLISEAL BEACH (LOS ALAMITOS) VORTAC5.3108°115.70
LAXLOS ANGELES VORTAC15.5293°113.60
SMOSANTA MONICA VOR/DME19303°110.80
ELBEL TORO (SANTA ANA) VOR/DME22.7108°117.20
POMPOMONA VORTAC24.154°110.40
SXCSANTA CATALINA VORTAC29.5211°111.40
VNYVAN NUYS VOR/DME29.6320°113.10
PDZPARADISE (ONTARIO) VORTAC31.781°112.20
RALRIVERSIDE VOR36.179°112.40
SBPETIS (SAN BERNARDINO) NDB41.873°397
RIVMARCH (RIVERSIDE) TACAN44.284°113
VTUVENTURA (OXNARD) VOR/DME48289°108.20
HDFHOMELAND (RIVERSIDE) VOR48.492°113.40
FIMFILLMORE VORTAC48.6307°112.50
PMDPALMDALE VORTAC49.26°114.50
NFGCAMP PENDLETON (OCEANSIDE TACAN50.3125°111.80
OCNOCEANSIDE VORTAC50.5128°115.30
NTDPOINT MUGU (OXNARD) TACAN51.5288°110.60
NUCSAN CLEMENTE TACAN51.9208°117.60
CMACAMARILLO VOR/DME52.4293°115.80
LHSLAKE HUGHES VORTAC56.1334°114.35
NSDBEAVER (SAN DIEGO) TACAN57.9197°113.90
VCVVICTORVILLE VOR/DME60.244°109.05
GMNGORMAN VORTAC68.9324°116.10

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW08 (ALL)
 ANAHM148mi289°
 HAWWC347mi291°
RW12
 ZOOMM397mi52°
 FRITR3103mi121°
 ANAHM148mi289°
 HAWWC3, TOPMM447mi291°
RW26 (ALL)
 ANAHM148mi289°
RW26L
 HAWWC347mi291°
RW26R
 ZOOMM397mi52°
 FRITR3103mi121°
 TOPMM4, HAWWC347mi291°
RW30
 ZOOMM397mi52°
 FRITR3103mi121°
 ANAHM148mi289°
 HAWWC3, TOPMM447mi291°

STAR starting pointsdistanceinbound heading
ALL
 TANDY533.2110°
 ROOBY343.0269°
 KAYOH728.2274°
RW12
 BAUBB2, PCIFC223.547°
 DSNEE535.3270°
RW26R
 BAUBB2, PCIFC223.547°
 DSNEE535.3270°
RW30
 BAUBB2, PCIFC223.547°
 DSNEE535.3270°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW26RALBAS (340°)ALBAS 4000ft
LUCIG (7mi, 37°) 3000ft
RW26RDRTTY (309°)DRTTY 3000ft
LUCIG (7mi, 310°) 3000ft
RW26RMIDDS (302°)MIDDS 4000ft
LUCIG (4mi, 286°) 3000ft
 RNAVLUCIG 3000ft
JILAN (3mi, 310°) 2800ft
CASIV (2mi, 345°)
BUCAS (4mi, 320°)
KLGB (3mi, 262°) 95ft
(6791mi, 106°) 800ft
PADDR (6801mi, 286°) 3000ft
PADDR (turn)
RW30-YDRTTY (309°)DRTTY 3000ft
LUCIG (7mi, 310°) 3000ft
RW30-YEZKEL (332°)EZKEL 4000ft
LUCIG (5mi, 36°) 3000ft
RW30-YMIDDS (302°)MIDDS 4000ft
LUCIG (4mi, 286°) 3000ft
 RNAVLUCIG 3000ft
GUNEY (5mi, 310°) 1600ft
KLGB (5mi, 307°) 89ft
(6791mi, 106°) 800ft
PADDR (6801mi, 286°) 3000ft
PADDR (turn)
RW30-ZDRTTY (309°)DRTTY 3000ft
LUCIG (7mi, 310°) 3000ft
RW30-ZEZKEL (332°)EZKEL 4000ft
LUCIG (5mi, 36°) 3000ft
RW30-ZMIDDS (302°)MIDDS 4000ft
LUCIG (4mi, 286°) 3000ft
 RNAVLUCIG 3000ft
GUNEY (5mi, 310°) 1600ft
KLGB (5mi, 307°) 89ft
(6791mi, 106°) 800ft
PADDR (6801mi, 286°) 3000ft
PADDR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DSNEE5LITNGVHFleft84 (264)°DME 10.0miICAO rules
DSNEE5SCROWVHFleft59 (239)°DME 10.0miICAO rules
ROOBY3LITNGVHFleft84 (264)°DME 10.0miICAO rules
ROOBY3SCROWVHFleft59 (239)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
