West Palm Beach - Palm Beach County Park
Airport details
| Country | United States of America |
| State | Florida |
| Region | K7 |
| Airspace | Miami Oceanic Ctr |
| Municipality | Palm Beach County |
| Elevation | 14ft (4m) |
| Timezone | GMT -5 |
| Coordinates | 26.59021, -80.08448 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KLNA |
| IATA code | LNA |
| FAA code | LNA |
Communication
| Palm Beach County Park CTAF/UNICOM | 122.700 |
| Palm Beach County Park Approach/Departure | 127.350 |
Nearby Points of Interest:
Historic Old Town Commercial District
-Old Lucerne Historic Residential District
-Eastover
-Lofthus
-College Park Historic District
-Vedado Historic District
-Bingham-Blossom House
-Central Park Historic District
-Prospect Park-Southland Park Historic District
-Flamingo Park Historic Residential District
-El Cid Historic District
-Clifton Rice House
-Norton House
-Grandview Heights Historic District
-Mango Promenade Historic District
-Via Mizner
-Palm Beach Town Hall
-Old Palm Beach Junior College Building
-Palm Beach Daily News Building
-Ferndix Building
-Grant Van Valkenburg House
-Professional Building
-American National Bank Building
-Milton-Myers American Legion Post No. 65
-Clematis Street Historic Commercial District

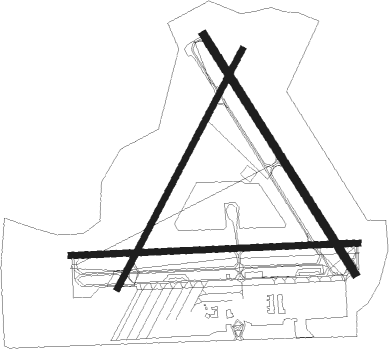

Runway info
Runway 10 / 28  | ||
| length | 1065m (3494ft) | |
| bearing | 92° / 272° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| Runway 16 / 34 | ||
| length | 1044m (3425ft) | |
| bearing | 149° / 329° | |
| width | 30m (100ft) | |
| surface | asphalt | |
| Runway 4 / 22 | ||
| length | 993m (3258ft) | |
| bearing | 35° / 215° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| displ threshold | 1m (3ft) / 0m (0ft) | |
| blast zone | 159m (522ft) / 0m (0ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| PBI | PALM BEACH VORTAC | 5.3 | 359° | 115.70 |
| UTX | UNITED NDB | 23.3 | 322° | 405 |
| FX | PRAIZ (FT LAUDERDALE) NDB | 26.8 | 208° | 221 |
| FLL | FORT LAUDERDALE VOR/DME | 31.3 | 189° | 114.40 |
| PHK | PAHOKEE VOR/DME | 34.5 | 288° | 115.40 |
| DHP | DOLPHIN (MIAMI) VORTAC | 49.5 | 199° | 113.90 |
| VKZ | VIRGINIA KEY VOR/DME | 50.4 | 185° | 117.10 |
| FPR | FORT PIERCE NDB | 56 | 342° | 275 |
| ZBV | BIMINI VORTAC | 68.1 | 138° | 116.70 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| TTYLR1 | 51.8 | 111° | |
| FEBAD1 | 39.6 | 115° | |
| MLB2 | 95.6 | 160° | |
| RASAE2 | 30.8 | 172° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW34 | KISEC (303°) | KISEC 2300ft |
| RW34 | MRLIN (286°) | MRLIN KISEC (11mi, 273°) 2300ft |
| RW34 | VURYU (306°) | VURYU KISEC (5mi, 311°) 2300ft |
| RNAV | KISEC 2300ft JOVLI (4mi, 295°) 1700ft WIBGA (2mi, 309°) 800ft NUYIT (2mi, 309°) 245ft (4873mi, 108°) 700ft UGLEE (4874mi, 288°) 2000ft UGLEE (turn) | |
| RWNVA | ARKES (88°) | ARKES ZOTUB (8mi, 82°) 2600ft |
| RWNVA | PHK (108°) | PHK LMORE (18mi, 123°) 2600ft ZOTUB (8mi, 96°) 2600ft |
| RWNVA | ZOTUB (92°) | ZOTUB 2600ft |
| RNAV | ZOTUB 2600ft KUVBE (3mi, 92°) 2200ft YEGUP (4mi, 92°) 880ft KLNA (3mi, 93°) 57ft (4873mi, 108°) 414ft UGLEE (4874mi, 288°) 2000ft UGLEE (turn) | |
| RWNVB | CUVMO (272°) | CUVMO 2500ft |
| RWNVB | MRLIN (286°) | MRLIN CUVMO (8mi, 304°) 2500ft |
| RWNVB | STOOP (176°) | STOOP YANBU (37mi, 153°) 2500ft CUVMO (7mi, 204°) 2500ft |
| RNAV | CUVMO 2500ft RUCOG (6mi, 272°) 1700ft KLNA (4mi, 271°) 58ft (4873mi, 108°) 414ft UGLEE (4874mi, 288°) 2000ft UGLEE (turn) |
