Airports for X-Plane

Kansas City - Kansas City Intl

Airport details

CountryUnited States of America
StateMissouri
RegionK3
AirspaceKansas City Ctr
MunicipalityKansas City
Elevation1022ft (312m)
TimezoneGMT -6
Coordinates39.29761, -94.71389
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMCI
IATA codeMCI
FAA codeMCI

Communication

Kansas City Intl ATIS128.375
Kansas City Intl UNICOM122.950
Kansas City Intl Clearance DEL135.700
Kansas City Intl Ground Control121.800
Kansas City Intl INTL Tower128.200
Kansas City Intl Approach120.950
Kansas City Intl Departure123.950

Approach frequencies

ILS-cat-IIIRW19R109.118.00mi
ILS-cat-IIIRW01R110.7518.00mi
ILS-cat-IRW27109.718.00mi
ILS-cat-IRW09109.718.00mi
ILS-cat-IRW01L110.518.00mi
ILS-cat-IRW19L109.5518.00mi
3° GSRW27109.718.00mi
3° GSRW01L110.518.00mi
3° GSRW19L109.5518.00mi
3° GSRW09109.718.00mi
3° GSRW19R109.118.00mi
3° GSRW01R110.7518.00mi
Nearby Points of Interest:
Frederick Krause Mansion
-
Platte County Courthouse
-
Missouri District Warehouse
-
Washington Chapel C.M.E. Church
-
Benjamin Banneker School
-
Mackay Building
-
Charles Smith Scott Memorial Observatory
-
Waddell "A" Truss Bridge
-
Nathaniel H. Burt House
-
Carnegie Arts Center of Leavenworth, Kansas
-
Leavenworth Performing Arts Center
-
McCormick Distilling Company
-
Atkins-Johnson Farmhouse Property
-
Fort Leavenworth
-
Aker Cemetery
-
Weston Historic District
-
A. Porter Davis Residence
-
Sears, Roebuck and Company Warehouse Building
-
Wyandotte County Courthouse
-
Scottish Rite Temple
-
Woodneath
-
Memorial Hall
-
Wheeling Corrugating Company Building
-
Fire Station No. 9
-
Kansas City Cold Storage Company Building

Runway info

Runway 1L / 19R
 length3295m (10810ft)
 bearing16° / 196°
 width46m (150ft)
 surfaceasphalt
 blast zone111m (364ft) / 122m (400ft)
Runway 1R / 19L
 length2898m (9508ft)
 bearing16° / 196°
 width46m (151ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 9 / 27
 length2899m (9511ft)
 bearing95° / 275°
 width46m (151ft)
 surfaceasphalt
 blast zone122m (400ft) / 122m (400ft)

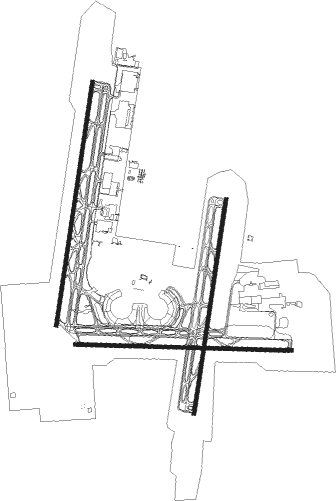

Airport layout


Taxiway locations

 A  A1  A10  A11  A2  A3  A4  A5
 A6  A8  B  B2  B3  C  C1  C3
 C5  C6  C7  C8  C9  D  E  E1
 E2  E4  E5  E6  E7  E8  F  G
 J  K  L  M
Parking locations

 Cargo  FedEx  GA  Gate  RAMP  UPS

Nearby beacons

codeidentifierdistbearingfrequency
MCIKANSAS CITY VORTAC1.3242°113.25
RNHUGGY (KANSAS CITY) NDB6.3272°416
STTARIO (ST JOSEPH) NDB24.4333°260
ANXNAPOLEON VORTAC29.8109°114
JZNEWBN (LAWRENCE) NDB30.8229°338
PKHERBB (OLATHE) NDB32.7182°420
AZNAMAZON (SAINT JOSEPH) NDB36.3342°233
TOPTOPEKA VORTAC40259°117.80
STJSAINT JOSEPH (ST JOSEPH) VORTAC40.9342°115.50
BQSBRAYMER VOR/DME43.768°115.35
TOBILOY (TOPEKA) NDB46.5260°521
RBADME46.7308°108.20
FOEFORBES (TOPEKA) TACAN48.8250°111.60
OWIOTTAWA NDB51.9216°251

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ROYAL959mi5°
 LAKES3153mi83°
 RACER7134mi145°
 WLDCT5137mi263°
 TIFTO658mi285°
 CHIEF741mi342°

STAR starting pointsdistanceinbound heading
RW01 (ALL)
 JHAWK644.255°
 JSONN125.1129°
 BQS743.7248°
 TYGER647.1314°
RW09
 JHAWK644.255°
 JSONN125.1129°
 BQS743.7248°
 TYGER647.1314°
RW19 (ALL)
 JHAWK644.255°
 JSONN125.1129°
 BQS743.7248°
 TYGER647.1314°
RW27
 JHAWK644.255°
 JSONN125.1129°
 BQS743.7248°
 TYGER647.1314°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LYBUM (348°)BUM
CYPRE (49mi, 338°) 6000ft
DASHI (3mi, 16°) 5000ft
WMPOW (3mi, 16°) 4000ft
 RNAVWMPOW 4000ft
MISSR (3mi, 16°) 3000ft
JERZE (1mi, 16°) 2600ft
ZUGOR (3mi, 16°) 1700ft
KMCI (2mi, 34°) 1071ft
(5624mi, 113°) 2000ft
BOWLR (5645mi, 293°) 4000ft
BOWLR (turn)
RW01LZBAUNR (48°)BAUNR 6000ft
GAYLZ (7mi, 59°) 4000ft
COONI (3mi, 59°) 3100ft
JERZE (2mi, 40°) 2600ft
RW01LZBYGEC (280°)BYGEC 7000ft
BRSKT (3mi, 219°) 6000ft
SLOWE (3mi, 196°) 5000ft
KRIKT (4mi, 244°) 4000ft
DAUSN (turn) 4000ft
JERLD (2mi, 294°) 3500ft
JERZE (3mi, 341°) 2600ft
RW01LZCOOKD (343°)COOKD 5000ft
JERLD (6mi, 310°) 3500ft
JERZE (3mi, 341°) 2600ft
RW01LZCYPRE (19°)CYPRE 6000ft
DASHI (3mi, 16°) 5000ft
WMPOW (3mi, 16°) 4000ft
MISSR (3mi, 16°) 3000ft
JERZE (1mi, 16°) 2600ft
RW01LZELTNN (109°)ELTNN 7000ft
FIDVU (5mi, 134°) 6000ft
JACEY (4mi, 187°) 5000ft
KLUVR (3mi, 137°) 4000ft
COONI (2mi, 80°) 3100ft
JERZE (2mi, 40°) 2600ft
 RNAVJERZE 2600ft
KMCI (5mi, 25°) 1071ft
(5624mi, 113°) 2000ft
BOWLR (5645mi, 293°) 4000ft
BOWLR (turn)
RW01RYBUM (348°)BUM
SPICY (48mi, 339°) 6000ft
BARBQ (3mi, 16°) 5000ft
TERKY (3mi, 16°) 4000ft
 RNAVTERKY 4000ft
SMOKE (3mi, 16°) 3000ft
RIBBS (1mi, 16°) 2600ft
HOTBI (3mi, 16°) 1700ft
KMCI (3mi, 6°) 1076ft
(5624mi, 113°) 1500ft
ANX (5598mi, 293°) 4000ft
ANX (turn)
RW01RZBAUNR (48°)BAUNR 6000ft
SMUVE (7mi, 64°) 4000ft
BURND (3mi, 64°) 3000ft
RIBBS (2mi, 43°) 2600ft
RW01RZBYGEC (280°)BYGEC 7000ft
BRSKT (3mi, 219°) 6000ft
SLOWE (3mi, 196°) 5000ft
KRIKT (4mi, 244°) 4000ft
SAXXO (2mi, 297°) 3200ft
RIBBS (2mi, 344°) 2600ft
RW01RZCOOKD (343°)COOKD 5000ft
SAXXO (5mi, 315°) 3200ft
RIBBS (2mi, 344°) 2600ft
RW01RZELTNN (109°)ELTNN 7000ft
FIDVU (5mi, 134°) 6000ft
JACEY (4mi, 187°) 5000ft
KLUVR (3mi, 137°) 4000ft
TAUBE (2mi, 100°) 3600ft
BURND (2mi, 83°) 3000ft
RIBBS (2mi, 43°) 2600ft
RW01RZSPICY (14°)SPICY 6000ft
BARBQ (3mi, 16°) 5000ft
TERKY (3mi, 16°) 4000ft
SMOKE (3mi, 16°) 3000ft
RIBBS (1mi, 16°) 2600ft
 RNAVRIBBS 2600ft
KMCI (6mi, 11°) 1076ft
(5624mi, 113°) 1500ft
ANX (5598mi, 293°) 4000ft
ANX (turn)
RW09-YTOP (79°)TOP
MAXEE (25mi, 70°) 6000ft
 RNAVMAXEE 6000ft
LADYD (3mi, 95°) 5000ft
WOOKE (3mi, 95°) 4000ft
JOOEE (3mi, 95°) 3000ft
JAYBA (1mi, 95°) 2600ft
KMCI (5mi, 91°) 1071ft
(5624mi, 113°) 1314ft
DUSTN (5619mi, 293°)
LYMES (22mi, 94°) 4000ft
LYMES (turn)
RW09-ZHOOZE (55°)HOOZE
NOMEE (25mi, 45°) 5000ft
GURRA (5mi, 45°) 3700ft
JOOEE (2mi, 72°) 3000ft
RW09-ZINNEE (186°)INNEE 7000ft
STRAM (7mi, 275°) 5000ft
SHOME (5mi, 217°) 3600ft
JOOEE (2mi, 114°) 3000ft
RW09-ZJUDAA (126°)JUDAA
TONYG (23mi, 136°) 5000ft
SHOME (5mi, 137°) 3600ft
JOOEE (2mi, 114°) 3000ft
RW09-ZMAMMA (24°)MAMMA 7000ft
SPANI (5mi, 275°) 5000ft
GURRA (4mi, 331°) 3700ft
JOOEE (2mi, 72°) 3000ft
RW09-ZMAXEE (93°)MAXEE 6000ft
LADYD (3mi, 95°) 5000ft
WOOKE (3mi, 95°) 4000ft
JOOEE (3mi, 95°) 3000ft
 RNAVJOOEE 3000ft
JAYBA (1mi, 95°) 2600ft
KMCI (5mi, 91°) 1071ft
DUSTN (6mi, 98°)
LYMES (22mi, 94°) 4000ft
LYMES (turn)
RW19LYSTJ (162°)STJ
TUSKG (28mi, 143°) 6000ft
AYRMN (3mi, 197°) 5000ft
MGEEE (3mi, 197°) 4000ft
 RNAVMGEEE 4000ft
ROMNS (3mi, 197°) 3000ft
MAZOU (1mi, 197°) 2600ft
UMREW (3mi, 197°) 1640ft
KMCI (3mi, 208°) 1038ft
(5624mi, 113°) 1500ft
ANX (5598mi, 293°) 4000ft
ANX (turn)
RW19LZBUKKS (239°)BUKKS 6000ft
SCIPR (5mi, 253°) 4000ft
BUDIE (5mi, 253°) 3100ft
JAZZE (2mi, 228°) 2300ft
RW19LZFARMS (140°)FARMS 6000ft
JEFRI (9mi, 118°) 3200ft
SYDNE (1mi, 118°) 3000ft
JAZZE (2mi, 153°) 2300ft
RW19LZNOAHS (56°)NOAHS
ONEEL (6mi, 28°) 7000ft
BUZZR (3mi, 14°) 6000ft
MICLE (5mi, 16°) 5000ft
JEFRI (4mi, 73°) 3200ft
SYDNE (1mi, 118°) 3000ft
JAZZE (2mi, 153°) 2300ft
RW19LZSLABB (321°)SLABB
COWNS (3mi, 9°) 7000ft
BYKER (4mi, 9°) 6000ft
HOWIL (4mi, 17°) 5000ft
DETEE (4mi, 321°) 3500ft
BUDIE (1mi, 267°) 3100ft
JAZZE (2mi, 228°) 2300ft
RW19LZTUSKG (198°)TUSKG 6000ft
AYRMN (3mi, 197°) 5000ft
MGEEE (3mi, 197°) 4000ft
ROMNS (3mi, 197°) 3000ft
JAZZE (2mi, 197°) 2300ft
 RNAVJAZZE 2300ft
KMCI (5mi, 203°) 1038ft
(5624mi, 113°) 1500ft
ANX (5598mi, 293°) 4000ft
ANX (turn)
RW19RYSTJ (162°)STJ
CAMDO (26mi, 144°) 6000ft
WESGI (3mi, 197°) 5000ft
BRTNY (3mi, 197°) 4000ft
 RNAVBRTNY 4000ft
FAMUS (3mi, 197°) 3000ft
HNZLY (1mi, 197°) 2600ft
ZESAB (3mi, 196°) 1600ft
KMCI (3mi, 182°) 1035ft
(5624mi, 113°) 2000ft
RUGBB (5645mi, 292°) 4000ft
RUGBB (turn)
RW19RZBUKKS (239°)BUKKS 6000ft
SCIPR (5mi, 253°) 4000ft
HOLMS (6mi, 258°) 2900ft
PEAKA (3mi, 231°) 2100ft
RW19RZCAMDO (194°)CAMDO 6000ft
WESGI (3mi, 197°) 5000ft
BRTNY (3mi, 197°) 4000ft
FAMUS (3mi, 197°) 3000ft
PEAKA (3mi, 197°) 2100ft
RW19RZFARMS (140°)FARMS 6000ft
JEFRI (9mi, 118°) 3200ft
PEAKA (3mi, 153°) 2100ft
RW19RZNOAHS (56°)NOAHS
ONEEL (6mi, 28°) 7000ft
BUZZR (3mi, 14°) 6000ft
MICLE (5mi, 16°) 5000ft
JEFRI (4mi, 73°) 3200ft
PEAKA (3mi, 153°) 2100ft
RW19RZSLABB (321°)SLABB
COWNS (3mi, 9°) 7000ft
BYKER (4mi, 9°) 6000ft
HOWIL (4mi, 17°) 5000ft
DETEE (4mi, 321°) 3500ft
GRNKE (1mi, 280°) 3300ft
HOLMS (1mi, 269°) 2900ft
PEAKA (3mi, 231°) 2100ft
 RNAVPEAKA 2100ft
KMCI (5mi, 187°) 1035ft
(5624mi, 113°) 2000ft
RUGBB (5645mi, 292°) 4000ft
RUGBB (turn)
RW27-YANX (289°)ANX
CARBB (15mi, 305°) 6000ft
 RNAVCARBB 6000ft
SLIMS (3mi, 275°) 5000ft
TAGRT (3mi, 275°) 4000ft
TEEKA (3mi, 275°) 3000ft
DUSTN (1mi, 275°) 2600ft
CARYE (3mi, 275°) 1540ft
KMCI (3mi, 283°) 1076ft
(5624mi, 113°) 1600ft
RUGBB (5645mi, 292°) 4000ft
RUGBB (turn)
RW27-ZCARBB (276°)CARBB 6000ft
SLIMS (3mi, 275°) 5000ft
TAGRT (3mi, 275°) 4000ft
TEEKA (3mi, 275°) 3000ft
DUSTN (1mi, 275°) 2600ft
GBRET (2mi, 275°) 2100ft
RW27-ZDMANN (46°)DMANN 7000ft
GONNR (5mi, 79°) 6000ft
VERNS (4mi, 95°) 4600ft
GBRET (5mi, 8°) 2100ft
RW27-ZDONNS (250°)DONNS
LAUSN (13mi, 243°) 7000ft
KAENE (8mi, 243°) 5000ft
PHOGG (7mi, 243°) 3100ft
DUSTN (2mi, 259°) 2600ft
GBRET (2mi, 275°) 2100ft
RW27-ZGEKAY (203°)GEKAY 7000ft
BHAMA (5mi, 95°) 5000ft
PHOGG (5mi, 163°) 3100ft
DUSTN (2mi, 259°) 2600ft
GBRET (2mi, 275°) 2100ft
RW27-ZTRIKE (315°)TRIKE
MOZEY (17mi, 324°) 7000ft
KAALA (7mi, 324°) 5000ft
MCRAE (3mi, 324°) 4000ft
CIJAY (2mi, 327°) 3300ft
DUSTN (2mi, 298°) 2600ft
GBRET (2mi, 275°) 2100ft
 RNAVGBRET 2100ft
KMCI (4mi, 280°) 1076ft
WOOKE (10mi, 273°)
BOWLR (22mi, 320°) 4000ft
BOWLR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BQS7BQSNDBright54 (234)°1.0min timedICAO rules
BQS7FONIXVHFright57 (237)°1.0min timedICAO rules
JHAWK6JHAWKVHFleft223 (43)°< 17999ft1.0min timedICAO rules
JSONN1ASIIXVHFleft356 (176)°DME 11.0miICAO rules
JSONN1DPEAKVHFleft284 (104)°DME 11.0miICAO rules
JSONN1JSONNVHFleft314 (134)°DME 4.0miICAO rules
TYGER6TYGERVHFleft135 (315)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
