Country | United States of America |
State | Florida |
Region | K7 |
Airspace | Jacksonville Ctr |
Municipality | Santa Rosa County |
Elevation | 175ft (53m) |
Timezone | GMT -6 |
Coordinates | 30.70924, -87.01398 |
Magnetic var | |
Type | land |
Available since | X-Plane v10.40 |
ICAO code | KNDZ |
IATA code | NDZ |
FAA code | NDZ |
Whiting Field NAS South Tower | 121.400 |
Whiting Field NAS South PENSACOLA Approach/Departure | 124.850 |
ILS-cat-I | RW32 | 110.55 | 18.00mi |
3° GS | RW32 | 110.55 | 18.00mi |

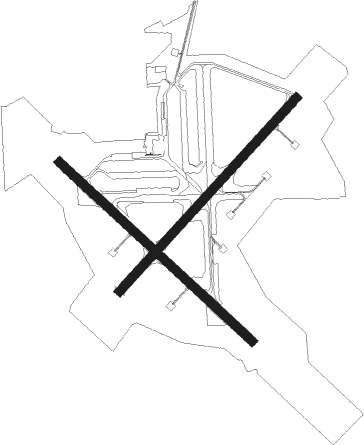

Runway 14 / 32 | ||
length | 1831m (6007ft) | |
bearing | 133° / 313° | |
width | 61m (200ft) | |
surface | asphalt | |
Runway 5 / 23 | ||
length | 1829m (6001ft) | |
bearing | 51° / 231° | |
width | 61m (200ft) | |
surface | asphalt |
|
code | identifier | dist | bearing | frequency |
---|---|---|---|---|
NSE | WHITING (MILTON) TACAN | 0.9 | 345° | 112.30 |
NGS | SANTA ROSA (MILTON) TACAN | 6.8 | 141° | 133.60 |
PKZ | PICKENS (PENSACOLA) NDB | 18.4 | 211° | 326 |
CEW | CRESTVIEW VORTAC | 18.6 | 71° | 115.90 |
NUN | SAUFLEY (PENSACOLA) VOR | 21.9 | 234° | 108.80 |
HRT | HURLBURT (MARY ESTHER) TACAN | 23.7 | 131° | 110.80 |
CE | KOBRA (CRESTVIEW) NDB | 26 | 73° | 201 |
NPA | PENSACOLA TACAN | 26.2 | 221° | 117.20 |
DWG | WARRINGTON (VALPARAISO) TACAN | 29 | 115° | 134.50 |
JUY | JUDD (ANDALUSIA) NDB | 48 | 46° | 264 |
MVC | MONROEVILLE VORTAC | 48.2 | 336° | 116.80 |
runway | airway (heading) | route (dist, bearing) |
---|---|---|
RW32 | CEW (251°) | CEW 3000ft ESAKE (17mi, 248°) 3000ft CMICH (10mi, 236°) 3000ft TUSKS (9mi, 142°) 3000ft IVORY (7mi, 61°) 3000ft CUPES (5mi, 359°) 1700ft |
RW32 | PENSI (108°) | PENSI 3000ft CMICH (14mi, 144°) 3000ft TUSKS (9mi, 142°) 3000ft IVORY (7mi, 61°) 3000ft CUPES (5mi, 359°) 1700ft |
RW32 | TUSKS (5°) | TUSKS 3000ft IVORY (7mi, 61°) 3000ft CUPES (5mi, 359°) 1700ft |
RNAV | CUPES 1700ft SMURF (3mi, 313°) 1400ft KNDZ (5mi, 320°) 219ft (5251mi, 109°) 800ft TUSKS (5252mi, 289°) 3000ft TUSKS (turn) 3000ft |
