Airports for X-Plane

Oceanside - Camp Pendleton Mcas

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityCAL Fire San Diego Unit
Elevation78ft (24m)
TimezoneGMT -8
Coordinates33.29665, -117.36138
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKNFG
IATA coden/a
FAA codeNFG

Communication

Camp Pendleton MCAS Clearance DEL126.200
Camp Pendleton MCAS Ground Control128.750
Camp Pendleton MCAS Tower128.775
Camp Pendleton MCAS Approach/Departure128.450
Camp Pendleton MCAS SOCAL Approach/Departure127.300

Runway info

Runway 3 / 21
 length1824m (5984ft)
 bearing49° / 229°
 width58m (190ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

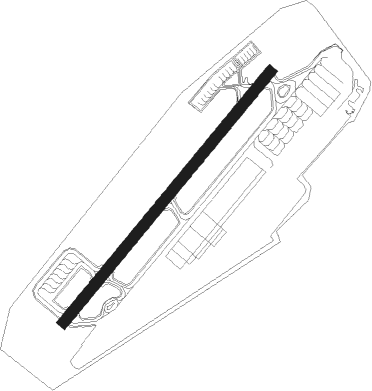

Airport layout


Taxiway locations

 03  21  A  B  C  C1  C2  D
 E1  E2  F1  F2  P
Parking locations

 Hazardous  North  South  VIP

Nearby beacons

codeidentifierdistbearingfrequency
NFGCAMP PENDLETON (OCEANSIDE TACAN1.8229°111.80
OCNOCEANSIDE VORTAC4.3225°115.30
NKXMIRAMAR (SAN DIEGO) TACAN27.6154°109.60
ELBEL TORO (SANTA ANA) VOR/DME29.3316°117.20
HDFHOMELAND (RIVERSIDE) VOR30.120°113.40
MZBMISSION BAY (SAN DIEGO) VORTAC31.6165°117.80
NZYNORTH ISLAND (SAN DIEGO) TACAN36.4166°117
RIVMARCH (RIVERSIDE) TACAN36.88°113
PDZPARADISE (ONTARIO) VORTAC38.2345°112.20
RALRIVERSIDE VOR39.7352°112.40
JLIJULIAN VORTAC40101°114
SLISEAL BEACH (LOS ALAMITOS) VORTAC45.3305°115.70
PGYPOGGI (SAN DIEGO) VORTAC45.4151°116.45
SBPETIS (SAN BERNARDINO) NDB45.6360°397
NRSIMPERIAL BEACH TACAN45.7161°109.20
TIJTIJUANA VOR/DME49.8152°116.50
POMPOMONA VORTAC51.5331°110.40
PSPPALM SPRINGS VORTAC57.958°115.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW03
 MUNN314mi110°
RW21
 BEACH922mi244°

STAR starting pointsdistanceinbound heading
ALL
 LEGOZ262.898°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW21OCN (45°)OCN 5000ft
AECIA (21mi, 46°) 5000ft
AECIA (turn) 5000ft
RW21ROBNN (290°)ROBNN 5000ft
AECIA (18mi, 352°) 5000ft
AECIA (turn) 5000ft
 RNAVAECIA 5000ft
JEMIS (6mi, 225°) 3000ft
JEMOD (3mi, 224°) 2400ft
CARVI (3mi, 229°) 1080ft
KNFG (4mi, 230°) 130ft
(6762mi, 106°) 478ft
AMFIB (6770mi, 286°) 2000ft
AMFIB (turn) 5000ft
