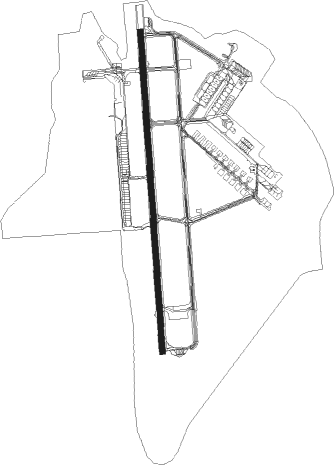

Fort Worth - Fort Worth Nas Jrb
Airport details
| Country | United States of America |
| State | Texas |
| Region | K4 |
| Airspace | Ft Worth Ctr |
| Municipality | Fort Worth |
| Elevation | 648ft (198m) |
| Timezone | GMT -6 |
| Coordinates | 32.76919, -97.44154 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KNFW |
| IATA code | FWH |
| FAA code | NFW |
Communication
| Fort Worth NAS JRB NAVY FORT WORTH Ground Control | 126.400 |
| Fort Worth NAS JRB NAVY FORT WORTH Tower | 120.950 |
| Fort Worth NAS JRB RGNL Approach/Departure | 125.800 |
| Fort Worth NAS JRB NAVY FORT WORTH ARR | 128.775 |
Approach frequencies
| ILS-cat-I | RW36 | 109.3 | 18.00mi |
| ILS-cat-I | RW18 | 108.7 | 18.00mi |
| 3° GS | RW36 | 109.3 | 18.00mi |
| 3° GS | RW18 | 108.7 | 18.00mi |
Nearby Points of Interest:
Westover Manor
-Marshall R. Sanguinet House
-Will Rogers Memorial Center
-Henderson Street Bridge
-Roy A. and Gladys Westbrook House
-Pollock-Capps House
-Eddleman-McFarland House
-Wharton-Scott House
-Fort Worth Masonic Temple
-Paddock Viaduct
-Heritage Park Plaza
-Fort Worth Elks Lodge 124
-Tarrant County Courthouse
-Fort Worth
-Eldon B. Mahon United States Courthouse
-Electric Building
-F. W. Woolworth Building
-Fort Worth Public Market
-American Airways Hangar and Administration Building
-Knights of Pythias Building
-Kress Building
-Markeen Apartments
-First National Bank Building
-W. T. Waggoner Building
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| NFW | NAS JRB FORT WORTH (FT WO TACAN | 0.1 | 45° | 108.70 |
| FT | MUFIN (FORT WORTH) NDB | 8.1 | 29° | 365 |
| FUZ | RANGER (DALLAS-FORT WORTH VORTAC | 15 | 65° | 115.70 |
| TTT | MAVERICK VOR/DME | 21.1 | 76° | 113.10 |
| CVE | COWBOY (DALLAS) VOR/DME | 28 | 77° | 116.20 |
| MQP | MILLSAP (MINERAL WELLS) VORTAC | 28.1 | 266° | 117.70 |
| DT | PINCK (DENTON) NDB | 33.2 | 26° | 257 |
| JEN | GLEN ROSE TACAN | 42.7 | 216° | 115 |
| PQF | MESQUITE NDB | 46.1 | 87° | 248 |
| UKW | BOWIE VORTAC | 49.8 | 334° | 117.15 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| ALL | |||
| TEX1 | 100mi | 16° | |
| DALL8 | 175mi | 78° | |
| KUSSO8 | 204mi | 98° | |
| GARL1 | 106mi | 101° | |
| JPOOL3 | 77mi | 164° | |
| SWABR8 | 96mi | 263° | |
| WORTH7 | 289mi | 288° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| LIKES3 | 23.1 | 44° | |
| MOTZA1, WESAT2 | 33.2 | 150° | |
| SASIE6, TRUUK2 | 58.9 | 231° | |
| DODJE6, REEKO3 | 52.3 | 299° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW18 | MOTZA (150°) | MOTZA 4000ft WEERD (23mi, 135°) 4000ft |
| RNAV | WEERD 4000ft JAMAK (5mi, 181°) 2700ft ZERIP (4mi, 181°) 1340ft KNFW (3mi, 181°) 685ft (5781mi, 109°) 1700ft MOLKE (5785mi, 288°) 3000ft MOLKE (turn) 4100ft | |
| RW36 | SLUGG (44°) | SLUGG 3000ft ISABL (11mi, 88°) 3000ft HOKAG (7mi, 38°) 3000ft |
| RNAV | HOKAG 3000ft WEGTO (5mi, 1°) 2500ft KNFW (7mi, 1°) 709ft (5781mi, 109°) 1700ft HIPOL (5784mi, 289°) 3000ft HIPOL (turn) 4100ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| DODJE6 | CAPTI | VHF | left | 73 (253)° | 1.0min timed | ICAO rules | |
| DODJE6 | CQY | NDB | left | 95 (275)° | < 60000ft | 1.0min timed | ICAO rules |
| DODJE6 | GGG | NDB | right | 114 (294)° | < 17999ft | 1.0min timed | ICAO rules |
| DODJE6 | HERRI | VHF | left | 101 (281)° | 1.0min timed | ICAO rules | |
| DODJE6 | WEIRS | VHF | left | 128 (308)° | < 17999ft | 1.0min timed | ICAO rules |
| LIKES3 | BRRUS | VHF | right | 260 (80)° | DME 10.0mi | ICAO rules | |
| LIKES3 | FOSSL | VHF | right | 205 (25)° | DME 10.0mi | ICAO rules | |
| MOTZA1 | ACKME | VHF | right | 15 (195)° | 1.0min timed | ICAO rules | |
| MOTZA1 | HEATR | VHF | left | 299 (119)° | 1.5min timed | ICAO rules | |
| MOTZA1 | KAJAY | VHF | right | 283 (103)° | 1.5min timed | ICAO rules | |
| MOTZA1 | MOOSE | VHF | left | 15 (195)° | 1.0min timed | ICAO rules | |
| MOTZA1 | PLEBS | VHF | left | 283 (103)° | 1.0min timed | ICAO rules | |
| MOTZA1 | SPS | NDB | left | 348 (168)° | 1.0min timed | ICAO rules | |
| MOTZA1 | TURKI | VHF | right | 266 (86)° | 1.5min timed | ICAO rules | |
| MOTZA1 | UKW | NDB | left | 283 (103)° | 1.0min timed | ICAO rules | |
| MOTZA1 | ZANTO | VHF | left | 283 (103)° | 1.5min timed | ICAO rules | |
| REEKO3 | PURRS | VHF | left | 136 (316)° | DME 10.0mi | ICAO rules | |
| REEKO3 | VDUBB | VHF | left | 83 (263)° | DME 10.0mi | ICAO rules | |
| SASIE6 | BIRLE | VHF | right | 35 (215)° | 1.5min timed | ICAO rules | |
| SASIE6 | BYP | NDB | right | 45 (225)° | < 60000ft | 1.0min timed | ICAO rules |
| SASIE6 | GAATZ | VHF | right | 35 (215)° | 1.0min timed | ICAO rules | |
| SASIE6 | GLOVE | VHF | right | 64 (244)° | 18000ft - 45000ft | 1.5min timed | ICAO rules |
| SASIE6 | ROBEY | VHF | left | 64 (244)° | 1.0min timed | ICAO rules | |
| TRUUK2 | PRIZZ | VHF | left | 38 (218)° | DME 10.0mi | ICAO rules | |
| WESAT2 | FAWNT | VHF | right | 360 (180)° | DME 10.0mi | ICAO rules | |
| WESAT2 | FLOWN | VHF | left | 285 (105)° | DME 10.0mi | ICAO rules | |
| WESAT2 | GREKE | VHF | left | 287 (107)° | DME 10.0mi | ICAO rules | |
| WESAT2 | ROTTR | VHF | left | 355 (175)° | DME 10.0mi | ICAO rules | |
| WESAT2 | TURKI | VHF | right | 266 (86)° | 1.5min timed | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
