Santa Ana - El Toro Mcas
Airport details
| Country | United States of America |
| State | California |
| Region | |
| Airspace | Los Angeles Ctr |
| Municipality | Irvine |
| Elevation | 382ft (116m) |
| Timezone | GMT -8 |
| Coordinates | 33.68485, -117.73000 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KNZJ |
| IATA code | NZJ |
| FAA code | NZJ |
Communication

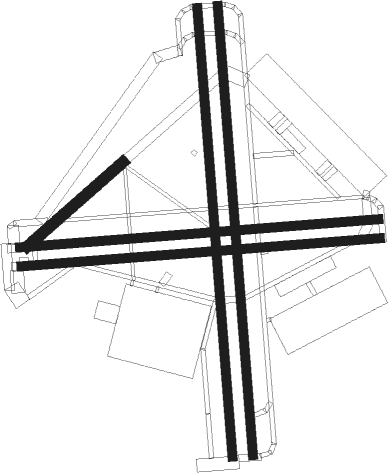

Runway info
Runway 16R / 34L  | ||
| length | 3051m (10010ft) | |
| bearing | 180° / 0° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| Runway 16L / 34R | ||
| length | 3051m (10010ft) | |
| bearing | 180° / 0° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| Runway 7R / 25L | ||
| length | 2441m (8009ft) | |
| bearing | 90° / 270° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| Runway 7L / 25R | ||
| length | 2441m (8009ft) | |
| bearing | 90° / 270° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| Runway 3 / 21 | ||
| length | 863m (2831ft) | |
| bearing | 58° / 238° | |
| width | 76m (250ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| ELB | EL TORO (SANTA ANA) VOR/DME | 0.5 | 187° | 117.20 |
| PDZ | PARADISE (ONTARIO) VORTAC | 17.2 | 41° | 112.20 |
| SLI | SEAL BEACH (LOS ALAMITOS) VORTAC | 17.2 | 287° | 115.70 |
| RAL | RIVERSIDE VOR | 21.4 | 46° | 112.40 |
| POM | POMONA VORTAC | 23.8 | 352° | 110.40 |
| RIV | MARCH (RIVERSIDE) TACAN | 26.3 | 64° | 113 |
| HDF | HOMELAND (RIVERSIDE) VOR | 27.7 | 80° | 113.40 |
| SB | PETIS (SAN BERNARDINO) NDB | 28.7 | 44° | 397 |
| NFG | CAMP PENDLETON (OCEANSIDE TACAN | 30 | 140° | 111.80 |
| OCN | OCEANSIDE VORTAC | 30.9 | 145° | 115.30 |
| LAX | LOS ANGELES VORTAC | 38 | 289° | 113.60 |
| SXC | SANTA CATALINA VORTAC | 39.2 | 246° | 111.40 |
| SMO | SANTA MONICA VOR/DME | 41.1 | 294° | 110.80 |
| VNY | VAN NUYS VOR/DME | 49.8 | 305° | 113.10 |
| NKX | MIRAMAR (SAN DIEGO) TACAN | 56.8 | 145° | 109.60 |
| VCV | VICTORVILLE VOR/DME | 57.1 | 21° | 109.05 |
| NUC | SAN CLEMENTE TACAN | 58.1 | 232° | 117.60 |
| PMD | PALMDALE VORTAC | 59.2 | 341° | 114.50 |
| MZB | MISSION BAY (SAN DIEGO) VORTAC | 59.8 | 151° | 117.80 |
| NSD | BEAVER (SAN DIEGO) TACAN | 60 | 221° | 113.90 |
| NZY | NORTH ISLAND (SAN DIEGO) TACAN | 64.3 | 152° | 117 |
| LHS | LAKE HUGHES VORTAC | 73.2 | 320° | 114.35 |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
