Airports for X-Plane

Everett - Paine Field Snohomish County

Airport details

CountryUnited States of America
StateWashington
RegionK1
AirspaceSeattle Ctr
MunicipalitySnohomish County
Elevation604ft (184m)
TimezoneGMT -8
Coordinates47.90700, -122.28159
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPAE
IATA codePAE
FAA codePAE

Communication

Paine Field Snohomish County ATIS128.650
Paine Field Snohomish County CTAF132.950
Paine Field Snohomish County UNICOM122.950
Paine Field Snohomish County Clearance DEL126.750
Paine Field Snohomish County Ground Control121.800
Paine Field Snohomish County PAINE Tower120.200
Paine Field Snohomish County PAINE Tower132.950
Paine Field Snohomish County SEATTLE Approach/Departure128.500

Approach frequencies

ILS-cat-IIRW16R109.318.00mi
3° GSRW16R109.318.00mi
Nearby Points of Interest:
Rucker House
-
U.S. Post Office and Customshouse
-
Everett City Hall
-
Snohomish County Courthouse
-
Everett Carnegie Library
-
Hewitt Avenue Historic District
-
Commerce Building
-
Community Center and War Memorial Building
-
Roland Hartley House
-
McCabe Building
-
Swalwell Cottage
-
Weyerhaeuser Office Building
-
North Coast Casket Company Building
-
Andrew Carnegie Library
-
Snohomish County Centennial Trail
-
North Creek School
-
Indian Shaker Church
-
Lilly Kirk House
-
Harry Vanderbilt Wurdemann House
-
St. Anne's Roman Catholic Church
-
Marysville Opera House
-
Sorenson House
-
Dr. Reuben Chase House
-
St. Edward Seminary
-
Naval Station Puget Sound

Runway info

Runway 16R / 34L
 length2752m (9029ft)
 bearing179° / 359°
 width46m (150ft)
 surfaceasphalt
 blast zone189m (620ft) / 123m (404ft)
Runway 16L / 34R
 length915m (3002ft)
 bearing179° / 359°
 width23m (75ft)
 surfaceasphalt

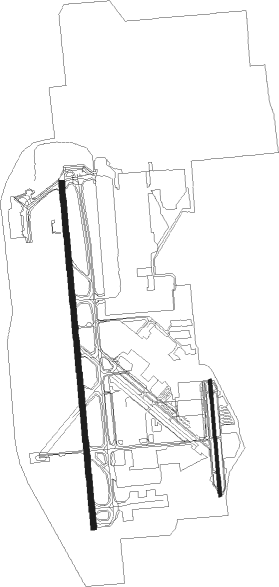

Airport layout


Taxiway locations

 A  A1  A10  A2  A3  A4  A5  A6
 A7  A8  A9  AA  C  D  D1  D2
 F1  F2  F3  F5  G1  G2  G3  G4
 G5  J  K1  K6  K7  L
Parking locations

 1  2  3  Aviation  Boeing  Central  Delivery  East
 Everett  Flying  Future  Historic  Museum  West

Nearby beacons

codeidentifierdistbearingfrequency
PAEPAINE (EVERETT) VOR/DME0.716°110.60
AWWATON (ARLINGTON) NDB11.337°382
CVVPENN COVE VOR/DME26.9307°117.20
SEASEATTLE VORTAC28.3183°116.80
NUWWHIDBEY ISLAND (OAK HARBO TACAN30.9320°113.80
BVSSKAGIT/BAY VIEW (BURLINGTON) NDB34.1346°240
TCMMC CHORD (TACOMA) TACAN46.2194°109.60
FHRFRIDAY HARBOR NDB46.9309°284
OLMOLYMPIA VORTAC61.5214°113.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
RW16 (ALL)
 OLM261.534°
 CHINS458.8317°
RW16R
 DEVYN218.4262°
RW34 (ALL)
 OLM261.534°
 CHINS458.8317°
RW34L
 DEVYN218.4262°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16RYAMEKE (165°)AMEKE
EYWOK (6mi, 143°) 3000ft
RW16RYPAE (196°)PAE
EYWOK (11mi, 356°) 3000ft
EYWOK (turn) 3000ft
 RNAVEYWOK 3000ft
ITIPE (7mi, 179°) 2000ft
KPAE (5mi, 176°) 620ft
(6665mi, 111°) 1100ft
ECEPO (6673mi, 291°) 2000ft
ECEPO (turn)
RW16RZAMEKE (165°)AMEKE
WEBVE (4mi, 123°) 3000ft
RW16RZPAE (196°)PAE
WEBVE (14mi, 357°) 3000ft
WEBVE (turn) 3000ft
 RNAVWEBVE 3000ft
JUGBA (6mi, 179°) 3000ft
HITUT (6mi, 179°) 1220ft
KPAE (3mi, 174°) 620ft
(6665mi, 111°) 1100ft
ECEPO (6673mi, 291°) 3000ft
ECEPO (turn)
RW34LPAE (196°)PAE
RARYO (10mi, 181°) 3000ft
RARYO (turn) 3000ft
RW34LSEA (3°)SEA
RARYO (19mi, 5°) 3000ft
 RNAVRARYO 3000ft
USDAW (5mi, 359°) 2000ft
ZEREN (3mi, 359°) 1160ft
KPAE (2mi, 5°) 629ft
(6665mi, 111°) 1008ft
EYWOK (6660mi, 291°) 3000ft
EYWOK (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHINS4BRUKKVHFright116 (296)°1.0min timedICAO rules
CHINS4RADDYVHFright104 (284)°1.0min timedICAO rules
CHINS4SUNEDVHFright108 (288)°1.0min timedICAO rules
DEVYN2HAUSHVHFright82 (262)°DME 10.0miICAO rules
DEVYN2TUNNLVHFright79 (259)°> 13000ftDME 10.0miICAO rules
OLM2BTGNDBright163 (343)°18000ft - 45000ft1.5min timedICAO rules
OLM2OLMNDBleft151 (331)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
