Airports for X-Plane

West Palm Beach - Palm Beach Intl

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityPalm Beach County
Elevation19ft (6m)
TimezoneGMT -5
Coordinates26.68317, -80.09558
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPBI
IATA codePBI
FAA codePBI

Communication

Palm Beach Intl ASOS123.750
Palm Beach Intl Clearance DEL121.600
Palm Beach Intl Ground Control121.900
Palm Beach Intl Tower119.100
Palm Beach Intl Approach125.200
Palm Beach Intl Approach128.300
Palm Beach Intl Departure125.200
Palm Beach Intl Departure128.300

Approach frequencies

ILS-cat-IRW10L111.918.00mi
ILS-cat-IRW28R111.918.00mi
3° GSRW10L111.918.00mi
3° GSRW28R111.918.00mi
Nearby Points of Interest:
Vedado Historic District
-
Flamingo Park Historic Residential District
-
Clifton Rice House
-
Grandview Heights Historic District
-
Prospect Park-Southland Park Historic District
-
Central Park Historic District
-
El Cid Historic District
-
Old Palm Beach Junior College Building
-
Mango Promenade Historic District
-
Norton House
-
Grant Van Valkenburg House
-
Ferndix Building
-
Clematis Street Historic Commercial District
-
Mickens House
-
Professional Building
-
American National Bank Building
-
Northwest Historic District
-
Palm Beach Mercantile Company
-
Comeau Building
-
Alfred J. Comeau House
-
Guaranty Building
-
Hatch's Department Store
-
Bingham-Blossom House
-
Pine Ridge Hospital
-
Via Mizner

Runway info

Runway 10L / 28R
 length3046m (9993ft)
 bearing93° / 273°
 width46m (150ft)
 surfaceasphalt
 displ threshold363m (1191ft) / 248m (814ft)
 blast zone60m (197ft) / 59m (194ft)
Runway 14 / 32
 length2115m (6939ft)
 bearing132° / 312°
 width46m (150ft)
 surfaceasphalt
 displ threshold0m (0ft) / 130m (427ft)
 blast zone62m (203ft) / 81m (266ft)
Runway 10R / 28L
 length978m (3209ft)
 bearing93° / 273°
 width23m (75ft)
 surfaceasphalt
 blast zone60m (197ft) / 58m (190ft)

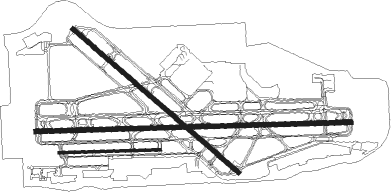

Airport layout


Taxiway locations

 A  B  B1  B2  C  C1  C11  C12
 C13  C2  C3  C4  C5  C6  C9  D
 E  F  F1  F2  H  L  L1  L3
 L4  L6  L7  M  N  P  R1  R2
 R3  R4  T  T1  W
Parking locations

 A-A  A-B  A-C  A-D  Atlantic  AUTEC  B1  B10
 B11  B12  B14  B2  B3  B4  B5  B6
 B7  B8  B9  Blue  C1  C10  C11  C12
 C14  C15  C16  C2  C3  C4  C5  C6
 C7  C8  C9  Cargo  Helicopter  Jet  Mil  NB1
 NB2  NB3  NB4  NB5  NB6  Net  PBSO  Ramp
 Rotortech  Signature  Trauma  WB1  West

Nearby beacons

codeidentifierdistbearingfrequency
PBIPALM BEACH VORTAC0.5109°115.70
UTXUNITED NDB18.6313°405
FXPRAIZ (FT LAUDERDALE) NDB31.8202°221
PHKPAHOKEE VOR/DME32.5279°115.40
FLLFORT LAUDERDALE VOR/DME36.7187°114.40
FPRFORT PIERCE NDB50.4341°275
DHPDOLPHIN (MIAMI) VORTAC54.7196°113.90
VKZVIRGINIA KEY VOR/DME56184°117.10
TRVTREASURE (VERO BEACH) VORTAC63.3338°117.30
ZBVBIMINI VORTAC72.9141°116.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW10L
 SLIDZ2178mi28°
 MIXAE351mi90°
 PBI131mi200°
 WELLY137mi264°
 OLAKE171mi283°
 TBIRD482mi323°
RW10R
 PBI131mi200°
RW14
 SLIDZ2178mi28°
 MIXAE351mi90°
 PBI131mi200°
 WELLY137mi264°
 OLAKE171mi283°
 TBIRD482mi323°
RW28L
 PBI131mi200°
RW28R
 SLIDZ2178mi28°
 MIXAE351mi90°
 PBI131mi200°
 WELLY137mi264°
 OLAKE171mi283°
 TBIRD482mi323°
RW32
 SLIDZ2178mi28°
 MIXAE351mi90°
 PBI131mi200°
 WELLY137mi264°
 OLAKE171mi283°
 TBIRD482mi323°

STAR starting pointsdistanceinbound heading
ALL
 TTYLR149.3106°
 FEBAD136.8108°
 MLB290.1159°
 RASAE225.2172°
 STOOP134.2176°
RW10 (ALL)
 MAHHI220.8299°
RW10L
 SHRVY126.696°
 CPTAN127.2183°
 CLMNT122.2205°
RW14
 SHRVY126.696°
 CPTAN127.2183°
 CLMNT122.2205°
 MAHHI220.8299°
RW28 (ALL)
 MAHHI220.8299°
RW28R
 SHRVY126.696°
 CPTAN127.2183°
 CLMNT122.2205°
RW32
 SHRVY126.696°
 CPTAN127.2183°
 CLMNT122.2205°
 MAHHI220.8299°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LYGULLO (93°)GULLO 5000ft
WILBA (7mi, 93°) 3000ft
RW10LYPBI (289°)PBI
WILBA (14mi, 273°) 3000ft
WILBA (turn) 3000ft
 RNAVWILBA 3000ft
ZISUR (7mi, 92°) 2000ft
PASTE (5mi, 92°) 500ft
KPBI (2mi, 92°) 68ft
(4874mi, 108°) 1000ft
MORGA (4881mi, 289°) 3000ft
MORGA (turn)
RW10LZGULLO (93°)GULLO 5000ft
WILBA (7mi, 93°) 3000ft
ZISUR (7mi, 92°) 2000ft
RW10LZSANZZ (174°)SANZZ 4000ft
SHDEE (7mi, 258°) 3000ft
ZISUR (6mi, 174°) 2000ft
 RNAVZISUR 2000ft
KPBI (7mi, 92°) 68ft
(4874mi, 108°) 1000ft
MORGA (4881mi, 289°) 3000ft
MORGA (turn)
RW14-ZGULLO (93°)GULLO 5000ft
OGGAN (11mi, 85°) 3100ft
QELAH (5mi, 75°) 1800ft
ZABTA (3mi, 103°) 1100ft
RW14-ZJEMAL (132°)JEMAL 3000ft
RIBEE (6mi, 132°) 1500ft
ZABTA (1mi, 132°) 1100ft
 RNAVZABTA 1100ft
KPBI (4mi, 133°) 68ft
(4874mi, 108°) 354ft
CUSIK (4872mi, 288°)
LANCH (9mi, 199°) 2000ft
LANCH (turn)
RW28RYPBI (289°)PBI
CUPED (11mi, 92°) 3000ft
CUPED (turn) 3000ft
 RNAVCUPED 3000ft
CAFEN (4mi, 273°) 1900ft
RELTY (2mi, 273°) 1500ft
KPBI (5mi, 273°) 76ft
(4874mi, 108°) 500ft
MORGA (4881mi, 289°) 3000ft
MORGA (turn)
RW28RZCOTEB (339°)COTEB 6000ft
FENED (5mi, 94°) 4800ft
CAFEN (6mi, 4°) 1900ft
RELTY (2mi, 273°) 1500ft
RW28RZCUPED (273°)CUPED 3000ft
CAFEN (4mi, 273°) 1900ft
RELTY (2mi, 273°) 1500ft
RW28RZHETMO (230°)HETMO 4000ft
JERMA (4mi, 169°) 3200ft
RELTY (5mi, 224°) 1500ft
 RNAVRELTY 1500ft
KPBI (5mi, 273°) 76ft
(4874mi, 108°) 500ft
MORGA (4881mi, 289°) 3000ft
MORGA (turn)
RW32-ZBEKAH (51°)BEKAH 6000ft
QATHY (7mi, 111°) 3900ft
RUMDE (5mi, 37°) 1500ft
RW32-ZHETMO (230°)HETMO 4000ft
KARRL (4mi, 173°) 3500ft
PALLM (5mi, 173°) 3500ft
RUMDE (6mi, 247°) 1500ft
RW32-ZLIDRE (312°)LIDRE 3000ft
RUMDE (8mi, 312°) 1500ft
 RNAVRUMDE 1500ft
KPBI (5mi, 312°) 73ft
(4874mi, 108°) 322ft
FOMID (4880mi, 288°)
MORGA (11mi, 359°) 3000ft
MORGA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CLMNT1AYBIDVHFright30 (210)°DME 10.0miICAO rules
CLMNT1CLMNTVHFleft30 (210)°DME 10.0miICAO rules
CLMNT1SLUESVHFleft30 (210)°DME 10.0miICAO rules
CPTAN1BORRDVHFleft346 (166)°DME 10.0miICAO rules
CPTAN1CPTANVHFleft341 (161)°DME 10.0miICAO rules
CPTAN1FALTIVHFleft346 (166)°DME 10.0miICAO rules
CPTAN1JOEYYVHFright346 (166)°DME 10.0miICAO rules
MAHHI2ISAACVHFright128 (308)°DME 10.0miICAO rules
SHRVY1GAWKSVHFleft287 (107)°DME 15.0miICAO rules
SHRVY1HORUTVHFright349 (169)°DME 10.0miICAO rules
SHRVY1MOLIEVHFright349 (169)°DME 10.0miICAO rules
SHRVY1RACNOVHFright316 (136)°DME 10.0miICAO rules
SHRVY1ROKSYVHFleft273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
