Airports for X-Plane

Phoenix - Phoenix Sky Harbor Intl

Airport details

CountryUnited States of America
StateArizona
RegionK2
AirspaceAlbuquerque Ctr
MunicipalityPhoenix
Elevation1130ft (344m)
TimezoneGMT -7
Coordinates33.43428, -112.01158
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPHX
IATA codePHX
FAA codePHX

Communication

Phoenix Sky Harbor Intl ATIS127.575
Phoenix Sky Harbor Intl UNICOM122.850
Phoenix Sky Harbor Intl UNICOM122.950
Phoenix Sky Harbor Intl Clearance DEL118.100
Phoenix Sky Harbor Intl Ground Control119.750
Phoenix Sky Harbor Intl Ground Control132.550
Phoenix Sky Harbor Intl Tower120.900
Phoenix Sky Harbor Intl Tower118.700
Phoenix Sky Harbor Intl Approach/Departure124.100
Phoenix Sky Harbor Intl Approach/Departure119.200
Phoenix Sky Harbor Intl Approach/Departure124.900
Phoenix Sky Harbor Intl Approach/Departure120.700
Phoenix Sky Harbor Intl Approach/Departure126.800
Phoenix Sky Harbor Intl Approach/Departure123.700
Phoenix Sky Harbor Intl Approach/Departure128.650

Approach frequencies

ILS-cat-IRW26111.7518.00mi
ILS-cat-IRW07L111.518.00mi
ILS-cat-IRW25L110.7518.00mi
ILS-cat-IRW08111.7518.00mi
ILS-cat-IRW07R110.7518.00mi
3° GSRW08111.7518.00mi
3° GSRW25L110.7518.00mi
3° GSRW07L111.518.00mi
3° GSRW26111.7518.00mi
3° GSRW07R110.7518.00mi
Nearby Points of Interest:
Bethlehem Baptist Church
-
Double Butte Cemetery
-
Garfield Methodist Church
-
Phoenix Union High School
-
Sun Mercantile Building
-
Phoenix Homesteads Historic District
-
Heard Building
-
Security Building
-
Orpheum Lofts
-
United States Post Office in Phoenix
-
Rancho Joaquina House
-
Knights of Pythias Building
-
Union Station
-
First Baptist Church
-
J. T. Whitney Funeral Home
-
Temple Beth Israel
-
Mill Avenue Bridges
-
Niels Petersen House
-
Webster Auditorium
-
Helen Anderson House
-
Phoenix Towers
-
Smurthwaite House
-
Phoenix Carnegie Library and Library Park
-
Evans House
-
Harrington-Birchett House

Runway info

Runway 8 / 26
 length3495m (11467ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
 displ threshold274m (899ft) / 0m (0ft)
 blast zone115m (377ft) / 0m (0ft)
Runway 7L / 25R
 length3133m (10279ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
 blast zone122m (400ft) / 255m (837ft)
Runway 7R / 25L
 length2372m (7782ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
 blast zone152m (499ft) / 214m (702ft)

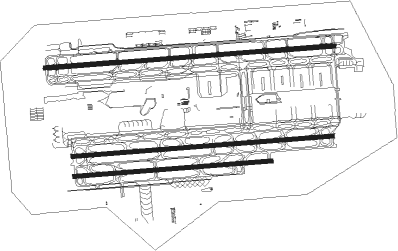

Airport layout


Taxiway locations

 A  A1  A10  A11  A12  A2  A3  A4
 A5  A6  A7  A8  A9  B  B1  B10
 B11  B12  B13  B14  B2  B3  B4  B5
 B6  B7  B8  B9  C  C1  C10  C2
 C3  C4  C5  C6  C7  C8  C9  D
 D1  D10  D11  D12  D13  D2  D3  D4
 D5  D6  D7  D8  D9  E  E10  E11
 E12  E13  E3  E4  E5  E6  E7  E8
 E9  F  F10  F11  F12  F13  F3  F4
 F6  F8  F9  G1  G2  G3  G4  G5
 G6  G7  G8  H  H1  H2  H3  H4
 H5  H6  H7  R  S  T
Parking locations

 A1  A10  A11  A12  A13  A14  A15  A16
 A17  A18  A19  A2  A20  A22  A24  A25
 A26  A27  A28  A29  A3  A30  A4  A5
 A6  A7  A8  A9  B1  B10  B11  B12
 B13  B14  B15  B16  B17  B19  B2  B20
 B22  B23  B24  B25  B27  B28  B3  B4
 B5  B6  B7  B8  B9  C1  C10  C11
 C12  C13  C15  C16  C18  C19  C2  C20
 C3  C6  C7  C8  C9  D1  D2  D3
 D4  D5  D6  D7  D8  E1  E10  E3
 E4  E5  E6  E7  E8  E9  F1  F10
 F2  F3  F4  F5  F6  F7  F8  F9
 Fuel  National  North  South  Terminal  West

Nearby beacons

codeidentifierdistbearingfrequency
PXRPHOENIX VORTAC292°115.60
LUFLUKE (GLENDALE) TACAN19.4286°113
IWAWILLIE (PHOENIX) VORTAC19.7110°113.30
TFDSTANFIELD (CASA GRANDE) VORTAC33.3169°114.80
BXKBUCKEYE VORTAC40.7271°110.60
GBNGILA BEND VORTAC43.9234°116.60
PANDME59.740°116.35

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW07 (ALL)
 QUAKY1, MRBIL1155mi35°
 FORPE1155mi71°
 BROAK1271mi80°
 ECLPS1158mi111°
 STRRM198mi141°
 FYRBD1106mi251°
 KEENS292mi282°
 ZEPER295mi321°
RW07L
 SJN9275mi73°
 TFD498mi141°
 MOBIE444mi234°
 CHILY4145mi314°
RW07R
 SJN9275mi73°
 TFD498mi141°
 MOBIE444mi234°
 CHILY4145mi314°
RW08
 QUAKY1, MRBIL1155mi35°
 FORPE1155mi71°
 SJN9275mi73°
 BROAK1271mi80°
 ECLPS1158mi111°
 STRRM1, TFD498mi141°
 MOBIE444mi234°
 FYRBD1106mi251°
 KEENS292mi282°
 CHILY4145mi314°
 ZEPER295mi321°
RW25 (ALL)
 BROAK1271mi80°
 STRRM1, TFD498mi141°
 MOBIE444mi234°
 FYRBD1106mi251°
 KEENS292mi282°
RW25L
 QUAKY1, MRBIL1155mi35°
 FORPE1155mi71°
 SJN9275mi73°
 ECLPS1158mi111°
 CHILY4145mi314°
 ZEPER295mi321°
RW25R
 QUAKY1, MRBIL1155mi35°
 FORPE1155mi71°
 SJN9275mi73°
 ECLPS1158mi111°
 CHILY4145mi314°
 ZEPER295mi321°
RW26
 QUAKY1, MRBIL1155mi35°
 FORPE1155mi71°
 SJN9275mi73°
 BROAK1271mi80°
 ECLPS1158mi111°
 TFD4, STRRM198mi141°
 MOBIE444mi234°
 FYRBD1106mi251°
 KEENS292mi282°
 CHILY4145mi314°
 ZEPER295mi321°

STAR starting pointsdistanceinbound heading
ALL
 COYOT539.6169°
 DSERT263.0199°
 JESSE387.1223°
 BUNTR336.4234°
 SUNSS861.0306°
RW07 (ALL)
 BLH5, ARLIN434.977°
 EAGUL640.4234°
 PINNG140.9315°
RW07L
 HYDRR141.679°
 BRUSR139.6169°
RW07R
 HYDRR141.679°
 BRUSR139.6169°
RW08
 ARLIN4, BLH534.977°
 HYDRR141.679°
 BRUSR139.6169°
 EAGUL640.4234°
 PINNG140.9315°
RW25 (ALL)
 ARLIN4, BLH534.977°
 HYDRR141.679°
 BRUSR139.6169°
RW25L
 EAGUL640.4234°
 PINNG140.9315°
RW25R
 EAGUL640.4234°
 PINNG140.9315°
RW26
 ARLIN4, BLH534.977°
 HYDRR141.679°
 BRUSR139.6169°
 EAGUL640.4234°
 PINNG140.9315°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07LYBXK (91°)BXK
AVONA (25mi, 91°) 5000ft
UPNIW (3mi, 100°) 4000ft
RW07LYPXR (272°)PXR
UPNIW (15mi, 270°) 4000ft
UPNIW (turn) 4000ft
 RNAVUPNIW 4000ft
YECXY (6mi, 90°) 3000ft
PETRS (4mi, 90°) 1840ft
KPHX (3mi, 87°) 1167ft
UXCUN (7mi, 91°)
IWA (14mi, 119°) 5000ft
IWA (turn)
RW07LZBXK (91°)BXK
AVONA (25mi, 91°) 5000ft
UPNIW (3mi, 100°) 4000ft
 RNAVUPNIW 4000ft
YECXY (6mi, 90°) 3000ft
KPHX (6mi, 89°) 1167ft
UXCUN (7mi, 91°)
IWA (14mi, 119°) 5000ft
IWA (turn)
RW07RYBXK (91°)BXK
ALLIS (10mi, 91°) 5000ft
JEPES (18mi, 93°) 4300ft
RW07RYPXR (272°)PXR
JEPES (15mi, 269°) 4300ft
JEPES (turn) 4300ft
 RNAVJEPES 4300ft
OVNUY (6mi, 90°) 3000ft
ADWOT (4mi, 90°) 1840ft
KPHX (3mi, 85°) 1168ft
NAVOQ (6mi, 93°)
IWA (14mi, 118°) 5000ft
IWA (turn)
RW07RZBXK (91°)BXK
ALLIS (10mi, 91°) 5000ft
JEPES (18mi, 93°) 4300ft
 RNAVJEPES 4300ft
OVNUY (6mi, 90°) 3000ft
KPHX (6mi, 88°) 1168ft
NAVOQ (6mi, 93°)
IWA (14mi, 118°) 5000ft
IWA (turn)
RW08-YBXK (91°)BXK
ALLIS (10mi, 91°) 5000ft
ETVIW (18mi, 91°) 4100ft
RW08-YPXR (272°)PXR
ETVIW (14mi, 272°) 4100ft
ETVIW (turn) 4100ft
 RNAVETVIW 4100ft
OJGIL (6mi, 90°) 3000ft
KPHX (6mi, 93°) 1167ft
YOKXO (7mi, 87°)
IWA (14mi, 121°) 5000ft
IWA (turn)
RW08-ZBXK (91°)BXK
ALLIS (10mi, 91°) 5000ft
ETVIW (18mi, 91°) 4100ft
 RNAVETVIW 4100ft
OJGIL (6mi, 90°) 3000ft
KPHX (6mi, 93°) 1167ft
YOKXO (7mi, 87°)
IWA (14mi, 121°) 5000ft
IWA (turn)
RW25LYIWA (290°)IWA
HAMEK (9mi, 324°) 5000ft
GIPSE (4mi, 270°) 4000ft
RW25LYZERLO (252°)ZERLO
FIXAR (11mi, 203°) 7000ft
HAMEK (7mi, 270°) 5000ft
GIPSE (4mi, 270°) 4000ft
 RNAVGIPSE 4000ft
NAVOQ (4mi, 270°) 3000ft
TEKUY (3mi, 270°) 1880ft
KPHX (3mi, 276°) 1175ft
OVNUY (6mi, 268°)
BXK (34mi, 272°) 5000ft
BXK (turn)
RW25LZZERLO (252°)ZERLO
FIXAR (11mi, 203°) 7000ft
HAMEK (7mi, 270°) 5000ft
 RNAVHAMEK 5000ft
GIPSE (4mi, 270°) 4000ft
NAVOQ (4mi, 270°) 3000ft
KPHX (6mi, 273°) 1175ft
OVNUY (6mi, 268°)
BXK (34mi, 272°) 5000ft
BXK (turn)
RW25RYIWA (290°)IWA
TEYYI (9mi, 325°) 5000ft
ZAMEX (4mi, 270°) 4000ft
RW25RYZERLO (252°)ZERLO
UVIYO (10mi, 202°) 7000ft
TEYYI (7mi, 270°) 5000ft
ZAMEX (4mi, 270°) 4000ft
 RNAVZAMEX 4000ft
UXCUN (3mi, 270°) 3000ft
YASCU (3mi, 270°) 1860ft
KPHX (3mi, 273°) 1189ft
YECXY (6mi, 269°)
BXK (34mi, 272°) 5000ft
BXK (turn)
RW25RZZERLO (252°)ZERLO
UVIYO (10mi, 202°) 7000ft
TEYYI (7mi, 270°) 5000ft
 RNAVTEYYI 5000ft
ZAMEX (4mi, 270°) 4000ft
UXCUN (3mi, 270°) 3000ft
KPHX (7mi, 271°) 1189ft
YECXY (6mi, 269°)
BXK (34mi, 272°) 5000ft
BXK (turn)
RW26-YIWA (290°)IWA
TODRE (9mi, 327°) 5000ft
JAGAL (4mi, 270°) 4000ft
RW26-YZERLO (252°)ZERLO
CERUN (10mi, 203°) 7000ft
TODRE (7mi, 270°) 5000ft
JAGAL (4mi, 270°) 4000ft
 RNAVJAGAL 4000ft
YOKXO (3mi, 270°) 3000ft
KPHX (7mi, 267°) 1189ft
OJGIL (6mi, 273°)
BXK (34mi, 271°) 5000ft
BXK (turn)
RW26-ZZERLO (252°)ZERLO
CERUN (10mi, 203°) 7000ft
TODRE (7mi, 270°) 5000ft
 RNAVTODRE 5000ft
JAGAL (4mi, 270°) 4000ft
YOKXO (3mi, 270°) 3000ft
KPHX (7mi, 267°) 1189ft
OJGIL (6mi, 273°)
BXK (34mi, 271°) 5000ft
BXK (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARLIN4ARLINVHFright256 (76)°1.0min timedICAO rules
ARLIN4HYDRRVHFright215 (35)°1.0min timedICAO rules
BLH5ARLINVHFright256 (76)°1.0min timedICAO rules
BLH5HYDRRVHFright215 (35)°1.0min timedICAO rules
BRUSR1BRUSRVHFright336 (156)°DME 8.0miICAO rules
BRUSR1DRKNDBleft349 (169)°DME 11.0mi265
BRUSR1DUTEYVHFleft338 (158)°DME 10.0miICAO rules
BRUSR1TENTSVHFright339 (159)°DME 10.0miICAO rules
BRUSR1WOTROVHFright292 (112)°DME 10.0miICAO rules
BUNTR3GUMMOVHFright360 (180)°6001ft - 14000ftDME 8.0mi210
BUNTR3GUPNDBleft38 (218)°< 17999ft1.0min timedICAO rules
BUNTR3HOMRRVHFright41 (221)°< 17999ftDME 8.0miICAO rules
BUNTR3PICHRVHFright35 (215)°< 17999ftDME 10.0miICAO rules
BUNTR3ZUNNDBleft73 (253)°18000ft - 45000ft1.5min timedICAO rules
COYOT5BRUSRVHFright336 (156)°DME 8.0miICAO rules
COYOT5DRKNDBleft349 (169)°DME 11.0mi265
COYOT5HATRKVHFleft307 (127)°DME 7.0mi265
COYOT5SINHOVHFright288 (108)°DME 10.0mi265
DSERT2DSERTVHFleft345 (165)°DME 10.0miICAO rules
DSERT2SHOCKVHFleft2 (182)°DME 10.0miICAO rules
EAGUL6EAGULVHFright35 (215)°DME 10.0miICAO rules
EAGUL6GUPNDBleft38 (218)°< 17999ft1.0min timedICAO rules
EAGUL6HOMRRVHFright41 (221)°< 17999ftDME 8.0miICAO rules
EAGUL6ZUNNDBleft73 (253)°18000ft - 45000ft1.5min timedICAO rules
HYDRR1BLHNDBleft268 (88)°< 60000ftDME 12.0miICAO rules
HYDRR1GEELAVHFright256 (76)°< 17999ftDME 7.0miICAO rules
HYDRR1HYDRRVHFright215 (35)°1.0min timedICAO rules
JESSE3BUNTRVHFright34 (214)°6001ft - 14000ftDME 7.0mi210
JESSE3GUMMOVHFright360 (180)°6001ft - 14000ftDME 8.0mi210
JESSE3GUPNDBleft38 (218)°< 17999ft1.0min timedICAO rules
JESSE3INWNDBright248 (68)°1.0min timedICAO rules
JESSE3ZUNNDBleft73 (253)°18000ft - 45000ft1.5min timedICAO rules
PINNG1BNNKRVHFleft92 (272)°DME 10.0miICAO rules
PINNG1BRDEYVHFleft112 (292)°DME 10.0miICAO rules
PINNG1PINNGVHFleft112 (292)°DME 10.0miICAO rules
SUNSS8BAYBIVHFleft120 (300)°DME 9.0miICAO rules
SUNSS8ITEMMVHFleft93 (273)°DME 10.0miICAO rules
SUNSS8SQUEZVHFleft120 (300)°DME 7.0miICAO rules
*) magnetic outbound (inbound) holding course
