Airports for X-Plane

Pittsburgh - Pittsburgh Intl

Airport details

CountryUnited States of America
StatePennsylvania
RegionK6
AirspaceCleveland Ctr
MunicipalityMoon Township
Elevation1204ft (367m)
TimezoneGMT -5
Coordinates40.49589, -80.22248
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPIT
IATA codePIT
FAA codePIT

Communication

Pittsburgh Intl ATIS-A127.250
Pittsburgh Intl ATIS-D135.900
Pittsburgh Intl Clearance DEL126.750
Pittsburgh Intl Ground Control NORTH127.800
Pittsburgh Intl Ground Control SOUTH121.900
Pittsburgh Intl Tower RWY 10C-28C & 14-32135.025
Pittsburgh Intl Tower RWY 10R-28L119.100
Pittsburgh Intl Tower RWY 10L-28R128.300
Pittsburgh Intl Approach E-S123.950
Pittsburgh Intl Approach S-W120.875
Pittsburgh Intl Approach W-N121.250
Pittsburgh Intl Approach N-E124.150
Pittsburgh Intl Departure NORTH118.650
Pittsburgh Intl Departure SOUTH119.350

Approach frequencies

ILS-cat-IIIRW10L111.718.00mi
ILS-cat-IIIRW10R108.918.00mi
ILS-cat-IIRW28R111.718.00mi
ILS-cat-IRW32111.318.00mi
ILS-cat-IRW28L108.918.00mi
3° GSRW32111.318.00mi
3° GSRW28L108.918.00mi
3° GSRW10L111.718.00mi
3° GSRW28R111.718.00mi
3° GSRW10R108.918.00mi
Nearby Points of Interest:
Mooncrest Historic District
-
Coraopolis Armory
-
Coraopolis Railroad Station
-
United States Post Office-Sewickley Branch
-
Nicholas Way House
-
David Shields House
-
Elmridge
-
Wilpen Hall
-
MV Mississippi
-
Dixmont State Hospital
-
Walker-Ewing-Glass Log House
-
Walker-Ewing Log House
-
Oakdale Public School
-
Davis Island Lock and Dam Site
-
B.F. Jones Memorial Library
-
Thornburg Historic District
-
Aliquippa Station
-
Legionville
-
McKees Rocks Bridge
-
Campbell Building
-
Andrew Carnegie Free Library
-
John Frew House
-
David Littell House
-
Oliver High School
-
Conroy Education Center

Runway info

Runway 10R / 28L
 length3498m (11476ft)
 bearing92° / 272°
 width61m (200ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 10L / 28R
 length3195m (10482ft)
 bearing91° / 271°
 width46m (151ft)
 surfaceasphalt
 blast zone183m (600ft) / 255m (837ft)
Runway 10C / 28C
 length3277m (10751ft)
 bearing92° / 272°
 width46m (151ft)
 surfaceasphalt
 displ threshold142m (466ft) / 183m (600ft)
 blast zone122m (400ft) / 122m (400ft)
Runway 14 / 32
 length2469m (8100ft)
 bearing129° / 309°
 width46m (151ft)
 surfaceconcrete
 displ threshold0m (0ft) / 103m (338ft)
 blast zone213m (699ft) / 81m (266ft)

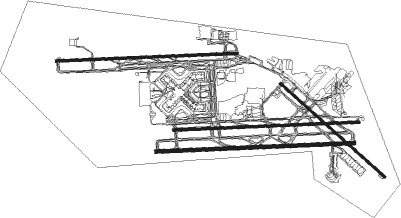

Airport layout


Taxiway locations

 A  AA  B  B1  B2  B3  B4  B5
 B6  B7  B8  C  C1  C2  C3  C4
 C5  D  D1  D2  D3  E  E2  F
 F1  F2  F3  F4  F5  G  M  N
 N2  N3  N4  N5  P  P1  Q  R
 S  T  V  V1  V2  V3  V4  V5
 V6  W  Z
Parking locations

 A1  A10  A12  A18  A2  A3  A4  A5
 A6  A7  A8  A9  ANG  Atlantic  B26  B28
 B29  B30  B31  B32  B33  B34  B35  B36
 B37  C51  C52  C53  C54  C55  C56  C57
 C59  C61  D76  D77  D78  D79  D80  D81
 D82  D83  D84  D85  D86  D88  Dick's  FEDEX
 Maintence  MP  UPS  USAF

Nearby beacons

codeidentifierdistbearingfrequency
MMJ(PITTSBURGH) DME1.3105°112
AGCALLEGHENY (PITTSBURGH) VOR/DME15.4140°110
EWCELLWOOD CITY VOR/DME19.72°115.80
HLGWHEELING VOR/DME21.2236°112.20
UCPCASTLE (NEW CASTLE) NDB32.8340°272
CFXCADIZ NDB39.3252°239
AIRBELLAIRE VOR/DME39.6231°117.10
VVCAMOR (CONNELLSVILLE) NDB42.8142°299
YNFETCH (YOUNGSTOWN/WARREN) NDB45.5332°338
IHDINDIAN HEAD VORTAC50.5121°108.20
CIPDME52.250°112.90
YNGYOUNGSTOWN VORTAC54.1332°109
ACOAKRON VOR/DME57.7302°114.40
MGWMORGANTOWN VOR/DME58.8159°111.60
FKLFRANKLIN VOR58.921°109.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
RW10 (ALL)
 FEWGA725.251°
 JESEY419.0133°
 HAYNZ724.7235°
 DEMME424.6303°
RW28 (ALL)
 FEWGA725.251°
 JESEY419.0133°
 HAYNZ724.7235°
 DEMME424.6303°
RW32
 FEWGA725.251°
 JESEY419.0133°
 HAYNZ724.7235°
 DEMME424.6303°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10CYAGC (320°)AGC
NIMMS (27mi, 293°) 4000ft
NIMMS (turn) 4000ft
PLAZE (4mi, 91°) 4000ft
RW10CYCUTTA (132°)CUTTA
NIMMS (23mi, 166°) 4000ft
PLAZE (4mi, 91°) 4000ft
RW10CYWISKE (51°)WISKE
NIMMS (23mi, 19°) 4000ft
PLAZE (4mi, 91°) 4000ft
 RNAVPLAZE 4000ft
FORMM (4mi, 91°) 3000ft
KPIT (7mi, 89°) 1192ft
(4960mi, 117°) 1438ft
GUBLE (4956mi, 297°)
AGC (13mi, 155°) 4000ft
AGC (turn)
RW10CZCUTTA (132°)CUTTA
DAREC (13mi, 169°) 5000ft
NIMMS (10mi, 162°) 5000ft
RW10CZWISKE (51°)WISKE
FOMSA (14mi, 15°) 5000ft
NIMMS (9mi, 26°) 5000ft
 RNAVNIMMS 5000ft
FORMM (8mi, 91°) 3000ft
KPIT (7mi, 89°) 1192ft
HAVRU (7mi, 94°)
JAPAV (5mi, 130°)
AGC (9mi, 192°) 4000ft
AGC (turn)
RW10LAGC (320°)AGC
STOWI (26mi, 295°) 4000ft
STOWI (turn) 4000ft
RW10LCUTTA (132°)CUTTA
STOWI (23mi, 163°) 4000ft
RW10LEWC (182°)EWC
STOWI (24mi, 225°) 4000ft
STOWI (turn) 4000ft
RW10LWISKE (51°)WISKE
STOWI (24mi, 21°) 4000ft
 RNAVSTOWI 4000ft
RACOO (6mi, 91°) 3000ft
ZAXAB (3mi, 91°) 2040ft
KPIT (5mi, 94°) 1262ft
(4960mi, 117°) 1900ft
EWC (4961mi, 297°) 4000ft
EWC (turn)
RW10RYAGC (320°)AGC
MUFTI (27mi, 293°) 5000ft
MUFTI (turn) 5000ft
WIILE (4mi, 91°) 4000ft
RW10RYCUTTA (132°)CUTTA
MUFTI (23mi, 166°) 5000ft
WIILE (4mi, 91°) 4000ft
RW10RYWISKE (51°)WISKE
MUFTI (23mi, 19°) 5000ft
WIILE (4mi, 91°) 4000ft
 RNAVWIILE 4000ft
STARG (4mi, 91°) 3000ft
KPIT (7mi, 88°) 1186ft
(4960mi, 117°) 1443ft
DITPE (4956mi, 297°)
AGC (13mi, 154°) 4000ft
AGC (turn)
RW10RZCUTTA (132°)CUTTA
DAREC (13mi, 169°) 5000ft
MUFTI (11mi, 162°) 5000ft
RW10RZWISKE (51°)WISKE
FOMSA (14mi, 15°) 5000ft
MUFTI (9mi, 27°) 5000ft
 RNAVMUFTI 5000ft
STARG (8mi, 91°) 3000ft
KPIT (7mi, 88°) 1187ft
KADEC (6mi, 96°)
JAPAV (5mi, 126°)
AGC (9mi, 192°) 4000ft
AGC (turn)
RW14AGC (320°)AGC
CALIV (27mi, 315°) 4000ft
CALIV (turn) 4000ft
RW14CUTTA (132°)CUTTA
CALIV (18mi, 135°) 4000ft
RW14GRACE (229°)GRACE
CALIV (30mi, 250°) 4000ft
CALIV (turn) 4000ft
RW14WISKE (51°)WISKE
CALIV (33mi, 29°) 4000ft
CALIV (turn) 4000ft
 RNAVCALIV 4000ft
BILRE (6mi, 129°) 3000ft
HALBA (3mi, 129°) 2160ft
KPIT (3mi, 127°) 1208ft
(4960mi, 117°) 1603ft
JAKMA (4957mi, 297°)
AGC (13mi, 143°) 4000ft
AGC (turn)
RW28CYGRACE (229°)GRACE
PRESY (24mi, 203°) 4000ft
RW28CYHLG (56°)HLG
PRESY (31mi, 70°) 4000ft
PRESY (turn) 4000ft
RW28CYNESTO (301°)NESTO
PRESY (21mi, 320°) 4000ft
 RNAVPRESY 4000ft
SUPPR (6mi, 272°) 3000ft
FOLOX (3mi, 272°) 2100ft
KPIT (3mi, 277°) 1187ft
(4960mi, 117°) 1471ft
EPONE (4967mi, 297°)
HLG (16mi, 218°) 4000ft
HLG (turn)
RW28CZGRACE (229°)GRACE
HERDI (13mi, 185°) 4000ft
PRESY (11mi, 221°) 4000ft
RW28CZNESTO (301°)NESTO
DIYAC (14mi, 338°) 4000ft
PRESY (8mi, 292°) 4000ft
 RNAVPRESY 4000ft
SUPPR (6mi, 272°) 3000ft
KPIT (6mi, 274°) 1183ft
EPONE (8mi, 269°)
JAKNO (4mi, 248°)
HLG (13mi, 207°) 4000ft
HLG (turn)
RW28LYGRACE (229°)GRACE
HERDI (13mi, 185°) 4000ft
COSLU (11mi, 219°) 4000ft
RW28LYHLG (56°)HLG
COSLU (31mi, 71°) 4000ft
COSLU (turn) 4000ft
RW28LYNESTO (301°)NESTO
DIYAC (14mi, 338°) 4000ft
COSLU (8mi, 292°) 4000ft
 RNAVCOSLU 4000ft
PITTZ (6mi, 272°) 3000ft
POLOE (3mi, 272°) 2080ft
KPIT (4mi, 279°) 1176ft
(4960mi, 117°) 1325ft
CAKAT (4966mi, 297°)
HLG (17mi, 222°) 4000ft
HLG (turn)
RW28LZGRACE (229°)GRACE
HERDI (13mi, 185°) 5000ft
COSLU (11mi, 219°) 4000ft
RW28LZNESTO (301°)NESTO
DIYAC (14mi, 338°) 5000ft
COSLU (8mi, 292°) 4000ft
 RNAVCOSLU 4000ft
PITTZ (6mi, 272°) 3000ft
KPIT (6mi, 276°) 1176ft
CAKAT (6mi, 267°)
ELALE (4mi, 252°)
BOPGE (4mi, 222°)
HLG (10mi, 207°) 4000ft
HLG (turn)
RW28RYGRACE (229°)GRACE
NASTY (22mi, 196°) 4000ft
RW28RYNESTO (301°)NESTO
NASTY (20mi, 327°) 4000ft
 RNAVNASTY 4000ft
ZAIKO (9mi, 272°) 3000ft
KPIT (5mi, 269°) 1229ft
(4960mi, 117°) 1800ft
EWC (4961mi, 297°) 4000ft
EWC (turn)
RW28RZGRACE (229°)GRACE
NASTY (22mi, 196°) 4000ft
RW28RZNESTO (301°)NESTO
NASTY (20mi, 327°) 4000ft
 RNAVNASTY 4000ft
ZAIKO (9mi, 272°) 3000ft
KPIT (5mi, 269°) 1229ft
KANVE (8mi, 273°)
USUSE (10mi, 325°)
EWC (16mi, 58°) 4000ft
EWC (turn)
RW32-YEWC (182°)EWC
COPKU (31mi, 159°) 5000ft
COPKU (turn) 5000ft
RW32-YNESTO (301°)NESTO
GRUNZ (12mi, 289°) 6000ft
COPKU (5mi, 309°) 5000ft
 RNAVCOPKU 5000ft
WYLER (3mi, 309°) 4000ft
TRINY (5mi, 309°) 2500ft
ZANTA (2mi, 309°) 1780ft
KPIT (3mi, 310°) 1152ft
(4960mi, 117°) 1324ft
JAVET (4964mi, 297°)
EWC (16mi, 23°) 4000ft
EWC (turn)
RW32-ZNESTO (301°)NESTO
GRUNZ (12mi, 289°) 4000ft
COPKU (5mi, 309°) 4000ft
 RNAVCOPKU 4000ft
TRINY (8mi, 309°) 2500ft
KPIT (5mi, 310°) 1152ft
JAVET (6mi, 308°)
ASIWU (3mi, 341°)
EWC (13mi, 33°) 4000ft
EWC (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DEMME4PLEEZVHFright138 (318)°6001ft - 14000ftDME 10.0mi210
FEWGA7AIRNDBleft224 (44)°< 17999ft1.0min timedICAO rules
FEWGA7JPUNDBleft225 (45)°DME 10.0miICAO rules
FEWGA7WISKEVHFleft231 (51)°1.0min timedICAO rules
HAYNZ7EAREDVHFright51 (231)°6001ft - 14000ftDME 10.0mi210
JESEY4CUTTAVHFright308 (128)°6001ft - 14000ftDME 10.0mi210
*) magnetic outbound (inbound) holding course
