Airports for X-Plane

Zelienople - Zelienople Muni

Airport details

CountryUnited States of America
StatePennsylvania
RegionK6
AirspaceCleveland Ctr
MunicipalityFranklin Township
Elevation897ft (273m)
TimezoneGMT -5
Coordinates40.80197, -80.16086
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPJC
IATA coden/a
FAA codePJC

Communication

ZELIENOPLE MUNI CTAF122.900
ZELIENOPLE MUNI PITTSBURGH Approach/Departure124.750

Runway info

Runway 17 / 35
 length1252m (4108ft)
 bearing161° / 341°
 width23m (75ft)
 surfaceasphalt
 displ threshold168m (551ft) / 86m (282ft)
 blast zone137m (449ft) / 137m (449ft)

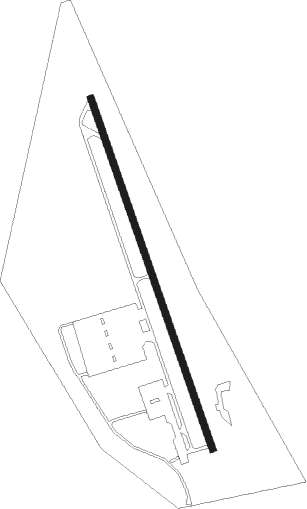

Airport layout


Taxiway locations

 35  A
Parking locations

 Parking

Nearby beacons

codeidentifierdistbearingfrequency
EWCELLWOOD CITY VOR/DME2.6294°115.80
UCPCASTLE (NEW CASTLE) NDB17.6311°272
MMJ(PITTSBURGH) DME18.9186°112
YNFETCH (YOUNGSTOWN/WARREN) NDB31312°338
AGCALLEGHENY (PITTSBURGH) VOR/DME31.9167°110
HLGWHEELING VOR/DME37.5217°112.20
CIPDME37.964°112.90
YNGYOUNGSTOWN VORTAC39.3316°109
FKLFRANKLIN VOR40.626°109.60
CFXCADIZ NDB51.6236°239
AIRBELLAIRE VOR/DME55.8220°117.10
VVCAMOR (CONNELLSVILLE) NDB58.3156°299
IHDINDIAN HEAD VORTAC61.7136°108.20
JFNJEFFERSON VOR/DME63.3328°115.20
TDTDME64.139°117.60

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17EWC (114°)EWC
DEUSO (10mi, 355°) 3000ft
DEUSO (turn) 3000ft
RW17VOLAN (183°)VOLAN
DEUSO (9mi, 210°) 3000ft
 RNAVDEUSO 3000ft
AJAPA (5mi, 161°) 3000ft
HODOS (3mi, 161°) 1960ft
KPJC (4mi, 161°) 941ft
(4959mi, 117°) 1298ft
EDAPY (4955mi, 297°) 3100ft
EDAPY (turn)
RW35CETPU (19°)CETPU
EDAPY (8mi, 66°) 3100ft
RW35EWC (114°)EWC
EDAPY (13mi, 151°) 3100ft
EDAPY (turn) 3100ft
 RNAVEDAPY 3100ft
OTIKE (5mi, 341°) 2800ft
CIBAT (3mi, 341°) 1780ft
KPJC (3mi, 341°) 947ft
(4959mi, 117°) 1298ft
DEUSO (4963mi, 297°) 3000ft
DEUSO (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
