Airports for X-Plane

Pinedale - Ralph Wenz Fld

Airport details

CountryUnited States of America
StateWyoming
RegionK1
AirspaceSalt Lake City Ctr
MunicipalitySublette County
Elevation7084ft (2159m)
TimezoneGMT -7
Coordinates42.79739, -109.81103
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPNA
IATA codePWY
FAA codePNA

Communication

RALPH WENZ FLD AWOS 3118.325
RALPH WENZ FLD CTAF/UNICOM122.800
Nearby Points of Interest:
DDZ Bridge over New Fork River
-
Trappers Point Site
-
Father DeSmet's Prairie Mass Site
-
Daniel School
-
Circle Ranch

Runway info

Runway 11 / 29
 length2706m (8878ft)
 bearing116° / 296°
 width30m (98ft)
 surfaceasphalt
 blast zone46m (151ft) / 46m (151ft)

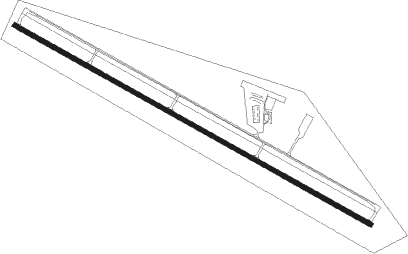

Airport layout


Taxiway locations

 A  A5
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PNAWENZ (PINEDALE) NDB0.3133°392
BPIBIG PINEY VOR/DME18.5234°116.50
JACJACKSON VOR/DME63.8312°115.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11IDECA (98°)IDECA 13500ft
VACSU (10mi, 73°) 10000ft
 RNAVVACSU 10000ft
UBUPY (4mi, 116°) 9400ft
HONLI (2mi, 116°) 9100ft
DOYED (3mi, 116°) 8260ft
KPNA (4mi, 116°) 7151ft
(6270mi, 111°) 7346ft
FEDPA (6265mi, 291°)
SEYTO (23mi, 214°) 10000ft
SEYTO (turn)
RW29SEYTO (11°)SEYTO 10000ft
DEDNE (15mi, 67°) 9600ft
COTDA (10mi, 6°) 9400ft
 RNAVCOTDA 9400ft
FEDPA (5mi, 296°) 8900ft
PINIY (2mi, 296°) 8700ft
KPNA (6mi, 296°) 7124ft
(6270mi, 111°) 7600ft
BPI (6286mi, 291°) 10000ft
BPI (turn)
