Airports for X-Plane

Pittsburg - Atkinson Muni

Airport details

CountryUnited States of America
StateKansas
RegionK3
AirspaceKansas City Ctr
MunicipalityPittsburg
Elevation950ft (290m)
TimezoneGMT -6
Coordinates37.44947, -94.73114
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPTS
IATA coden/a
FAA codePTS

Communication

Atkinson Muni AWOS 3118.775
Atkinson Muni CTAF/UNICOM123.000

Runway info

Runway 17 / 35
 length1863m (6112ft)
 bearing167° / 347°
 width30m (100ft)
 surfaceasphalt
Runway 4 / 22
 length1220m (4003ft)
 bearing46° / 226°
 width23m (75ft)
 surfaceasphalt

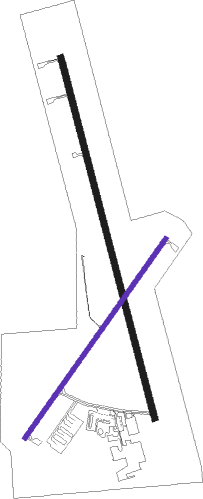

Airport layout - runway 4 / 22


Parking locations

 Tie-down

Nearby beacons

codeidentifierdistbearingfrequency
JLLUNNS (JOPLIN) NDB16.9145°344
OSWOSWEGO VOR/DME28.5238°117.60
EOSNEOSHO VOR/DME39.1154°117.30
CNUCHANUTE VOR/DME42.4282°109.20
BUMBUTLER VORTAC50.716°115.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04EXORY (46°)EXORY 3100ft
RW04JETIP (3°)JETIP
EXORY (9mi, 304°) 3100ft
RW04OSW (58°)OSW
EXORY (17mi, 67°) 3100ft
 RNAVEXORY 3100ft
BIDPY (7mi, 46°) 2600ft
PAYRU (3mi, 46°) 1520ft
KPTS (2mi, 45°) 986ft
(5631mi, 112°) 1196ft
ZIBMO (5622mi, 292°) 3000ft
ZIBMO (turn)
RW17BIKNL (167°)BIKNL
NAMEZ (8mi, 167°) 3000ft
RW17NAMEZ (168°)NAMEZ 3000ft
 RNAVNAMEZ 3000ft
NMBRS (7mi, 167°) 2600ft
YLLOW (3mi, 167°) 1540ft
KPTS (2mi, 169°) 976ft
(5631mi, 112°) 1216ft
PAGEZ (5629mi, 291°) 3100ft
PAGEZ (turn)
RW22YUGTU (227°)YUGTU
ZIBMO (7mi, 226°) 3000ft
RW22ZEDDI (272°)ZEDDI
ZIBMO (19mi, 298°) 3000ft
RW22ZIBMO (227°)ZIBMO 3000ft
 RNAVZIBMO 3000ft
HIBUX (7mi, 226°) 2600ft
ZOPQE (3mi, 226°) 1560ft
KPTS (2mi, 228°) 962ft
(5631mi, 112°) 1300ft
EXORY (5639mi, 291°) 3100ft
EXORY (turn)
RW35HOFMN (15°)HOFMN
PAGEZ (7mi, 56°) 3100ft
RW35PAGEZ (347°)PAGEZ 3100ft
RW35WACCO (327°)WACCO
PAGEZ (7mi, 297°) 3100ft
 RNAVPAGEZ 3100ft
KBROK (6mi, 347°) 2600ft
KPTS (6mi, 347°) 967ft
(5631mi, 112°) 1179ft
NAMEZ (5632mi, 292°) 3000ft
NAMEZ (turn)
