Airports for X-Plane

Dallas - Dallas Executive

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityDallas
Elevation660ft (201m)
TimezoneGMT -6
Coordinates32.68086, -96.86819
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRBD
IATA codeRBD
FAA codeRBD

Communication

Dallas Executive ATIS126.350
Dallas Executive UNICOM122.950
Dallas Executive CTAF120.300
Dallas Executive Clearance DEL118.625
Dallas Executive Ground Control121.700
Dallas Executive EXECUTIVE Tower120.300
Dallas Executive RGNL Approach/Departure125.200

Approach frequencies

ILS-cat-IRW31110.7518.00mi
3° GSRW31110.7518.00mi
Nearby Points of Interest:
Medical Dental Building
-
North Bishop Avenue Commercial Historic District
-
Kings Highway Conservation District, Dallas
-
Kessler Park Historic District
-
Lake Cliff
-
Houston Street Viaduct
-
Ronald Kirk Bridge
-
Dallas County Courthouse
-
Texas School Book Depository
-
Sanger Harris department store building
-
Santa Fe Terminal Complex
-
Dallas Downtown Historic District
-
One Main Place
-
Adolphus Hotel
-
Davis Building
-
Elm Place
-
Kirby Building
-
Wilson Building
-
Mosaic Dallas
-
Titche-Goettinger Building
-
Republic Center
-
Dallas Municipal Building
-
South Boulevard–Park Row Historic District
-
Alfred Horatio Belo House
-
Wheatley Place, Dallas

Runway info

Runway 13 / 31
 length2174m (7133ft)
 bearing130° / 310°
 width46m (150ft)
 surfaceconcrete
 displ threshold331m (1086ft) / 150m (492ft)
Runway 17 / 35
 length1161m (3809ft)
 bearing180° / 0°
 width46m (150ft)
 surfaceconcrete

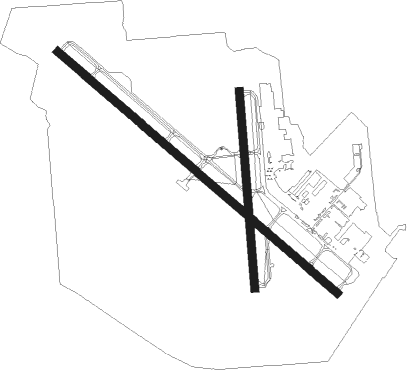

Airport layout


Taxiway locations

 13  17  35  A  A1  A2  A3  A4
 A5  A6  B  B1  B2  B3  B4  C
 D
Parking locations

 Ambassador  North

Nearby beacons

codeidentifierdistbearingfrequency
CVECOWBOY (DALLAS) VOR/DME12.7350°116.20
TTTMAVERICK VOR/DME14.2318°113.10
PQFMESQUITE NDB18.769°248
FUZRANGER (DALLAS-FORT WORTH VORTAC20304°115.70
FTMUFIN (FORT WORTH) NDB28.5293°365
NFWNAS JRB FORT WORTH (FT WO TACAN29.3279°108.70
DTPINCK (DENTON) NDB39.7331°257
CGQPOWELL (CORSICANA) NDB43.2144°344
CQYCEDAR CREEK VORTAC44.3127°114.80
CRSCORSICANA NDB45.9144°396
MJFARVILLA (GREENVILLE) TACAN46.864°109.60
GVMAJOR (GREENVILLE) NDB49.659°201
CSZCROSSROADS NDB59.2124°215
BYPBONHAM VORTAC60.537°114.60
UKWBOWIE VORTAC70.2312°117.15

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 DALL8149mi73°
 KUSSO8174mi98°
 GARL177mi103°
 JPOOL370mi191°
 SWABR8125mi267°
 TEX1102mi356°

STAR starting pointsdistanceinbound heading
ALL
 SWVAY439.557°
 GREGS9, HERBZ1, JFRYE455.1142°
 FINGR7, SLANT344.1223°
 DODJE6, REEKO327.8324°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW35FIKTI (333°)FIKTI
HOBMI (5mi, 270°) 3000ft
 RNAVHOBMI 3000ft
CUDAD (8mi, 0°) 2000ft
KRBD (4mi, 359°) 704ft
(5752mi, 109°) 1061ft
FIKTI (5748mi, 289°) 3000ft
FIKTI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DODJE6CAPTIVHFleft73 (253)°1.0min timedICAO rules
DODJE6CQYNDBleft95 (275)°< 60000ft1.0min timedICAO rules
DODJE6GGGNDBright114 (294)°< 17999ft1.0min timedICAO rules
DODJE6HERRIVHFleft101 (281)°1.0min timedICAO rules
DODJE6WEIRSVHFleft128 (308)°< 17999ft1.0min timedICAO rules
FINGR7BIRLEVHFright35 (215)°1.5min timedICAO rules
FINGR7BYPNDBright45 (225)°< 60000ft1.0min timedICAO rules
FINGR7GAATZVHFright35 (215)°1.0min timedICAO rules
FINGR7GLOVEVHFright64 (244)°18000ft - 45000ft1.5min timedICAO rules
GREGS9ACKMEVHFright15 (195)°1.0min timedICAO rules
GREGS9HEATRVHFleft299 (119)°1.5min timedICAO rules
GREGS9KAJAYVHFright283 (103)°1.5min timedICAO rules
GREGS9MOOSEVHFleft15 (195)°1.0min timedICAO rules
GREGS9PLEBSVHFleft283 (103)°1.0min timedICAO rules
GREGS9SPSNDBleft348 (168)°1.0min timedICAO rules
GREGS9TURKIVHFright266 (86)°1.5min timedICAO rules
GREGS9UKWNDBleft283 (103)°1.0min timedICAO rules
GREGS9ZANTOVHFleft283 (103)°1.5min timedICAO rules
HERBZ1BELYYVHFleft316 (136)°DME 10.0miICAO rules
HERBZ1DEDWTVHFleft279 (99)°DME 10.0miICAO rules
HERBZ1HNKERVHFright274 (94)°DME 10.0miICAO rules
HERBZ1LNDUSVHFleft297 (117)°DME 10.0miICAO rules
HERBZ1POTZYVHFleft356 (176)°DME 10.0miICAO rules
HERBZ1TURKIVHFright266 (86)°1.5min timedICAO rules
JFRYE4BELYYVHFleft316 (136)°DME 10.0miICAO rules
JFRYE4DEDWTVHFleft279 (99)°DME 10.0miICAO rules
JFRYE4HNKERVHFright274 (94)°DME 10.0miICAO rules
JFRYE4LNDUSVHFleft297 (117)°DME 10.0miICAO rules
JFRYE4POTZYVHFleft356 (176)°DME 10.0miICAO rules
JFRYE4TURKIVHFright266 (86)°1.5min timedICAO rules
REEKO3PURRSVHFleft136 (316)°DME 10.0miICAO rules
REEKO3VDUBBVHFleft83 (263)°DME 10.0miICAO rules
SLANT3CUBANVHFright64 (244)°DME 10.0miICAO rules
SLANT3JETTTVHFright66 (246)°DME 10.0miICAO rules
SLANT3KIDDDVHFright65 (245)°DME 10.0miICAO rules
SLANT3SEEVRVHFright45 (225)°DME 10.0miICAO rules
SWVAY4AGAINVHFright195 (15)°DME 10.0miICAO rules
SWVAY4FRSTIVHFright207 (27)°DME 10.0miICAO rules
SWVAY4PUNKYVHFright259 (79)°DME 10.0miICAO rules
SWVAY4SHLLYVHFright268 (88)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
