Airports for X-Plane

Warrensburg - Skyhaven

Airport details

CountryUnited States of America
StateMissouri
RegionK3
AirspaceKansas City Ctr
MunicipalityJohnson County
Elevation796ft (243m)
TimezoneGMT -6
Coordinates38.78417, -93.80286
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRCM
IATA coden/a
FAA codeRCM

Communication

Skyhaven AWOS-3119.575
Skyhaven CTAF/UNICOM123.000
Skyhaven WHITEMAN Approach127.450
Skyhaven WHITEMAN Departure125.925

Runway info

Runway 1 / 19
 length1284m (4213ft)
 bearing10° / 190°
 width23m (75ft)
 surfaceasphalt
Runway 14 / 32
 length854m (2802ft)
 bearing130° / 310°
 width18m (60ft)
 surfaceasphalt

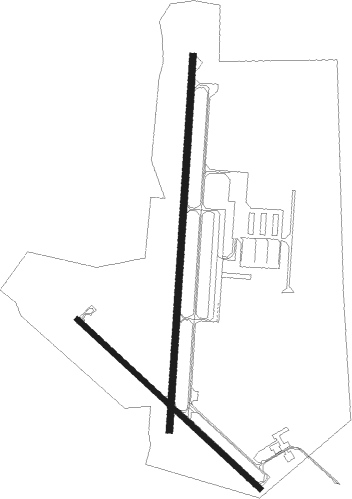

Airport layout


Parking locations

 Hangars  Parking

Nearby beacons

codeidentifierdistbearingfrequency
SZLWHITEMAN (KNOB NOSTER) TACAN12.1101°109.80
ANXNAPOLEON VORTAC24.1314°114
PKHERBB (OLATHE) NDB43.7268°420
BUMBUTLER VORTAC44.5233°115.90
BQSBRAYMER VOR/DME50.9355°115.35
MCIKANSAS CITY VORTAC52.9298°113.25

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01AUGIE (353°)AUGIE
BEJCY (21mi, 344°) 3000ft
RW01HODEN (103°)HODEN
BEJCY (16mi, 144°) 3000ft
BEJCY (turn) 3000ft
 RNAVBEJCY 3000ft
CUCTO (6mi, 10°) 2500ft
YOCPU (4mi, 10°) 1360ft
KRCM (2mi, 10°) 825ft
(5583mi, 112°) 1047ft
FALIS (5581mi, 293°) 3000ft
FALIS (turn)
RW19HODEN (103°)HODEN
FALIS (14mi, 59°) 3000ft
FALIS (turn) 3000ft
RW19OCTAM (182°)OCTAM
FALIS (6mi, 166°) 3000ft
 RNAVFALIS 3000ft
JIDIR (6mi, 190°) 2500ft
ZEVNI (4mi, 190°) 1360ft
KRCM (2mi, 190°) 836ft
(5583mi, 112°) 1047ft
BEJCY (5585mi, 292°) 3000ft
BEJCY (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
