Airports for X-Plane

Redding - Redding Muni

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityRedding
Elevation501ft (153m)
TimezoneGMT -8
Coordinates40.50897, -122.29339
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRDD
IATA codeRDD
FAA codeRDD

Communication

Redding Muni ATIS124.100
Redding Muni UNICOM122.950
Redding Muni CTAF119.800
Redding Muni GROUND121.700
Redding Muni TOWER119.800
Redding Muni OAKLAND ApproachROACH132.200
Redding Muni OAKLAND DepartureARTURE132.200

Approach frequencies

ILS-cat-IRW34108.718.00mi
3° GSRW34108.718.00mi
Nearby Points of Interest:
Edward Frisbie House
-
Cottonwood Historic District
-
Reading Adobe Site
-
Oconee Hill Cemetery
-
Lake Shasta Caverns
-
Old Bank of America Building
-
Odd Fellows Building
-
Saint Mary's Parish

Runway info

Runway 16 / 34
 length2138m (7014ft)
 bearing180° / 0°
 width46m (150ft)
 surfaceasphalt
 blast zone60m (197ft) / 61m (200ft)
Runway 12 / 30
 length1544m (5066ft)
 bearing132° / 312°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 37m (121ft)

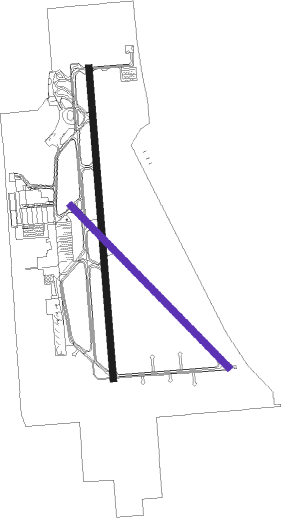

Airport layout - runway 12 / 30


Taxiway locations

 A  B  C  D  D1  D2  E  H
 M  M1
Parking locations

 Cargo  FBO  Fire  GA  Gate  Hangars  Jet  North
 South

Nearby beacons

codeidentifierdistbearingfrequency
RDDREDDING VOR/DME0.2159°108.40
RBLRED BLUFF VORTAC24.7172°115.70
FJSFORT JONES VOR/DME61331°109.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW12
 HOMAN325mi172°
 KENDL4, KREST326mi242°
RW16
 HOMAN325mi172°
 KENDL4, KREST326mi242°
RW30
 HOMAN325mi172°
 KENDL4, KREST326mi242°
RW34
 HOMAN325mi172°
 KENDL4, KREST326mi242°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16SAVOE (143°)SAVOE
SENNE (11mi, 114°) 7000ft
WARSU (6mi, 114°) 5500ft
 RNAVWARSU 5500ft
MAHCU (4mi, 180°) 4800ft
VOIDS (3mi, 180°) 3800ft
USYEK (5mi, 180°) 1860ft
KRDD (4mi, 179°) 560ft
(6845mi, 108°) 755ft
UKDOW (6850mi, 288°) 3000ft
UKDOW (turn)
RW34BEIRA (91°)BEIRA
UKDOW (14mi, 153°) 3000ft
UKDOW (turn) 3000ft
RW34HOMAN (302°)HOMAN
UKDOW (10mi, 235°) 3400ft
UKDOW (turn) 3000ft
RW34RBL (352°)RBL
UKDOW (12mi, 343°) 3000ft
RW34TOMAD (62°)TOMAD
EVEMY (13mi, 83°) 5000ft
UKDOW (9mi, 90°) 3000ft
 RNAVUKDOW 3000ft
LASSN (6mi, 0°) 2700ft
CUYAP (5mi, 0°) 1260ft
KRDD (3mi, 2°) 542ft
(6845mi, 108°) 1700ft
ITMOR (6833mi, 288°) 5000ft
ITMOR (turn) 5000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
