Universal City - Randolph Afb
Airport details
| Country | United States of America |
| State | Texas |
| Region | K4 |
| Airspace | Houston Oceanic Ctr |
| Municipality | Bexar County |
| Elevation | 762ft (232m) |
| Timezone | GMT -6 |
| Coordinates | 29.52686, -98.26856 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KRND |
| IATA code | RND |
| FAA code | RND |
Communication
| Randolph AFB Ground Control | 119.750 |
| Randolph AFB HANGOVER Tower | 120.500 |
| Randolph AFB Tower | 128.250 |
| Randolph AFB SAN ANTONIO Approach | 124.450 |
| Randolph AFB SAN ANTONIO Approach | 127.100 |
| Randolph AFB SAN ANTONIO Approach | 128.050 |
| Randolph AFB SAN ANTONIO Departure | 128.050 |
| Randolph AFB SAN ANTONIO Departure | 127.100 |
Approach frequencies
| ILS-cat-I | RW33R | 109.3 | 18.00mi |
| ILS-cat-I | RW15L | 109.9 | 18.00mi |
| ILS-cat-I | RW15R | 111.3 | 18.00mi |
| ILS-cat-I | RW33L | 111.1 | 18.00mi |
| 3° GS | RW33R | 109.3 | 18.00mi |
| 3° GS | RW15L | 109.9 | 18.00mi |
| 3° GS | RW15R | 111.3 | 18.00mi |
| 3° GS | RW33L | 111.1 | 18.00mi |
Nearby Points of Interest:
Randolph Field Historic District
-Administration Building
-State Highway 3-A Bridge at Cibolo Creek
-San Antonio Military Medical Center
-Fort Sam Houston
-Fence at Alamo Cement Company
-Monastery of Our Lady of Charity
-Johann and Anna Heidgen House
-Hipolito F. Garcia Federal Building and United States Courthouse
-Comal Power Plant
-Alamo Plaza Historic District
-Carl W. A. Groos House
-David J. and May Bock Woodward House
-Aurora Apartment Hotel
-Comal County Courthouse
-Lindheimer House
-Jeremiah Dashiell House
-Otto Bombach House
-Acequia Madre de Valero
-Main and Military Plazas Historic District
-Bexar County Courthouse
-Alamo Methodist Church
-Prospect Hill Missionary Baptist Church
-Yturri-Edmunds House
-Anton Wulff House

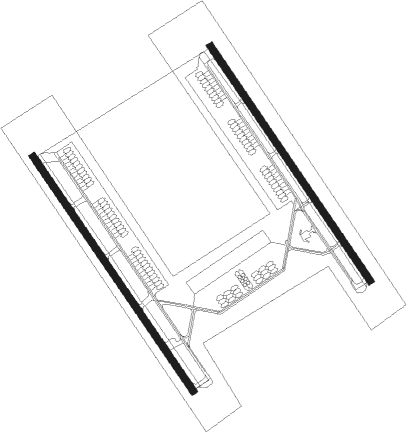

Runway info
Runway 15L / 33R  | ||
| length | 2549m (8363ft) | |
| bearing | 147° / 327° | |
| width | 61m (200ft) | |
| surface | concrete | |
| blast zone | 255m (837ft) / 255m (837ft) | |
| Runway 15R / 33L | ||
| length | 2551m (8369ft) | |
| bearing | 147° / 327° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| blast zone | 255m (837ft) / 255m (837ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| DHK | RANDOLPH TACAN | 0.6 | 4° | 109.90 |
| RND | RANDOLPH VORTAC | 0.9 | 245° | 112.30 |
| SAT | SAN ANTONIO VORTAC | 12.2 | 301° | 116.80 |
| AN | ALAMO (SAN ANTONIO) NDB | 16.4 | 285° | 368 |
| KSY | KELLY (SAN ANTONIO) TACAN | 18.2 | 247° | 112 |
| SSF | STINSON (SAN ANTONIO) VOR | 18.5 | 213° | 108.40 |
| RU | GARYS (AUSTIN) NDB | 30.8 | 37° | 272 |
| HHH | DEVINE NDB | 42.1 | 240° | 359 |
| STV | STONEWALL VORTAC | 46.7 | 327° | 113.80 |
| CSI | CENTER POINT (KERRVILLE) VORTAC | 54.7 | 293° | 117.50 |
| CWK | CENTEX VORTAC | 63.9 | 41° | 112.80 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| LEMIG1 | 35.1 | 23° | |
| CSI2 | 54.7 | 113° | |
| STV1 | 46.7 | 147° | |
| BRAUN3, MARCS1 | 30.7 | 228° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW15L | GUADA (140°) | GUADA 3000ft WIGDI (8mi, 125°) 3000ft JAXAP (7mi, 146°) 3000ft |
| RNAV | JAXAP 3000ft CUPIT (4mi, 147°) 2100ft COXOR (3mi, 147°) 2100ft KRND (5mi, 148°) 788ft (5837mi, 107°) 1500ft HOSPA (5826mi, 287°) 3000ft | |
| RW15R | GUADA (140°) | GUADA 4000ft HETAL (8mi, 133°) 4000ft WAXEL (4mi, 147°) 4000ft |
| RNAV | WAXEL 4000ft AVIBI (2mi, 146°) 4000ft FEDAB (4mi, 146°) 3100ft KRND (8mi, 140°) 808ft (5837mi, 107°) 1500ft GIVKE (5835mi, 287°) 3000ft | |
| RW33L | SOTME (330°) | SOTME 4000ft |
| RNAV | SOTME 4000ft WOLST (6mi, 327°) 4000ft SAPVE (4mi, 327°) 3100ft KRND (8mi, 334°) 774ft (5837mi, 107°) 1200ft HAKTI (5845mi, 287°) 3000ft | |
| RW33R | DISNE (326°) | DISNE 3000ft |
| RNAV | DISNE 3000ft FODRA (7mi, 327°) 3000ft EKORE (4mi, 327°) 2100ft GIBDE (3mi, 327°) 2100ft KRND (5mi, 325°) 776ft (5837mi, 107°) 1500ft CESVU (5835mi, 287°) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| CSI2 | CSI | NDB | left | 280 (100)° | 1.0min timed | ICAO rules | |
| LEMIG1 | LEMIG | VHF | right | 175 (355)° | < 17999ft | 1.0min timed | ICAO rules |
| MARCS1 | CRAYS | VHF | right | 79 (259)° | < 17999ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
