Santa Fe - Santa Fe Muni
Airport details
| Country | United States of America |
| State | New Mexico |
| Region | K2 |
| Airspace | Albuquerque Ctr |
| Municipality | Santa Fe |
| Elevation | 6348ft (1935m) |
| Timezone | GMT -7 |
| Coordinates | 35.61711, -106.08942 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KSAF |
| IATA code | SAF |
| FAA code | SAF |
Communication
| Santa Fe Muni ATIS | 128.550 |
| Santa Fe Muni CTAF | 119.500 |
| Santa Fe Muni UNICOM | 122.950 |
| Santa Fe Muni GROUND | 121.700 |
| Santa Fe Muni TOWER | 119.500 |
| Santa Fe Muni ALBUQUERQUE ApproachROACH | 132.800 |
| Santa Fe Muni ALBUQUERQUE DepartureARTURE | 132.800 |
Approach frequencies
| ILS-cat-I | RW02 | 111.7 | 18.00mi |
| 3° GS | RW02 | 111.7 | 18.00mi |
Nearby Points of Interest:
El Rancho de las Golondrinas
-Dillon Hall
-Connor Hall
-Seton Village
-Don Gaspar Historic District
-Don Gaspar Bridge
-New Mexico Supreme Court Building
-Barrio De Analco Historic District
-Santa Fe Plaza
-Santa Fe Historic District
-Camino del Monte Sol Historic District
-National Park Service Southwest Regional Office
-Santiago E. Campos United States Courthouse
-Scottish Rite Temple
-Reredos of Our Lady of Light
-Tesuque
-Glorieta Pass Battlefield
-San Lazaro archaeological site
-Nambé Pueblo
-Los Alamos National Laboratory
-San Antonio de Padua Church
-Rio Grande Bridge at San Juan Pueblo
-San Gabriel de Yungue-Ouinge
-Valles Caldera National Preserve
-San Antonito Church and Cemetery

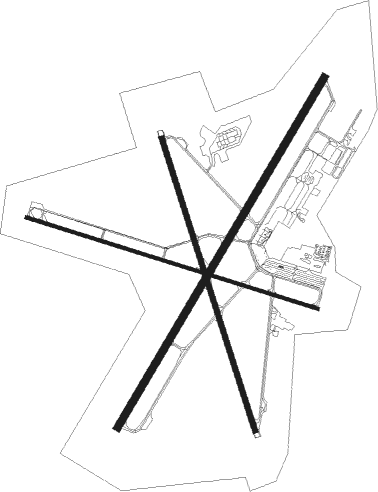

Runway info
Runway 2 / 20  | ||
| length | 2552m (8373ft) | |
| bearing | 41° / 221° | |
| width | 46m (150ft) | |
| surface | asphalt | |
| blast zone | 0m (0ft) / 61m (200ft) | |
| Runway 15 / 33 | ||
| length | 1929m (6329ft) | |
| bearing | 164° / 344° | |
| width | 30m (100ft) | |
| surface | asphalt | |
| blast zone | 46m (151ft) / 46m (151ft) | |
| Runway 10 / 28 | ||
| length | 1917m (6289ft) | |
| bearing | 108° / 288° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| SAF | SANTA FE VORTAC | 4.7 | 162° | 110.60 |
| OTO | OTTO VOR | 33.5 | 164° | 114 |
| AE | DUDLE (ALBUQUERQUE) NDB | 38.8 | 237° | 351 |
| FTI | FORT UNION VORTAC | 46.6 | 88° | 117.30 |
| ABQ | ALBUQUERQUE VORTAC | 49.5 | 232° | 113.20 |
| TAS | TAOS VORTAC | 60.2 | 10° | 117.60 |
| BRG | DME | 68.6 | 218° | 114.75 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW02 | |||
| TAFOY2 | 47mi | 88° | |
| RW15 | |||
| TAFOY2 | 47mi | 88° | |
| RW20 | |||
| TAFOY2 | 47mi | 88° | |
| RW33 | |||
| TAFOY2 | 47mi | 88° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW02 | DULKE (27°) | DULKE WODES (12mi, 2°) 10000ft |
| RW02 | NELGE (60°) | NELGE WODES (14mi, 74°) 10000ft |
| RW02 | ZIASE (80°) | ZIASE WODES (17mi, 104°) 10000ft |
| RNAV | WODES 10000ft DOUMA (9mi, 49°) 7800ft KSAF (5mi, 40°) 6326ft (6187mi, 109°) 7300ft ZEDAN (6178mi, 289°) 11000ft ZEDAN (turn) | |
| RW15 | SAF (342°) | SAF KARSE (21mi, 349°) 10000ft KARSE (turn) 10000ft |
| RW15 | ZEDAN (193°) | ZEDAN KARSE (11mi, 223°) 10000ft |
| RNAV | KARSE 10000ft FINAK (8mi, 180°) 9000ft SECRO (5mi, 164°) 7440ft KSAF (4mi, 164°) 6364ft (6187mi, 109°) 6569ft LACRO (6186mi, 288°) 10300ft LACRO (turn) | |
| RW20 | SAF (342°) | SAF POAKE (22mi, 8°) 11000ft POAKE (turn) 11000ft |
| RNAV | POAKE 11000ft JETEK (11mi, 186°) 8500ft SACBO (4mi, 204°) 7280ft ROYSO (2mi, 204°) 6555ft (6186mi, 109°) 6749ft HEGMI (6199mi, 288°) 9000ft HEGMI (turn) | |
| RW28 | CAYAL (344°) | CAYAL RENCO (12mi, 70°) 10000ft RENCO (turn) 10000ft |
| RW28 | OTO (344°) | OTO RENCO (22mi, 23°) 10000ft |
| RW28 | SAF (342°) | SAF RENCO (15mi, 112°) 10000ft RENCO (turn) 10000ft |
| RNAV | RENCO 10000ft ZEBIT (10mi, 312°) 9200ft COTAC (5mi, 292°) 7480ft KSAF (4mi, 292°) 6343ft (6187mi, 109°) 6749ft LACRO (6186mi, 288°) 9200ft LACRO (turn) | |
| RW33 | NELGE (60°) | NELGE LACRO (25mi, 86°) 11000ft LACRO (turn) 10000ft |
| RW33 | RENCO (302°) | RENCO LACRO (12mi, 263°) 10000ft |
| RW33 | SAF (342°) | SAF LACRO (9mi, 165°) 10000ft LACRO (turn) 10000ft |
| RW33 | ZIASE (80°) | ZIASE LACRO (30mi, 102°) 11000ft LACRO (turn) 10000ft |
| RNAV | LACRO 10000ft TISKE (7mi, 344°) 8200ft WAMOK (4mi, 344°) 6840ft KSAF (2mi, 344°) 6333ft (6187mi, 109°) 6800ft ZEDAN (6178mi, 289°) 11000ft ZEDAN (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
