Airports for X-Plane

Truth Or Consequences - Truth Or Consequences Muni

Airport details

CountryUnited States of America
StateNew Mexico
RegionK2
AirspaceAlbuquerque Ctr
MunicipalityTruth or Consequences
Elevation4853ft (1479m)
TimezoneGMT -7
Coordinates33.23536, -107.26989
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKTCS
IATA codeTCS
FAA codeTCS

Communication

Truth Or Consequences Muni ASOS120.675
Truth Or Consequences Muni CTAF/UNICOM122.800

Runway info

Runway 15 / 33
 length912m (2992ft)
 bearing164° / 344°
 width43m (140ft)
 surfacehard surface
Runway 13 / 31
 length2198m (7211ft)
 bearing140° / 320°
 width23m (75ft)
 surfaceasphalt
Runway 11 / 29
 length2131m (6991ft)
 bearing121° / 301°
 width46m (150ft)
 surfacehard surface
Runway 01 / 19
 length1024m (3360ft)
 bearing25° / 205°
 width40m (130ft)
 surfacehard surface
Runway 07 / 25
 length893m (2930ft)
 bearing81° / 261°
 width40m (130ft)
 surfacehard surface

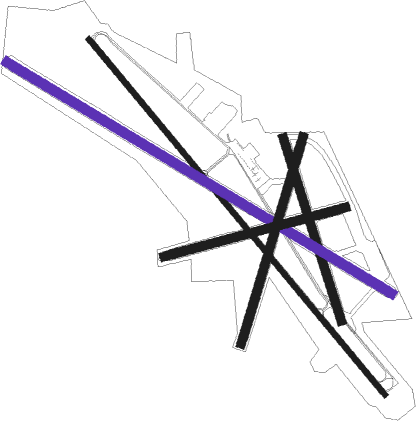

Airport layout - runway 11 / 29


Parking locations

 Dirt  GA  Large  Sheds

Nearby beacons

codeidentifierdistbearingfrequency
TCSTRUTH OR CONSEQUENCES VORTAC2.8347°112.70
SVCOZEY (SILVER CITY) NDB53.9233°251
SVCSILVER CITY VOR/DME57.4236°110.80
DMNDEMING VORTAC60199°108.60

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RWNVADUCAS (334°)DUCAS
HEMAT (9mi, 293°) 10000ft
LAYEN (6mi, 293°) 9000ft
RWNVAKAPEY (60°)KAPEY
LAYEN (14mi, 92°) 9000ft
RWNVATCS (167°)TCS
LAYEN (17mi, 198°) 9000ft
LAYEN (turn) 9000ft
 RNAVLAYEN 9000ft
CITAL (7mi, 24°) 7500ft
GALDE (4mi, 24°) 6200ft
PELVE (4mi, 24°) 6000ft
(6269mi, 107°) 6000ft
LAYEN (6276mi, 287°) 9000ft
LAYEN (turn)
