Airports for X-Plane

Dallas - Mckinney National

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityMcKinney
Elevation586ft (179m)
TimezoneGMT -6
Coordinates33.17707, -96.58877
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKTKI
IATA codeTKI
FAA codeTKI

Communication

Mckinney National ASOS119.925
Mckinney National CTAF118.825
Mckinney National UNICOM122.950
Mckinney National Clearance DEL121.350
Mckinney National Ground Control121.875
Mckinney National Tower118.825
Mckinney National REGIONAL Approach/Departure124.300

Approach frequencies

ILS-cat-IRW18109.3518.00mi
3° GSRW18109.3518.00mi
Nearby Points of Interest:
Heard-Craig House
-
Allen Water Station
-
Farmersville Masonic Lodge No. 214, A.F. and A.M.
-
First Methodist Church of Rockwall
-
Royse City Lodge No. 663 A.F. & A.M.
-
Hyer Hall
-
Dallas Hall
-
Fred Florence Hall
-
Perkins Administration Building
-
Snider Hall
-
Highland Park Village
-
Swiss Avenue, Dallas
-
Katy Depot
-
Dallas Fire Station No. 16
-
Post Office Building
-
Munger Place Historic District, Dallas
-
Stephen Decatur Lawrence Farmstead
-
Central Congregational Church
-
Greenway Parks Historic District
-
Number 4 Hook and Ladder Company
-
Jacob and Eliza Spake House
-
Parkland Memorial Hospital
-
Fair Park
-
Wilson Block
-
Chevrolet Motor Company Building

Runway info

Runway 18 / 36
 length2140m (7021ft)
 bearing183° / 3°
 width46m (150ft)
 surfaceconcrete

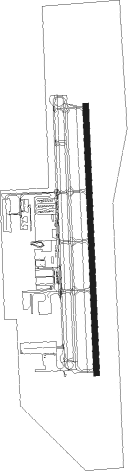

Airport layout


Taxiway locations

 A  A1  A2  A3  B  B1  B2  B3
 B4  B5
Parking locations

 Central  GA  H3  Maint  McKinney  Monarch  North  NW
 South  Texas

Nearby beacons

codeidentifierdistbearingfrequency
PQFMESQUITE NDB22.2171°248
CVECOWBOY (DALLAS) VOR/DME23.4228°116.20
GVMAJOR (GREENVILLE) NDB26.492°201
MJFARVILLA (GREENVILLE) TACAN27.3102°109.60
BYPBONHAM VORTAC2845°114.60
TTTMAVERICK VOR/DME29.3236°113.10
DTPINCK (DENTON) NDB31.1280°257
FUZRANGER (DALLAS-FORT WORTH VORTAC34.3244°115.70
DNIDENISON (SHERMAN-DENISON) NDB39.2353°341
FTMUFIN (FORT WORTH) NDB43250°365
URH(DURANT) DME47.114°114.30
NFWNAS JRB FORT WORTH (FT WO TACAN49.2245°108.70
CQYCEDAR CREEK VORTAC62.4159°114.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 DALL8128mi82°
 KUSSO8168mi107°
 GARL178mi125°
 JPOOL3102mi197°
 SWABR8143mi257°
 TEX175mi342°

STAR starting pointsdistanceinbound heading
ALL
 SWVAY470.445°
 GREGS9, HERBZ1, JFRYE446.9107°
 FINGR7, SLANT313.8251°
 YEAGR4, EESAT3, LOADS339.1337°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18KARLA (221°)KARLA
VELCI (9mi, 262°) 3000ft
RW18SASIE (178°)SASIE
VELCI (5mi, 168°) 3000ft
 RNAVVELCI 3000ft
IKOTY (6mi, 183°) 2300ft
LIRNE (3mi, 183°) 1420ft
KTKI (3mi, 183°) 626ft
(5736mi, 109°) 776ft
ONEME (5737mi, 289°) 3000ft
ONEME (turn)
RW36BACKS (346°)BACKS
ONEME (29mi, 340°) 3000ft
RW36TACKE (7°)TACKE
ONEME (26mi, 8°) 3000ft
 RNAVONEME 3000ft
ILEZY (6mi, 3°) 2000ft
WAXUX (2mi, 2°) 1420ft
KTKI (3mi, 3°) 639ft
(5736mi, 109°) 789ft
VELCI (5735mi, 289°) 3000ft
VELCI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EESAT3HINZEVHFleft107 (287)°DME 10.0miICAO rules
EESAT3KOBIEVHFright130 (310)°DME 10.0miICAO rules
EESAT3ZEKKEVHFleft91 (271)°DME 10.0miICAO rules
FINGR7BIRLEVHFright35 (215)°1.5min timedICAO rules
FINGR7BYPNDBright45 (225)°< 60000ft1.0min timedICAO rules
FINGR7GAATZVHFright35 (215)°1.0min timedICAO rules
FINGR7GLOVEVHFright64 (244)°18000ft - 45000ft1.5min timedICAO rules
GREGS9ACKMEVHFright15 (195)°1.0min timedICAO rules
GREGS9HEATRVHFleft299 (119)°1.5min timedICAO rules
GREGS9KAJAYVHFright283 (103)°1.5min timedICAO rules
GREGS9MOOSEVHFleft15 (195)°1.0min timedICAO rules
GREGS9PLEBSVHFleft283 (103)°1.0min timedICAO rules
GREGS9SPSNDBleft348 (168)°1.0min timedICAO rules
GREGS9TURKIVHFright266 (86)°1.5min timedICAO rules
GREGS9UKWNDBleft283 (103)°1.0min timedICAO rules
GREGS9ZANTOVHFleft283 (103)°1.5min timedICAO rules
HERBZ1BELYYVHFleft316 (136)°DME 10.0miICAO rules
HERBZ1DEDWTVHFleft279 (99)°DME 10.0miICAO rules
HERBZ1HNKERVHFright274 (94)°DME 10.0miICAO rules
HERBZ1LNDUSVHFleft297 (117)°DME 10.0miICAO rules
HERBZ1POTZYVHFleft356 (176)°DME 10.0miICAO rules
HERBZ1TURKIVHFright266 (86)°1.5min timedICAO rules
JFRYE4BELYYVHFleft316 (136)°DME 10.0miICAO rules
JFRYE4DEDWTVHFleft279 (99)°DME 10.0miICAO rules
JFRYE4HNKERVHFright274 (94)°DME 10.0miICAO rules
JFRYE4LNDUSVHFleft297 (117)°DME 10.0miICAO rules
JFRYE4POTZYVHFleft356 (176)°DME 10.0miICAO rules
JFRYE4TURKIVHFright266 (86)°1.5min timedICAO rules
LOADS3HINZEVHFleft107 (287)°DME 10.0miICAO rules
LOADS3KOBIEVHFright130 (310)°DME 10.0miICAO rules
LOADS3ZEKKEVHFleft91 (271)°DME 10.0miICAO rules
SLANT3CUBANVHFright64 (244)°DME 10.0miICAO rules
SLANT3JETTTVHFright66 (246)°DME 10.0miICAO rules
SLANT3KIDDDVHFright65 (245)°DME 10.0miICAO rules
SLANT3SEEVRVHFright45 (225)°DME 10.0miICAO rules
SWVAY4AGAINVHFright195 (15)°DME 10.0miICAO rules
SWVAY4FRSTIVHFright207 (27)°DME 10.0miICAO rules
SWVAY4PUNKYVHFright259 (79)°DME 10.0miICAO rules
SWVAY4SHLLYVHFright268 (88)°DME 10.0miICAO rules
YEAGR4CAPTIVHFleft73 (253)°1.0min timedICAO rules
YEAGR4CQYNDBleft95 (275)°< 60000ft1.0min timedICAO rules
YEAGR4GGGNDBright114 (294)°< 17999ft1.0min timedICAO rules
YEAGR4HERRIVHFleft101 (281)°1.0min timedICAO rules
YEAGR4WEIRSVHFleft128 (308)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
