Airports for X-Plane

Tonopah - Tonopah Test Range

Airport details

CountryUnited States of America
StateNevada
RegionK2
AirspaceLos Angeles Ctr
MunicipalityNye County
Elevation5547ft (1691m)
TimezoneGMT -8
Coordinates37.79887, -116.78075
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKTNX
IATA codeXSD
FAA codeTNX

Communication

Tonopah Test Range Silverbow Grnd127.250
Tonopah Test Range SILVERBOW Tower134.100
Tonopah Test Range NELLIS Approach119.350

Approach frequencies

ILS-cat-IRW14108.318.00mi
ILS-cat-IRW32111.718.00mi
2.7° GSRW14108.318.00mi
2.7° GSRW32111.718.00mi
Nearby Points of Interest:
Goldfield Historic District
-
Nye County Courthouse
-
E.R. Shields House
-
St. Mark's Episcopal Church
-
Tonopah Main Post Office
-
Wieland Brewery Building
-
Tonopah Volunteer Firehouse and Gymnasium
-
Uri B. Curtis House
-
Judge W.A. Sawle House
-
State Bank and Trust Company Building
-
H.A. McKim Building
-
George A. Bartlett House

Runway info

Runway 14 / 32
 length3664m (12021ft)
 bearing152° / 332°
 width46m (150ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

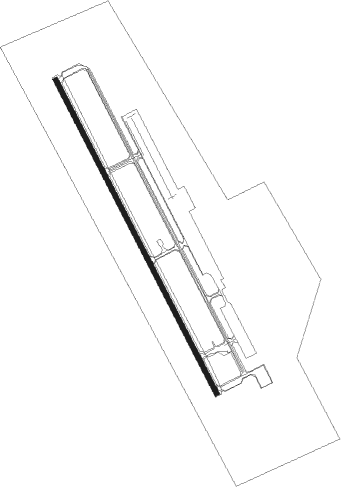

Airport layout


Taxiway locations

 A  C  D  E  F
Parking locations

 RAMP

Nearby beacons

codeidentifierdistbearingfrequency
TQQSILVERBOW (TONOPAH) VORTAC0.5170°113
TPHTONOPAH VORTAC18.3313°116
OALCOALDALE VORTAC48.4282°117.70
MCYMICKEY (MERCURY) VORTAC57.7119°117.50
BTYBEATTY VORTAC59.9178°114.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW14
 STOFF226mi148°
 TUMBE160mi173°
 RANGE2, TPH218mi313°
RW32
 STOFF226mi148°
 TUMBE160mi173°
 RANGE2, TPH218mi313°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14TPH (133°)TPH 11000ft
JEPAR (7mi, 100°) 9100ft
 RNAVJEPAR 9100ft
JANAV (7mi, 152°) 7500ft
KTNX (7mi, 152°) 5524ft
(6658mi, 108°) 5950ft
JADPU (6659mi, 288°) 11000ft
JADPU (turn) 11000ft
RW32JESVO (332°)JESVO 10400ft
JIREM (4mi, 332°) 8700ft
 RNAVJIREM 8700ft
DRAKO (7mi, 332°) 7600ft
RUDII (3mi, 332°) 6700ft
FALAK (2mi, 332°) 6160ft
KTNX (3mi, 332°) 5589ft
(6658mi, 108°) 5950ft
ROCEN (6658mi, 288°) 11000ft
ROCEN (turn) 11000ft
