Tehachapi - Mountain Valley

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityKern County
Elevation4220ft (1286m)
TimezoneGMT -8
Coordinates35.10108, -118.42314
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeL94
IATA coden/a
FAA coden/a

Communication

MOUNTAIN VALLEY CTAF/UNICOM123.000
Nearby Points of Interest:
Tehachapi Railroad Depot
-
Courtlandt Gross House
-
Tehachapi Loop
-
Weedpatch Camp
-
Fort Tejon
-
Last Chance Canyon
-
Rogers Dry Lake
-
Baker Branch Library
-
Burro Schmidt Tunnel

Runway info

Runway 9R / 27L
 length1133m (3717ft)
 bearing100° / 280°
 width11m (36ft)
 surfaceasphalt
Runway 9L / 27R
 length1119m (3671ft)
 bearing100° / 280°
 width5m (16ft)
 surfaceasphalt

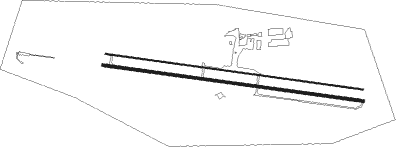

Airport layout


Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
LHSLAKE HUGHES VORTAC26.2200°114.35
GMNGORMAN VORTAC27.9236°116.10
PMDPALMDALE VORTAC33.3143°114.50
EDWEDWARDS VORTAC34.6100°116.40
EHFSHAFTER (BAKERSFIELD) VORTAC40.2300°115.40
FIMFILLMORE VORTAC50212°112.50
NIDCHINA LAKE TACAN50.251°111.60
VNYVAN NUYS VOR/DME52.8184°113.10
TTETULE VOR/DME56.8324°109.20
CMACAMARILLO VOR/DME62.8217°115.80
VTUVENTURA (OXNARD) VOR/DME66.8212°108.20
NTDPOINT MUGU (OXNARD) TACAN68.1216°110.60
