Airports for X-Plane

Varna

Airport details

CountryBulgaria
StateVarna Province
RegionLB
AirspaceSofia Ctr
MunicipalityAksakovo
Elevation229ft (70m)
TimezoneGMT +2
Coordinates43.23195, 27.82528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLBWN
IATA codeVAR
FAA coden/a

Communication

Varna ATIS118.075
Varna Tower119.500
Varna Tower118.900
Varna Approach121.000
Varna Approach124.600

Approach frequencies

ILS-cat-IRW09109.918.00mi
3° GSRW09109.918.00mi
Nearby Points of Interest:
Pobiti Kamani

Runway info

Runway 09 / 27
 length2508m (8228ft)
 bearing95° / 275°
 width45m (148ft)
 surfaceasphalt
 blast zone31m (102ft) / 0m (0ft)

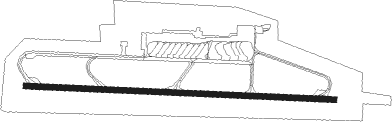

Airport layout


Taxiway locations

 A  B  C  D  E
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  1A  2  20  22  23
 24  4  5  5A  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
WRNVARNA VOR/DME0.3264°112.40
DWNDEVNYA NDB7.5276°350
EMODME28.9188°113.65
KMNKAMENAR NDB37.8201°399
BGSBURGAS VOR/DME40.7204°112

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW09
 NEDS2N33mi82°
 IVGO2N32mi100°
 RUTA3N23mi151°
 TOTK3N31mi268°
 BALI3N35mi310°
RW27
 NEDS3P33mi82°
 IVGO3P32mi100°
 RUTA3P23mi151°
 TOTK2P31mi268°
 BALI3P35mi310°

STAR starting pointsdistanceinbound heading
RW09
 TUGS5D20.640°
 TOTK4D31.088°
 EXIG3D43.5105°
 GOSL5D32.2244°
 IVGO5D32.0280°
RW27
 TUGS5F20.640°
 TOTK5F31.088°
 EXIG5F43.5105°
 GOSL4F32.2244°
 IVGO4F32.0280°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09EMPED (95°)EMPED 4000ft
EVRAB (4mi, 95°) 2900ft
RW09IDEXI (113°)IDEXI 4000ft
EVRAB (5mi, 189°) 2900ft
 RNAVEVRAB 2900ft
WN764 (5mi, 95°) 1900ft
LBWN (6mi, 95°) 254ft
WN771 (3mi, 95°)
(2998mi, 213°) 1800ft
WN754 (2990mi, 33°)
WN757 (12mi, 275°) 3000ft
EMPED (5mi, 9°) 4000ft
EMPED (turn) 4000ft
RW27TITPI (275°)TITPI 4000ft
RIGBI (4mi, 275°) 2800ft
RW27UMDOX (256°)UMDOX 4000ft
RIGBI (5mi, 190°) 2800ft
 RNAVRIGBI 2800ft
WN716 (5mi, 275°) 1800ft
LBWN (5mi, 275°) 267ft
(2996mi, 213°) 2000ft
WN703 (2991mi, 33°)
WN707 (16mi, 95°) 3000ft
TITPI (5mi, 10°) 4000ft
TITPI (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EXIG3DEMPEDVHFright271 (91)°4000ft - 14000ft1.0min timedICAO rules
EXIG5FTITPIVHFleft91 (271)°4000ft - 14000ft1.0min timedICAO rules
GOSL4FTITPIVHFleft91 (271)°4000ft - 14000ft1.0min timedICAO rules
GOSL5DEMPEDVHFright271 (91)°4000ft - 14000ft1.0min timedICAO rules
IVGO4FTITPIVHFleft91 (271)°4000ft - 14000ft1.0min timedICAO rules
IVGO5DEMPEDVHFright271 (91)°4000ft - 14000ft1.0min timedICAO rules
TOTK4DEMPEDVHFright271 (91)°4000ft - 14000ft1.0min timedICAO rules
TOTK5FTITPIVHFleft91 (271)°4000ft - 14000ft1.0min timedICAO rules
TUGS5DEMPEDVHFright271 (91)°4000ft - 14000ft1.0min timedICAO rules
TUGS5FTITPIVHFleft91 (271)°4000ft - 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
