Airports for X-Plane

Ibiza

Airport details

CountrySpain
StateBalearic Islands
RegionLE
AirspaceBarcelona Ctr
MunicipalitySant Josep de sa Talaia
Elevation20ft (6m)
TimezoneGMT +1
Coordinates38.87780, 1.37509
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLEIB
IATA codeIBZ
FAA coden/a

Communication

Ibiza ATIS119.800
Ibiza Ground Control121.925
Ibiza Tower118.500
Ibiza Departure134.825

Approach frequencies

ILS-cat-IRW06111.118.00mi
ILS-cat-IRW24109.518.00mi
3° GSRW06111.118.00mi
3° GSRW24109.518.00mi
Nearby Points of Interest:
City walls of Ibiza
-
Museo Arqueológico de Ibiza y Formentera
-
Ses Salines Natural Park
-
Capella subterrània de Santa Agnès
-
Puig de Missa
-
Torre de Can Rieró

Runway info

Runway 06 / 24
 length2792m (9160ft)
 bearing68° / 248°
 width45m (148ft)
 surfaceasphalt
 blast zone63m (207ft) / 64m (210ft)

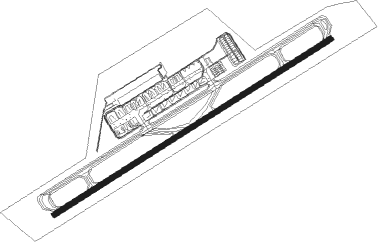

Airport layout


Taxiway locations

 C  D  E  F  G  H1  H2  H3
 H4
Parking locations

 10X  11  11X  12  12X  13  13X  14
 15  16  17  18  19  19A  19B  20
 20A  20B  21  22  23  23X  24  24X
 25  25X  26  26X  27  28  29  30
 31  32  33  34  35  4X  5X  6X
 7X

Nearby beacons

codeidentifierdistbearingfrequency
IBAIBIZA VOR/DME0.7224°117.80
IZAIBIZA NDB4.968°394

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW06
 EPAM2F44mi0°
 MHN5F145mi71°
 KABR2R76mi80°
 LAMP2F26mi98°
 INSU2F26mi131°
 BAVE3R33mi270°
 XOST3F33mi292°
RW24
 EPAM2E44mi0°
 MHN5E145mi71°
 KABR2E76mi80°
 LAMP2E26mi98°
 INSU2E26mi131°
 BAVE3E33mi270°
 XOST3E33mi292°

STAR starting pointsdistanceinbound heading
RW06
 RUXE3V35.173°
 VARU3V33.8102°
 CORD1S, CORD3V100.9210°
 TOLS4V, TOLS2S108.1212°
 POS4V102.4239°
 BAKA1V63.9243°
 RIXO3V177.2245°
 MORS4V165.8252°
 NEVI4V99.6258°
 NELU1V25.9267°
 INSU2V26.3311°
RW24
 RUXE3N35.173°
 VARU3N, VARU2Y33.8102°
 CORD4N100.9210°
 TOLS5N108.1212°
 POS4N102.4239°
 RIXO3N177.2245°
 MORS4N165.8252°
 NEVI4N99.6258°
 NELU1N25.9267°
 INSU2N26.3311°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAKA1VIBANDBright243 (63)°> 3000ft1.0min timed220
BAKA1VTILNOVHFleft250 (70)°> 4000ftDME 5.0miICAO rules
CORD1SDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
CORD1SKOXESVHFleft62 (242)°> 4000ft1.0min timed220
CORD3VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
CORD3VNEGREVHFright56 (236)°> 5000ft1.0min timedICAO rules
CORD3VTUTOTVHFright53 (233)°> 4000ft1.0min timed220
CORD4NGISLUVHFright63 (243)°> 3000ft1.0min timed210
CORD4NNEGREVHFright56 (236)°> 5000ft1.0min timedICAO rules
INSU2NGISLUVHFright63 (243)°> 3000ft1.0min timed210
INSU2NXEMDUVHFright242 (62)°> 4000ft1.0min timed220
INSU2VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
INSU2VKOXESVHFleft62 (242)°> 4000ft1.0min timed220
MORS4NGISLUVHFright63 (243)°> 3000ft1.0min timed210
MORS4NNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
MORS4VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
MORS4VKOXESVHFleft62 (242)°> 4000ft1.0min timed220
MORS4VNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
NELU1NGISLUVHFright63 (243)°> 3000ft1.0min timed210
NELU1NNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
NELU1VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
NELU1VNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
NEVI4NGISLUVHFright63 (243)°> 3000ft1.0min timed210
NEVI4NNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
NEVI4VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
NEVI4VKOXESVHFleft62 (242)°> 4000ft1.0min timed220
NEVI4VNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
POS4NGISLUVHFright63 (243)°> 3000ft1.0min timed210
POS4NNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
POS4VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
POS4VKOXESVHFleft62 (242)°> 4000ft1.0min timed220
POS4VNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
RIXO3NGISLUVHFright63 (243)°> 3000ft1.0min timed210
RIXO3NNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
RIXO3VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
RIXO3VKOXESVHFleft62 (242)°> 4000ft1.0min timed220
RIXO3VNELUXVHFleft64 (244)°> 4500ft1.0min timedICAO rules
RUXE3NGISLUVHFright63 (243)°> 3000ft1.0min timed210
RUXE3NXEMDUVHFright242 (62)°> 4000ft1.0min timed220
RUXE3VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
RUXE3VSISDUVHFright331 (151)°3000ft - 10000ft1.0min timed220
TOLS2SDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
TOLS2SKOXESVHFleft62 (242)°> 4000ft1.0min timed220
TOLS4VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
TOLS4VNEGREVHFright56 (236)°> 5000ft1.0min timedICAO rules
TOLS4VTUTOTVHFright53 (233)°> 4000ft1.0min timed220
TOLS5NGISLUVHFright63 (243)°> 3000ft1.0min timed210
TOLS5NNEGREVHFright56 (236)°> 5000ft1.0min timedICAO rules
VARU2YGISLUVHFright63 (243)°> 3000ft1.0min timed210
VARU2YXEMDUVHFright242 (62)°> 4000ft1.0min timed220
VARU3NGISLUVHFright63 (243)°> 3000ft1.0min timed210
VARU3NOLPAMVHFleft257 (77)°> 4000ft1.0min timed220
VARU3VDEMEVVHFleft270 (90)°3000ft - 5000ft1.0min timed190
VARU3VSISDUVHFright331 (151)°3000ft - 10000ft1.0min timed220
*) magnetic outbound (inbound) holding course
