Airports for X-Plane

Jerez De La Forntera - Jerez De La Frontera

Airport details

CountrySpain
StateAndalusia
RegionLE
AirspaceMadrid Ctr
MunicipalityJerez
Elevation90ft (27m)
TimezoneGMT +1
Coordinates36.74360, -6.06463
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEJR
IATA codeXRY
FAA coden/a

Communication

Jerez de la Frontera ATIS125.650
Jerez de la Frontera Ground Control121.600
Jerez de la Frontera Tower118.550
Jerez de la Frontera Approach128.500

Approach frequencies

ILS-cat-IRW20108.918.00mi
3° GSRW20108.918.00mi
Nearby Points of Interest:
Cementerio Nuestra Señora de La Merced
-
Recreo de las Cadenas
-
Iglesia conventual de los Padres Capuchinos en Jerez de la Frontera
-
Casa en calle Lealas, nº 20
-
Muralla de Jerez de la Frontera
-
Mercado Central de Abastos (Jerez)
-
Tower of San Dionisio
-
Convento de Santa María de Gracia
-
Palacio de Villapanes
-
Iglesia-convento de la Merced
-
Torre Macharnudo
-
Bodegas Domecq
-
Castillo de Rota
-
Charterhouse of Santa María de la Defensión
-
Puente de la Cartuja
-
Ermita de Nuestra Señora de la Ina
-
Castillo de Gibalbín
-
Castle of Doña Blanca
-
La Barca iron bridge
-
Acueducto de Tempul
-
Poblado de Majarromaque - José Antonio
-
Castillo de Trebujena
-
Torre Cera
-
Iglesia de Santa María de la Oliva
-
Antiguo Monasterio de la Victoria

Runway info

Runway 02 / 20
 length2307m (7569ft)
 bearing26° / 206°
 width45m (148ft)
 surfaceasphalt
 blast zone62m (203ft) / 59m (194ft)

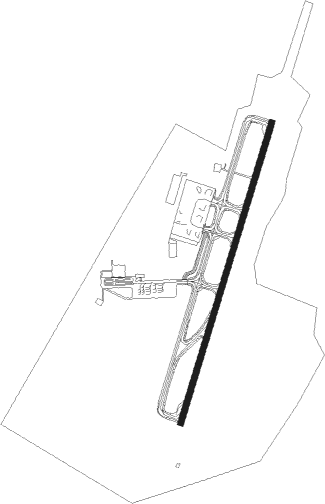

Airport layout


Taxiway locations

 E2  E3  E6  L4  T1  T2  T3  T4
 T5
Parking locations

 1  10  11  11E  12  13  13A  14
 15  16  17  18  19  2  20  21
 22  23  24  25  26  27  28  29
 3  4  5  6  6A  7  8  8A
 9  AG1  AG2

Nearby beacons

codeidentifierdistbearingfrequency
JRZJEREZ VOR/DME4.628°113
JERJEREZ NDB5.928°433
AOGROTA TACAN14.8251°108.60
VJFVEJER DE LA FRONTERA VOR/DME30.5170°117.80
MRNMORON (SEVILLE) VOR/DME33.646°115.50
EECEL COPERO (SEVILLA) NDB34.26°327
SPPSEVILLE NDB42.522°420
SVLSEVILLE VOR/DME43.524°113.70
GBRGIBRALTAR TACAN50.1130°113.60
CEUCEUTA NDB62.9138°300

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW02
 OXAC1Q73mi3°
 HIJ2Q115mi29°
 PEPA2Q122mi81°
 MGA2Q82mi88°
 VJF3Q, VJF2P31mi170°
 ONUB2Q45mi306°
 SANT2Q57mi346°
RW20
 OXAC1S73mi3°
 HIJ2V115mi29°
 PEPA2W122mi81°
 MGA4K82mi88°
 VJF2V31mi170°
 ONUB2S, ONUB2V45mi306°
 SANT2S, SANT2V57mi346°

STAR starting pointsdistanceinbound heading
RW02
 ONUB2T45.0126°
 SVL2T43.5204°
 HIJ2T115.4209°
 MGA2S, MGA2T81.6268°
 VJF2T30.5350°
RW20
 ONUB2U45.0126°
 SVL2U43.5204°
 HIJ2U115.4209°
 MGA2U81.6268°
 VJF2S, VJF2U30.5350°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-YKUBAS (323°)KUBAS 5000ft
JR400 (7mi, 263°) 4000ft
JR405 (7mi, 279°) 2500ft
JR10S (4mi, 26°) 2500ft
 RNAVJR10S 2500ft
JR05S (5mi, 26°) 1600ft
LEJR (5mi, 24°) 117ft
JR410 (3mi, 30°)
JR415 (12mi, 85°)
JR420 (4mi, 197°) 3000ft
KUBAS (14mi, 197°) 5000ft
KUBAS (turn) 5000ft
RW02-ZKUBAS (323°)KUBAS 5000ft
JR400 (7mi, 263°) 4000ft
JR405 (7mi, 279°) 2500ft
JR10S (4mi, 26°) 2500ft
 RNAVJR10S 2500ft
JR05S (5mi, 26°) 1600ft
LEJR (5mi, 24°) 117ft
JR410 (3mi, 30°)
JR415 (12mi, 85°)
JR420 (4mi, 197°) 3000ft
KUBAS (14mi, 197°) 5000ft
KUBAS (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HIJ2TARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
HIJ2TKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
HIJ2UJRZNDBright22 (202)°> 3000ft1.0min timedICAO rules
MAR2TARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
MAR2TKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
MAR2UARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
MGA2SARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
MGA2SKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
MGA2TKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
MGA2UARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
ONUB2TARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
ONUB2TKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
ONUB2UJRZNDBright22 (202)°> 3000ft1.0min timedICAO rules
SVL2TARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
SVL2TKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
SVL2UJRZNDBright22 (202)°> 3000ft1.0min timedICAO rules
VJF2SARSASVHFleft79 (259)°> 5000ftDME 5.4mi210
VJF2TKUBASVHFleft15 (195)°> 4000ftDME 5.0miICAO rules
VJF2UJRZNDBright22 (202)°> 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
