Airports for X-Plane

Madrid - Torrejon

Airport details

CountrySpain
StateCommunity of Madrid
RegionLE
AirspaceMadrid Ctr
MunicipalityTorrejón de Ardoz
Elevation2024ft (617m)
TimezoneGMT +1
Coordinates40.49918, -3.43236
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLETO
IATA codeTOJ
FAA coden/a

Communication

Torrejon Ground Control118.300
Torrejon Tower122.100
Torrejon Approach119.950

Approach frequencies

ILS-cat-IRW22109.518.00mi
3° GSRW22109.518.00mi
Nearby Points of Interest:
Casa de Hippolytus
-
Walls of Alcalá de Henares
-
Don Juan en Alcalá
-
Portada del Torreón del Archivo General Central del Reino
-
Hospital de San Lucas y San Nicolás
-
Edificio de las Cráteras, Alcalá de Henares
-
Cenotaph of Cardenal Cisneros
-
Manzana Fundacional Cisneriana de la Universidad de Alcalá
-
Colegio de Mena (Alcalá de Henares)
-
Colegio de Dominicos de Santo Tomás de Aquino
-
Church of San Pedro Apóstol
-
Castle of Malsobaco
-
Zona arqueológica Ecce Homo o de la Vera Cruz y Alcalá la Vieja
-
Church of la Asunción de Nuestra Señora
-
Chapel of San Fausto
-
gasolinera de la avenida de Aragón
-
Church of San Esteban
-
iglesia Parroquial de Nuestra Señora de la Asunción
-
Convento, teologado e iglesia de San Pedro Mártir, Madrid
-
convent of Madres Reparadoras
-
Biblioteca Pública Manuel Alva
-
House of Hermanitas de los Pobres
-
Hospital Santa Cristina
-
Gimnasio del Colegio Maravillas
-
Residencia de Estudiantes

Runway info

Runway 04 / 22
 length3750m (12303ft)
 bearing51° / 231°
 width66m (217ft)
 surfaceasphalt
 displ threshold1016m (3333ft) / 0m (0ft)
 blast zone255m (837ft) / 255m (837ft)

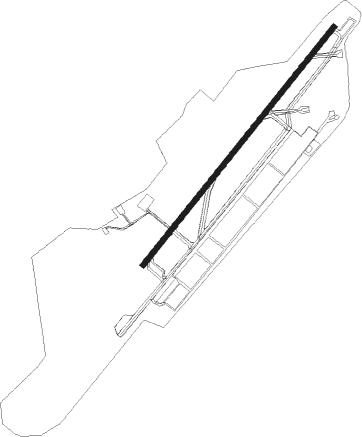

Airport layout


Taxiway locations

 C1  C2  C3  C4  C5  C6  C61  C62
 C63  C7  C8  PE6
Parking locations

 Heli  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
TJZTORREJON (MADRID) TACAN0.6269°112.50
VTZTORREJON (MADRID) VOR/DME2.2239°115.10
BRABARAJAS VOR/DME5.9257°116.45
SSYS.S.REYES VOR/DME7.1288°117.85
PDTPERALES VOR/DME15.2161°116.95
CNRCOLMENAR VIEJO VOR/DME16.4296°117.30
CVTCUATRO VIENTOS NDB17.4249°417
VGEGETAFE (MADRID) VORTAC18.4235°112.05
ECVCOLMENAR VIEJO NDB19.2301°319
RBOROBLEDILLO VOR/DME22.928°113.95
GEGETAFE (MADRID) NDB26234°421
NVSNAVAS DEL REY VOR/DME38.1261°114.95
SIESOMOSIERRA VOR/DME39.9345°115.40
CJNCASTEJON VOR/DME41.298°115.60
VTBVILLATOBAS VOR/DME43.1183°112.70
TLDTOLEDO VOR/DME52.2240°113.20
BANBARAHONA VOR/DME61.444°112.80

Departure and arrival routes

Transition altitude13000ft
SID end pointsdistanceoutbound heading
RW04
 RBO4G23mi28°
 PINA6G48mi60°
 OSCA1F17mi80°
 NAND3Q65mi112°
 VTB2J43mi183°
 KAMP1N54mi219°
 TLD1D52mi240°
 CCS3J150mi252°
 NVS1J38mi261°
 BARD2J131mi272°
 ZMR2U, ZMR1J118mi295°
 SIE3G40mi345°
RW22
 RBO4F23mi28°
 BAN2M, BAN2P61mi44°
 PINA6F, PINA1P, PINA1M48mi60°
 OSCA2G, OSCA1R17mi80°
 NAND3H65mi112°
 VTB3Z43mi183°
 KAMP1P, KAMP1M54mi219°
 TLD1M, TLD1Y52mi240°
 CCS3H150mi252°
 NVS1M, NVS1T38mi261°
 BARD2H131mi272°
 ZMR1Y, ZMR2D118mi295°
 SIE3F, SIE1Y, SIE1M40mi345°

STAR starting pointsdistanceinbound heading
RW04
 MORA3L90.14°
 SOTU3L99.045°
 TLD1G52.260°
 RIDA1G108.491°
 ZMR2M117.6115°
 ORBI2L57.6135°
 BAN2L61.4224°
 TERS2M60.5260°
 ADUX1L62.4269°
 PRAD1L68.4284°
 VILA1L49.4285°
 NASO2L68.6340°
RW22
 MORA3T90.14°
 SOTU4T99.045°
 TLD3T52.260°
 RIDA1T108.491°
 ZMR2Z117.6115°
 ORBI2T57.6135°
 BAN5T61.4224°
 TERS2T60.5260°
 PRAD1T68.4284°
 VILA1T49.4285°
 NASO2T68.6340°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADUX1LADUXOVHFright70 (250)°10000ft - 24000ftDME 5.4miICAO rules
ADUX1LASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
ADUX1LSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
BAN2LASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
BAN2LBANNDBright27 (207)°10000ft - 24000ftDME 15.0miICAO rules
BAN2LNOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
BAN5TBANNDBright27 (207)°10000ft - 24000ftDME 15.0miICAO rules
BAN5TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
MORA3LBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
MORA3LTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
MORA3TBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
MORA3TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
MORA3TTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
NASO2LASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
NASO2LSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
NASO2TCJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
NASO2TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
ORBI2LNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
ORBI2LORBISVHFleft6 (186)°12000ft - 24000ft1.0min timed220
ORBI2LTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
ORBI2TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
ORBI2TNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
ORBI2TORBISVHFleft6 (186)°12000ft - 24000ft1.0min timed220
ORBI2TTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
PRAD1LASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
PRAD1LPRADOVHFright120 (300)°8000ft - 21000ftDME 5.0miICAO rules
PRAD1LSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
PRAD1TCJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
PRAD1TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
PRAD1TPRADOVHFright120 (300)°8000ft - 21000ftDME 5.0miICAO rules
RIDA1GBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
RIDA1GTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
RIDA1GTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
RIDA1TBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
RIDA1TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
RIDA1TTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
RIDA1TTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
SOTU3LBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
SOTU3LTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
SOTU4TBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
SOTU4TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
SOTU4TTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
TERS2MASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
TERS2MNOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
TERS2MTERSAVHFright43 (223)°15000ft - 24000ft1.5min timedICAO rules
TERS2TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
TERS2TTERSAVHFright43 (223)°15000ft - 24000ft1.5min timedICAO rules
TLD1GBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
TLD1GTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
TLD1GTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
TLD3TBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
TLD3TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
TLD3TTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
TLD3TTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
VILA1LASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
VILA1LSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
VILA1TCJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
VILA1TDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
ZMR2MAVILAVHFleft319 (139)°12000ft - 24000ftDME 9.4miICAO rules
ZMR2MNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
ZMR2MTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
ZMR2ZAVILAVHFleft319 (139)°12000ft - 24000ftDME 9.4miICAO rules
ZMR2ZDUKKEVHFright134 (314)°6000ft - 11000ftDME 5.0miICAO rules
ZMR2ZNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
ZMR2ZTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
