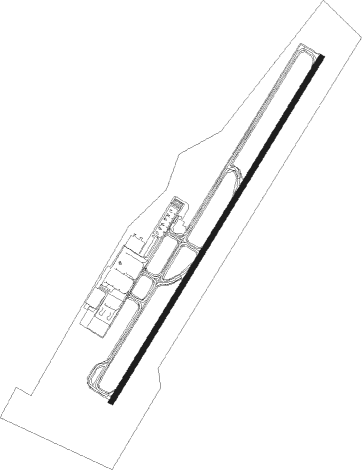

Alava - Vitoria Foronda
Airport details
| Country | Spain |
| State | Autonomous Community of the Basque Count |
| Region | LE |
| Airspace | Madrid Ctr |
| Municipality | Vitoria-Gasteiz |
| Elevation | 1683ft (513m) |
| Timezone | GMT +1 |
| Coordinates | 42.88284, -2.72447 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LEVT |
| IATA code | VIT |
| FAA code | n/a |
Communication
| Vitoria Foronda Ground Control | 121.800 |
| Vitoria Foronda Tower | 118.450 |
Approach frequencies
| ILS-cat-II | RW04 | 108.9 | 18.00mi |
| 3° GS | RW04 | 108.9 | 18.00mi |
Nearby Points of Interest:
Puente viejo de Abetxuko
-Martioda dorretxea
-Torre de doña Ochanda
-Museo de Arqueología de Álava
-Torre de los Anda
-Palacio de Montehermoso (Vitoria)
-Centro Fray Zacarías Martinez
-Palace of Augustin
-Palacio-Casa de San Prudencio
-Salburua
-Palacio Zurbano
-Palacio Otálora-Guevara, Zurbano
-Casa Artzamendi
-El Calero, Nanclares de la Oca
-Horno De Ollerias
-Church of San Pedro Apóstol, Treviño
-Caserío Urbina
-Kapitangoa Jauregia
-Santuario de Nuestra Señora de Ayala
-Casa De Los Gaona
-Iglesia De San Blas
-Town hall of Otxandio
-Casa consistorial de Barrundia
-Iglesia De San Sebastián De Artxua
-Puenteviejo Zubia/Puenteviejo
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VFD | VITORIA-FORONDA VOR/DME | 0.1 | 177° | 112.90 |
| VTA | VITORIA NDB | 3.3 | 45° | 345 |
| VT | VITORIA NDB | 5.9 | 225° | 308 |
| VRA | VITORIA VOR/DME | 10.9 | 223° | 116.60 |
| DGO | DOMINGO VOR/DME | 26.7 | 200° | 112.60 |
| BLV | BILBAO VOR/DME | 26.9 | 333° | 115.90 |
| LPA | LOGRONO VOR/DME | 30.8 | 137° | 115.45 |
| EAG | LOGRONO NDB | 31.6 | 136° | 399 |
| B | BILBAO NDB | 32.4 | 328° | 395 |
| SSN | SAN SEBASTIAN VOR/DME | 46.8 | 64° | 117.90 |
| BUR | BURGOS VOR/DME | 50.4 | 239° | 111.40 |
| HIG | SAN SEBASTIAN NDB | 50.6 | 62° | 328 |
| HIG | SEBASTIAN DME | 50.7 | 62° | 113.20 |
Departure and arrival routes
| Transition altitude | 6000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 | |||
| UDAL1A | 17mi | 43° | |
| CEGA3B | 22mi | 78° | |
| PPN2A | 46mi | 98° | |
| VRA1A | 11mi | 223° | |
| RW22 | |||
| NEA3D | 92mi | 63° | |
| CEGA3F | 22mi | 78° | |
| PPN1D | 46mi | 98° | |
| RATA3A | 61mi | 257° | |
| BLV1D | 27mi | 333° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW04 | |||
| BLV1C, BLV1P | 26.9 | 153° | |
| NEA2E, NEA2P | 91.5 | 243° | |
| CEGA2A, CEGA2P | 22.3 | 258° | |
| PPN1P, PPN1N, PPN1K, PPN1J | 45.9 | 278° | |
| RW22 | |||
| BLV1K, BLV2F | 26.9 | 153° | |
| NEA3F, NEA2K | 91.5 | 243° | |
| CEGA3H, CEGA2S, CEGA2R, CEGA2J | 22.3 | 258° | |
| PPN1X, PPN2M | 45.9 | 278° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BLV1C | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| BLV1C | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| BLV1C | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| BLV1K | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| BLV1K | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| BLV1K | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| BLV1K | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| BLV1K | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| BLV1P | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| BLV1P | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| BLV1P | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| BLV2F | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| BLV2F | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| BLV2F | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| BLV2F | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| BLV2F | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| CEGA2A | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| CEGA2A | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| CEGA2A | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| CEGA2J | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| CEGA2P | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| CEGA2P | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| CEGA2P | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| CEGA2R | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| CEGA2R | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| CEGA2R | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| CEGA2R | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| CEGA2R | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| CEGA2S | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| CEGA3H | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| CEGA3H | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| CEGA3H | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| CEGA3H | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| CEGA3H | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| DGO1C | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| DGO1C | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| DGO1C | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| DGO1J | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| DGO1J | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| DGO1J | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| DGO1S | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| DGO1S | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| DGO1S | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| DGO1S | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| DGO1S | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| DGO2D | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| DGO2D | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| DGO2D | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| DGO2D | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| DGO2D | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| NEA2E | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| NEA2E | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| NEA2E | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| NEA2K | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| NEA2K | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| NEA2K | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| NEA2K | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| NEA2K | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| NEA2P | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| NEA2P | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| NEA2P | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| NEA3F | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| NEA3F | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| NEA3F | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| NEA3F | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| NEA3F | VTA | FIX | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| PPN1J | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| PPN1J | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| PPN1J | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| PPN1K | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| PPN1K | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| PPN1K | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| PPN1K | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| PPN1N | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| PPN1N | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| PPN1N | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| PPN1P | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| PPN1P | LOPNA | VHF | left | 217 (37)° | > 6000ft | DME 5.0mi | 210 |
| PPN1P | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| PPN1P | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| PPN1X | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| PPN1X | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| PPN1X | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| PPN1X | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| PPN2M | ARBIN | VHF | right | 41 (221)° | > 6000ft | DME 5.0mi | ICAO rules |
| PPN2M | VFD | NDB | left | 216 (36)° | > 6000ft | 1.0min timed | 210 |
| PPN2M | VRA | NDB | left | 216 (36)° | > 5500ft | DME 5.2mi | 210 |
| PPN2M | VT | FIX | left | 216 (36)° | > 5500ft | 1.0min timed | 210 |
| *) magnetic outbound (inbound) holding course | |||||||
