Airports for X-Plane

Bordeaux/mérignac - Bordeaux Merignac

Airport details

CountryFrance
StateNouvelle-Aquitaine
RegionLF
AirspaceBordeaux Ctr
MunicipalityMérignac
Elevation166ft (51m)
TimezoneGMT +1
Coordinates44.83834, -0.69645
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFBD
IATA codeBOD
FAA coden/a

Communication

Bordeaux Merignac ATIS131.150
Bordeaux Merignac Ground121.900
Bordeaux Merignac Tower118.300
Bordeaux Merignac Approach118.600

Approach frequencies

ILS-cat-IIIRW23110.318.00mi
ILS-cat-IRW29111.1518.00mi
3° GSRW23110.318.00mi
3° GSRW29111.1518.00mi

Runway info

Runway 05 / 23
 length3101m (10174ft)
 bearing55° / 235°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 11 / 29
 length2416m (7927ft)
 bearing102° / 282°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

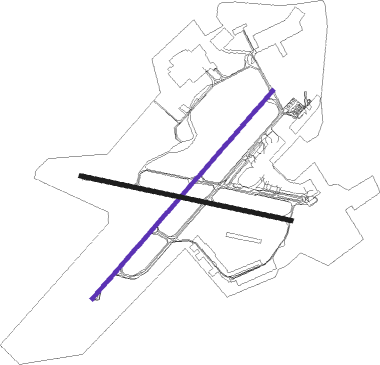

Airport layout - runway 05 / 23


Taxiway locations

 A  B  C  D  E3  E4  E5  E6
 F  G  M2  P2  P3  P4  P5  P6
 S1  S3  S4  U
Parking locations

 A10  A11  A12  A12N  A12S  A13  A13N  A13S
 A5  A6  A7  A8  A9  B1  B2  B3
 B5  B6  B8  B9  C1  C2  C3  C6
 D1  D4  D5  D6  F1  F2  F3  F4
 J11  J13  J21  J22  J23  J31  K1  K2
 K4

Nearby beacons

codeidentifierdistbearingfrequency
BMCBORDEAUX MERIGNAC VOR/DME1.2245°113.75
BDBORDEAUX NDB8.154°393
BEBORDEAUX NDB12.884°318
NBBORDEAUX NDB19.525°361
CAACAZAUX NDB24.9236°382
SAUSAUVETERRE DE GUYENNE VOR25.1107°116.80
CAACAZAUX TACAN26.3235°110.80
BRSBISCARROSSE NDB33.8222°358
RYROYAN NDB47.2348°427
CNACOGNAC CHATEAUBERNARD VOR/DME51.925°114.65
CGCCOGNAC CHATEAUBERNARD TACAN5225°116.20
BGCBERGERAC NDB5691°374
LGHMARSAN (MONT-DE-MARSAN) VOR/DME56.3168°111.65
MDMMARSAN (MONT-DE-MARSAN) TACAN56.3168°108.70
OCCOGNAC NDB58.731°346
AGOANGOULEME NDB70.752°404
PXPERIGUEUX NDB71.178°389
AGAGEN NDB71.7117°400

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW05
 CNA5Q, CNA5B52mi25°
 VAVI5Z, VAVI5Q, VAVI5B34mi180°
 ROYA5Z, ROYA5Q, ROYA5B52mi338°
RW11
 CNA5E52mi25°
 VAVI5E34mi180°
 ROYA5E52mi338°
RW23
 CNA5A, CNA5P52mi25°
 VAVI5P, VAVI5A34mi180°
 ROYA5P, ROYA5A52mi338°
RW29
 CNA5R, CNA5W52mi25°
 VAVI5R, VAVI5W34mi180°
 ROYA5R, ROYA5W52mi338°

STAR starting pointsdistanceinbound heading
ALL
 ROYA9L, ROYA9K51.7158°
 CNA9K, CNA9L51.9205°
 LMG9K, LMG9L93.4240°
 VELI9L, VELI9K37.2261°
 BGC9K, BGC9L56.0271°
 MIRB9L, MIRB9K44.1276°
 VAVI9K, VAVI9L33.6360°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-VSOGBO (106°)SOGBO 5000ft
BD01V (4mi, 198°)
BD02V (4mi, 112°) 1470ft
 RNAVBD02V 1470ft
LFBD (5mi, 56°) 209ft
BD050 (1mi, 49°)
ETPAR (22mi, 332°) 4000ft
ETPAR (turn) 4000ft
RW05DIRAX (320°)DIRAX
BD054 (11mi, 294°) 5000ft
BD052 (5mi, 275°) 3000ft
D135B (3mi, 306°) 3000ft
IBD05 (2mi, 306°) 3000ft
RW05ETPAR (155°)ETPAR
BD055 (17mi, 179°) 5000ft
BD053 (6mi, 233°) 3000ft
BD051 (3mi, 196°) 3000ft
D317B (4mi, 128°) 3000ft
IBD05 (2mi, 128°) 3000ft
RW05LIBRU (264°)LIBRU
BD058 (7mi, 272°)
BD056 (16mi, 233°)
BD054 (4mi, 233°) 5000ft
BD052 (5mi, 275°) 3000ft
D135B (3mi, 306°) 3000ft
IBD05 (2mi, 306°) 3000ft
RW05VAGN1 (359°)VAGNA
BD057 (11mi, 275°)
BD055 (17mi, 233°) 5000ft
BD053 (6mi, 233°) 3000ft
BD051 (3mi, 196°) 3000ft
D317B (4mi, 128°) 3000ft
IBD05 (2mi, 128°) 3000ft
RW05VAGN2 (359°)VAGNA
BD058 (12mi, 186°)
BD056 (16mi, 233°)
BD054 (4mi, 233°) 5000ft
BD052 (5mi, 275°) 3000ft
D135B (3mi, 306°) 3000ft
IBD05 (2mi, 306°) 3000ft
 RNAVIBD05 2000ft
FBD05 (3mi, 55°) 2000ft
LFBD (7mi, 56°) 209ft
BD050 (1mi, 49°) 4000ft
ETPAR (22mi, 332°) 4000ft
ETPAR (turn) 4000ft
RW11DIRAX (320°)DIRAX
BD113 (22mi, 359°) 4000ft
BD111 (19mi, 275°) 3000ft
IBD11 (5mi, 202°) 2000ft
RW11ETPAR (155°)ETPAR
BD111 (15mi, 189°) 3000ft
IBD11 (5mi, 202°) 2000ft
RW11LIBRU (264°)LIBRU
BD113 (12mi, 275°) 4000ft
BD111 (19mi, 275°) 3000ft
IBD11 (5mi, 202°) 2000ft
RW11VAGNA (234°)VAGNA
BD111 (25mi, 255°) 3000ft
IBD11 (5mi, 202°) 2000ft
 RNAVIBD11 2000ft
FBD11 (4mi, 102°) 2000ft
LFBD (6mi, 97°) 202ft
BD110 (1mi, 142°) 3000ft
BD112 (8mi, 197°)
BD114 (12mi, 171°) 5000ft
DIRAX (11mi, 76°)
DIRAX (turn) 5000ft
RW23DIRAX (320°)DIRAX
BD232 (21mi, 16°)
IBD23 (8mi, 306°) 4000ft
RW23ETPAR (155°)ETPAR
BD231 (12mi, 115°)
IBD23 (8mi, 126°) 4000ft
RW23LIBRU (264°)LIBRU
BD232 (7mi, 272°)
IBD23 (8mi, 306°) 4000ft
RW23VAGNA (234°)VAGNA
IBD23 (9mi, 234°) 4000ft
 RNAVIBD23 3000ft
FBD23 (4mi, 235°) 3000ft
LFBD (9mi, 234°) 205ft
BD230 (4mi, 237°) 4000ft
ETPAR (25mi, 347°) 4000ft
ETPAR (turn) 4000ft
RW29DIRAX (320°)DIRAX
BD292 (7mi, 12°)
IBD29 (6mi, 12°) 4000ft
RW29ETPAR (155°)ETPAR
BD291 (29mi, 125°) 6000ft
IBD29 (6mi, 203°) 4000ft
RW29LIBRU (264°)LIBRU
IBD29 (12mi, 240°) 4000ft
RW29VAGNA (234°)VAGNA
BD291 (15mi, 188°) 6000ft
IBD29 (6mi, 203°) 4000ft
 RNAVIBD29 3000ft
FBD29 (4mi, 282°) 3000ft
LFBD (9mi, 286°) 210ft
BD290 (2mi, 266°)
ETPAR (22mi, 342°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BGC9KLIBRUVHFleft80 (260)°5000ft - 12000ftDME 4.6mi220
BGC9LLIBRUVHFleft80 (260)°5000ft - 12000ftDME 4.6mi220
CNA9KVAGNAVHFleft45 (225)°5000ft - 12000ftDME 4.6mi220
CNA9LVAGNAVHFleft45 (225)°5000ft - 12000ftDME 4.6mi220
LMG9KVAGNAVHFleft45 (225)°5000ft - 12000ftDME 4.6mi220
LMG9LVAGNAVHFleft45 (225)°5000ft - 12000ftDME 4.6mi220
MIRB9KLIBRUVHFleft80 (260)°5000ft - 12000ftDME 4.6mi220
MIRB9LLIBRUVHFleft80 (260)°5000ft - 12000ftDME 4.6mi220
ROYA9KETPARVHFleft345 (165)°5000ft - 12000ftDME 4.6mi220
ROYA9LETPARVHFleft345 (165)°5000ft - 12000ftDME 4.6mi220
VAVI9KDIRAXVHFleft145 (325)°5000ft - 9000ftDME 4.2mi220
VAVI9LDIRAXVHFleft145 (325)°5000ft - 9000ftDME 4.2mi220
VELI9KLIBRUVHFleft80 (260)°5000ft - 12000ftDME 4.6mi220
VELI9LLIBRUVHFleft80 (260)°5000ft - 12000ftDME 4.6mi220
*) magnetic outbound (inbound) holding course
