Airports for X-Plane

Sitia

Airport details

CountryGreece
StateRegion of Crete
RegionLG
AirspaceAthens Ctr
MunicipalitySitia Municipal Unit
Elevation375ft (114m)
TimezoneGMT +2
Coordinates35.21645, 26.09836
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGST
IATA codeJSH
FAA coden/a

Communication

Sitia INFO122.600
Nearby Points of Interest:
Roussolakkos excavation
-
Kavousi Vronda
-
Malia

Runway info

Runway 05 / 23
 length2078m (6818ft)
 bearing56° / 236°
 width45m (148ft)
 surfaceasphalt

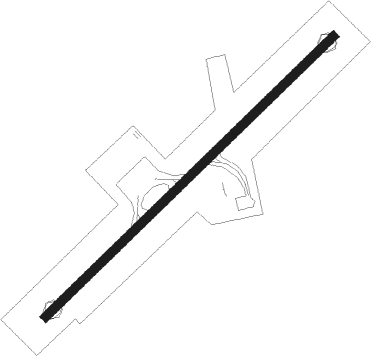

Airport layout


Parking locations

 Apron  C1  C2

Nearby beacons

codeidentifierdistbearingfrequency
SHTSITIA VOR/DME0.475°112.90
SITSITIA VOR/DME9.9149°113.30
KAOKASSOS NDB41.776°333
IRAIRAKLION VOR/DME45.3278°108.80
HERIRAKLION NDB45.5277°431

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW05
 DELA2K46mi39°
 MOKI2K33mi84°
 AMAX2K17mi249°
 VEGE2K21mi269°
 XAVI2K38mi313°
 LABU1K25mi327°
RW23
 DELA2V46mi39°
 MOKI2V33mi84°
 AMAX2V17mi249°
 VEGE2V21mi269°
 XAVI2V38mi313°
 LABU1V25mi327°

STAR starting pointsdistanceinbound heading
RW23
 AMAX2H17.069°
 XAVI2H, XAVI2J38.4133°
 LABU1J24.8147°
 DELA1J45.8219°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMAX2HOSKIMVHFright44 (224)°> 3000ft1.0min timedICAO rules
DELA1JOSKIMVHFright44 (224)°> 3000ft1.0min timedICAO rules
MOKI2HOSKIMVHFright44 (224)°> 3000ft1.0min timedICAO rules
SIT2HOSKIMVHFright44 (224)°> 3000ft1.0min timedICAO rules
VEGE2HOSKIMVHFright44 (224)°> 3000ft1.0min timedICAO rules
XAVI2HOSKIMVHFright44 (224)°> 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
