Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

concrete airport check-in rail transport air traffic control transit near airline flown grass flight hospital landing area port nearby passenger taxi commuter stolport international airport kennedy

Airports for X-Plane

Tanagra

Airport details

CountryGreece
StateThessaly and Central Greece
RegionLG
AirspaceAthens Ctr
MunicipalityΔημοτική Ενότητα Σχηματαρίου
Elevation483ft (147m)
TimezoneGMT +2
Coordinates38.33985, 23.56496
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGTG
IATA coden/a
FAA coden/a

Communication

Tanagra Tower122.100
Tanagra Tower120.250
Tanagra Approach120.250
Tanagra Approach122.100

Approach frequencies

ILS-cat-IRW28C111.518.00mi
3° GSRW28C111.518.00mi
Nearby Points of Interest:
Chalkida station
-
Eretria
-
Cadmea of Thebes
-
Phyle
-
Larymna
-
Queen's Tower
-
Omorfokklisia
-
Moni Phaneromeni
-
Livieratos Mansion
-
Averof building
-
Lapathiotis House
-
Athens City Hall
-
Athens trilogy
-
Agii Theodori (Athens)
-
Hall of the Academy of Athens
-
tempi hotel
-
Gasparis house
-
Agios Ioannis Theologos (Athens)
-
Old Royal Palace
-
Old Temple of Athena
-
Church House
-
Brauroneion
-
Chalkotheke
-
Sarogleio Mansion

Runway info

Runway 10L / 28R
 length2880m (9449ft)
 bearing100° / 280°
 width25m (82ft)
 surfaceasphalt
 displ threshold150m (492ft) / 0m (0ft)
 blast zone5m (16ft) / 0m (0ft)
Runway 10R / 28L
 length2675m (8776ft)
 bearing100° / 280°
 width25m (82ft)
 surfaceasphalt
 displ threshold150m (492ft) / 0m (0ft)
 blast zone236m (774ft) / 255m (837ft)
Runway 10C / 28C
 length2914m (9560ft)
 bearing100° / 280°
 width45m (148ft)
 surfaceasphalt
 displ threshold152m (499ft) / 0m (0ft)
 blast zone255m (837ft) / 202m (663ft)

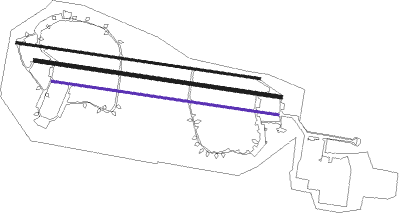

Airport layout - runway 10R / 28L


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
TGGTANAGRA VOR/DME0.3255°111.80
TGRTANAGRA TACAN2.3281°108.40
TNGTANAGRA NDB7.995°303
ELFELEFSIS TACAN16.4181°108.20
LEFELEFSIS VOR/DME16.7181°109.85
MGRMEGARA NDB23.6210°405
ATVATHENS VOR/DME29.3152°114.40
SATATHENS VOR/DME30.3140°109.60
SPAATHENS VOR/DME30.8139°117.50
EGNAIGINA NDB35194°382
KORKORINTHOS NDB38.5237°392
KROKARISTOS VOR/DME48.5110°112.20
SKCSKIATHOS NDB50.1356°326
SKPSKOPELOS VOR/DME50.53°113.40
DDMDIDIMON VOR/DME54.3202°117.20
SKSSKIROS VOR/DME57.855°116.60
SKYSKYROS TACAN57.856°116.10
KEAKEA VOR/DME58.4137°115
AGHANCHIALOS VOR/DME63.8319°110.40
ANLNEA ANCHIALOS TACAN65317°115.60

Departure and arrival routes

Transition altitude9000ft
SID end pointsdistanceoutbound heading
RW10C
 OLID1D63mi87°
 SOSI1P74mi88°
 ELF1P16mi181°
 IXO1P, IXON1D63mi269°
 ANL1P65mi317°
 AGH1D64mi319°
RW28C
 OLID1C63mi87°
 SOSI1N74mi88°
 ELF1N16mi181°
 IXON1C, IXON1N63mi269°
 ANL1N65mi317°
 AGH1C64mi319°

STAR starting pointsdistanceinbound heading
RW10C
 ELF1Y16.41°
 IXON1Y62.889°
 XANI1Y66.3100°
 ANL1Y65.0137°
 SIGF1Y36.4188°
 SOSI1Y73.6268°
RW28C
 ELF1M10.47°
 IXON1M43.189°
 ANL1L, ANL1M41.8136°
 AGH3E41.1139°
 SIGF1R, SIGF1Q36.4188°
 ATV3A13.8310°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGH3ED055LVHFleft235 (55)°8000ft - 13000ftDME 5.0mi260
ANL1MD060NVHFleft240 (60)°8000ft - 13000ftDME 5.0mi260
ANL1YD328KVHFright148 (328)°1.0min timedICAO rules
ATV2YD328KVHFright148 (328)°1.0min timedICAO rules
ATV3AD055LVHFleft235 (55)°8000ft - 13000ftDME 5.0mi260
ELF1YD328KVHFright148 (328)°1.0min timedICAO rules
IXON1MD060NVHFleft240 (60)°8000ft - 13000ftDME 5.0mi260
IXON1YD328KVHFright148 (328)°1.0min timedICAO rules
IXON3AD055LVHFleft235 (55)°8000ft - 13000ftDME 5.0mi260
SIGF1QD060NVHFleft240 (60)°8000ft - 13000ftDME 5.0mi260
SIGF1YD328KVHFright148 (328)°1.0min timedICAO rules
SKP3DD055LVHFleft235 (55)°8000ft - 13000ftDME 5.0mi260
SKY1YD328KVHFright148 (328)°1.0min timedICAO rules
SOSI1YD328KVHFright148 (328)°1.0min timedICAO rules
SOSI3AD055LVHFleft235 (55)°8000ft - 13000ftDME 5.0mi260
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
