Airports for X-Plane

Palermo

Airport details

CountryItaly
StateSicily
RegionLI
AirspaceRome Ctr
MunicipalityCinisi
Elevation62ft (19m)
TimezoneGMT +1
Coordinates38.18195, 13.09944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLICJ
IATA codePMO
FAA coden/a

Communication

Palermo PALERMO ATIS123.875
Palermo Ground Control121.625
Palermo Tower119.050
Palermo Approach118.650
Palermo Approach120.200

Approach frequencies

ILS-cat-IRW20110.5518.00mi
ILS-cat-IRW25109.518.00mi
3° GSRW20110.5518.00mi
3° GSRW25109.518.00mi
Nearby Points of Interest:
Villa Malfitano Whitaker
-
Villa Zito
-
Palazzo Ziino
-
Palazzo Branciforte
-
Palazzo Alliata di Villafranca
-
Conservatorio di Musica Vincenzo Bellini di Palermo
-
Palazzo Ajutamicristo
-
Archivio di Stato di Palermo
-
Oratorio dei Bianchi
-
Arab Fountain
-
Palazzo De Ballis
-
Ex Jesuits' College
-
Palazzo Comunale
-
Castle of Ventimiglia
-
Museo della casa contadina
-
Museo del Sale
-
Biblioteca Liciniana

Runway info

Runway 07 / 25
 length3321m (10896ft)
 bearing71° / 251°
 width60m (197ft)
 surfaceasphalt
 displ threshold119m (390ft) / 200m (656ft)
 blast zone180m (591ft) / 96m (315ft)
Runway 02 / 20
 length2077m (6814ft)
 bearing29° / 209°
 width45m (148ft)
 surfaceasphalt
 blast zone28m (92ft) / 0m (0ft)

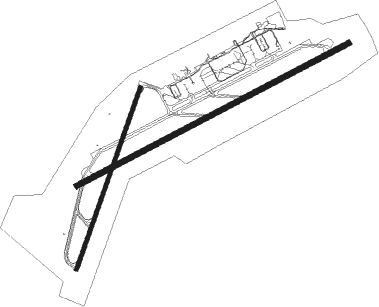

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  L
 S  T
Parking locations

 101  102  103  104  105  106  107  108
 109  110  111  112  113  207  208  209
 210  211  212  213  214  215  216  217
 218  219  220  221  301  302  303  304
 305  306  310  311  312  313  317  318
 319

Nearby beacons

codeidentifierdistbearingfrequency
PRSRAISI (PALERMO) VOR/DME1243°113
PALPALERMO VOR/DME9.6152°112.30
TRPTRAPANI VORTAC32.6244°108.80
TRPTRAPANI NDB32.8246°317

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW02
 LURO6A, LURO5S41mi1°
 ROSA8B, ROSA5S45mi33°
 TRP5W, TRP7A33mi244°
 KAPI7A, KAPI5W47mi280°
 GIAN6A, GIAN5S51mi317°
RW07
 LURO6A, LURO5R41mi1°
 ROSA8B, ROSA5R45mi33°
 TRP7A, TRP5U33mi244°
 KAPI5U, KAPI7A47mi280°
 GIAN5R, GIAN6A51mi317°
RW20
 LURO5Q, LURO6A41mi1°
 ROSA8B, ROSA5Q45mi33°
 TRP7A, TRP5Q33mi244°
 KAPI7A, KAPI6T47mi280°
 GIAN6A, GIAN5Q51mi317°
RW25
 LURO6A, LURO5Q41mi1°
 ROSA8B, ROSA5Q45mi33°
 TRP7A, TRP5T, TRP5Q33mi244°
 KAPI7A, KAPI6T47mi280°
 GIAN6A, GIAN5Q51mi317°

STAR starting pointsdistanceinbound heading
ALL
 GIAN1E, GIAN4B, GIAN4F51.3137°
 LURO3B, LURO4E40.6181°
 KOLO2B18.0209°
 ROSA4G, ROSA3B45.1213°
 LAVR2B12.9252°
 PELE4B64.5264°
RW07
 TRP2X32.664°
 KAPI2X47.0100°
 GIAN2N51.3137°
 LURO2N40.6181°
 ROSA2N45.1213°
RW20
 TRP2M, TRP1V32.664°
 KAPI2V47.0100°
 SALA1V15.0134°
 GIAN2M51.3137°
 LURO2M40.6181°
 ROSA2M45.1213°
RW25
 TRP3P32.664°
 KAPI3P47.0100°
 GIAN3L51.3137°
 LURO3L40.6181°
 KOLO2P18.0209°
 ROSA3L45.1213°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-YIXOSI (103°)IXOSI 5000ft
BIBSO (9mi, 152°) 2300ft
 RNAVBIBSO 2300ft
CJ511 (3mi, 71°) 2300ft
CJ513 (6mi, 71°) 256ft
(2404mi, 199°)
UXUPI (2411mi, 19°) 3000ft
UXUPI (turn) 3000ft
RW07-ZIXOSI (103°)IXOSI 5000ft
BIBSO (9mi, 152°) 2300ft
 RNAVBIBSO 2300ft
CJ511 (3mi, 71°) 2300ft
CJ512 (4mi, 71°) 879ft
(2402mi, 199°) 880ft
(turn)
UXUPI (2411mi, 19°) 3000ft
UXUPI (turn) 3000ft
RW20-YKOLOR (209°)KOLOR 5000ft
OXUGI (5mi, 210°) 3000ft
 RNAVOXUGI 3000ft
CJ514 (4mi, 209°) 3000ft
LICJ (9mi, 208°) 79ft
CJ517 (turn)
(2404mi, 199°)
SALAP (2412mi, 19°) 3000ft
SALAP (turn) 3000ft
RW20-ZKOLOR (209°)KOLOR 5000ft
OXUGI (5mi, 210°) 3000ft
 RNAVOXUGI 3000ft
CJ514 (4mi, 209°) 3000ft
CJ516 (7mi, 209°) 911ft
SALAP (14mi, 305°) 3000ft
SALAP (turn) 3000ft
RW25-YLAVRU (252°)LAVRU 3500ft
 RNAVLAVRU 3500ft
CJ532 (3mi, 252°) 3000ft
CJ534 (7mi, 251°) 681ft
KOLOR (16mi, 20°) 3000ft
KOLOR (turn) 3000ft
RW25-ZLAVRU (252°)LAVRU 3500ft
 RNAVLAVRU 3500ft
CJ532 (3mi, 252°) 3000ft
CJ533 (5mi, 252°) 1381ft
KOLOR (15mi, 12°) 3000ft
KOLOR (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GIAN1ELAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
GIAN2MKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
GIAN2MLUTESVHFright304 (124)°> 5000ftDME 4.2mi230
GIAN2NIXOSIVHFright334 (154)°> 5000ftDME 3.8mi210
GIAN2NNALUVVHFright332 (152)°> 5000ftDME 4.2mi230
GIAN3LLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
GIAN3LREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
GIAN4BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
GIAN4BRONDIVHFleft322 (142)°> 7000ftDME 5.0miICAO rules
GIAN4BSALAPVHFright322 (142)°5000ft - 60000ftDME 4.0miICAO rules
GIAN4FKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
KAPI2VKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
KAPI2VLUTESVHFright304 (124)°> 5000ftDME 4.2mi230
KAPI2XIXOSIVHFright334 (154)°> 5000ftDME 3.8mi210
KAPI3PLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
KAPI3PREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
KOLO2BKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
KOLO2BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
KOLO2PLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
KOLO2PREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
LAVR2BLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
LAVR2BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
LURO2MKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
LURO2MLUTESVHFright304 (124)°> 5000ftDME 4.2mi230
LURO2NIXOSIVHFright334 (154)°> 5000ftDME 3.8mi210
LURO2NNALUVVHFright332 (152)°> 5000ftDME 4.2mi230
LURO3BFIZZYVHFright3 (183)°> 8000ftDME 4.0mi210
LURO3BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
LURO3LLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
LURO3LREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
LURO4EFIZZYVHFright3 (183)°> 8000ftDME 4.0mi210
LURO4ELAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
PAL1PLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
PAL2MKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
PAL2NIXOSIVHFright334 (154)°> 5000ftDME 3.8mi210
PAL3ELAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
PAL3FKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
PAL3LLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
PAL3LREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
PAL4BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
PELE4BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
ROSA2MKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
ROSA2NIXOSIVHFright334 (154)°> 5000ftDME 3.8mi210
ROSA2NNALUVVHFright332 (152)°> 5000ftDME 4.2mi230
ROSA3BPRSNDBleft208 (28)°> 5000ft1.0min timedICAO rules
ROSA3BSPUMAVHFright17 (197)°> 8000ftDME 4.0mi210
ROSA3LLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
ROSA3LREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
ROSA4GLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
ROSA4GSPUMAVHFright17 (197)°> 8000ftDME 4.0mi210
SALA1VKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
TRP1VKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
TRP2MKOLORVHFleft22 (202)°> 5000ftDME 4.0miICAO rules
TRP2XIXOSIVHFright334 (154)°> 5000ftDME 3.8mi210
TRP3PLAVRUVHFright64 (244)°> 3500ftDME 3.1mi185
TRP3PREDKOVHFleft244 (64)°> 4000ftDME 3.8mi210
*) magnetic outbound (inbound) holding course
