Airports for X-Plane

Sigonella (ct) - Catania Sigonella

Airport details

CountryItaly
StateSicily
RegionLI
AirspaceRome Ctr
MunicipalityLentini
Elevation79ft (24m)
TimezoneGMT +1
Coordinates37.40589, 14.92391
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLICZ
IATA codeNSY
FAA coden/a

Communication

CATANIA Sigonella Ground Control121.950
CATANIA Sigonella Tower118.050
CATANIA Sigonella Tower122.100
CATANIA Sigonella CATANIA Approach119.250
CATANIA Sigonella CATANIA DIRECTOR120.800

Approach frequencies

ILS-cat-IRW10R108.1518.00mi
3° GSRW10R108.1518.00mi
Nearby Points of Interest:
Museo archeologico di Lentini
-
Catania
-
Museo Biscari
-
Saline di Augusta
-
palazzo municipale
-
chiesa del Monte Calvario
-
Grotta dei Santi
-
Caltagirone
-
Abbey of Saint Mary of Maniace
-
Old market (Syracuse)
-
Palazzo Montalto
-
Palazzo Beneventano del Bosco
-
Palazzo Vermexio
-
Palazzo Arezzo della Targia
-
Syracuse and the Rocky Necropolis of Pantalica
-
Palazzo Impellizzeri
-
Archaeological Civic Museum "Paolo Vagliasindi"
-
Granfonte
-
Ragusa
-
Rocca di Cerere

Runway info

Runway 10R / 28L
 length2448m (8031ft)
 bearing97° / 277°
 width45m (148ft)
 surfaceasphalt
 displ threshold95m (312ft) / 107m (351ft)
 blast zone241m (791ft) / 214m (702ft)
Runway 10L / 28R
 length2439m (8002ft)
 bearing97° / 277°
 width30m (98ft)
 surfaceasphalt
 displ threshold48m (157ft) / 43m (141ft)
 blast zone134m (440ft) / 0m (0ft)

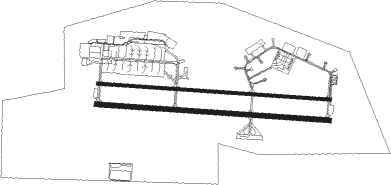

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  T
Parking locations

 300  301  302  303  304  305

Nearby beacons

codeidentifierdistbearingfrequency
NSYSIGONELLA TACAN0.3203°111.20
SIGSIGONELLA NDB2.3102°412
CTFCATANIA NDB7.467°407
COMCOMISO VOR/DME29.7218°113.45
RCAREGGIO CALABRIA NDB50.150°325
RCAREGGIO CALABRIA VOR/DME52.847°111

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW10 (ALL)
 RCA7L50mi50°
 PEKO7L, PEKO5N32mi60°
 PIMO7L, PIMO5N46mi80°
 ALUD5L, ALUD5N35mi111°
 NELD8W, NELD7L, NELD6V, NELD5N41mi224°
 LIBR8W, LIBR7L, LIBR5T25mi295°
RW10R
 PEKO6T32mi60°
 ALUD5T35mi111°
 NELD6T41mi224°
 LIBR6T25mi295°
RW28 (ALL)
 RCA7M50mi50°
 PEKO7M, PEKO5E32mi60°
 PIMO7M, PIMO5E46mi80°
 ALUD5G, ALUD5M35mi111°
 NELD6Z, NELD7M, NELD8X41mi224°
 LIBR7M, LIBR5E, LIBR8X25mi295°
RW28L
 PEKO6U, PEKO5D32mi60°
 PIMO5D46mi80°
 ALUD5D, ALUD5U35mi111°
 NELD5G, NELD6U41mi224°
 LIBR6U, LIBR5D25mi295°
RW28R
 PEKO5D32mi60°
 PIMO5D46mi80°
 ALUD5C35mi111°
 NELD5T41mi224°
 LIBR5D25mi295°

STAR starting pointsdistanceinbound heading
ALL
 NELD3J41.344°
 LIBR3J, LIBR3N25.4115°
 UXUT1J, UXUT1N33.6156°
 NATO3J38.9234°
 PIMO3J45.7260°
 VUSM1J42.7279°
RW10 (ALL)
 NELD1B, NELD3A41.344°
 LIBR1V, LIBR3A25.4115°
 UXUT1V, UXUT1A33.6156°
 NATO3A38.9234°
 PIMO3A, PIMO1V45.7260°
 VUSM1A, VUSM1V42.7279°
RW28 (ALL)
 NELD3C, NELD1D41.344°
 LIBR3C, LIBR1Z25.4115°
 UXUT1C, UXUT1Z33.6156°
 NATO3C38.9234°
 PIMO1Z, PIMO3C45.7260°
 VUSM1Z, VUSM1C42.7279°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10RYNASOM (96°)NASOM 4000ft
CZ500 (4mi, 97°) 2000ft
 RNAVCZ500 2000ft
CZ501 (2mi, 97°) 2000ft
LICZ (7mi, 95°) 132ft
CZ502 (4mi, 100°) 1000ft
SUVAP (11mi, 99°) 3000ft
SUVAP (turn) 3000ft
RW10RZNASOM (96°)NASOM 4000ft
CZ500 (4mi, 97°) 2000ft
 RNAVCZ500 2000ft
CZ501 (2mi, 97°) 2000ft
LICZ (7mi, 95°) 132ft
CZ502 (4mi, 100°) 1000ft
(2395mi, 202°)
NASOM (2391mi, 21°) 4000ft
NASOM (turn) 4000ft
RW28LYSUVAP (279°)SUVAP 4000ft
CZ503 (6mi, 281°) 2000ft
 RNAVCZ503 2000ft
CZ504 (3mi, 277°) 2000ft
LICZ (6mi, 279°) 113ft
CZ505 (5mi, 274°) 1900ft
NASOM (7mi, 277°) 4000ft
NASOM (turn) 4000ft
RW28LZSUVAP (279°)SUVAP 4000ft
CZ503 (6mi, 281°) 2000ft
 RNAVCZ503 2000ft
CZ504 (3mi, 277°) 2000ft
LICZ (6mi, 279°) 113ft
CZ505 (5mi, 274°) 1200ft
(2392mi, 202°)
SUVAP (2397mi, 22°) 4000ft
SUVAP (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LIBR1VLIBROVHFright262 (82)°> 11000ftDME 4.4mi220
LIBR1VNASOMVHFright261 (81)°> 5000ftDME 4.0mi210
LIBR1ZLIBROVHFright262 (82)°> 11000ftDME 4.4mi220
LIBR1ZSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
LIBR1ZVITIFVHFleft171 (351)°> 6000ftDME 4.1mi220
LIBR3AOSDIGVHFright276 (96)°> 4000ftDME 4.0mi210
LIBR3CSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
LIBR3JSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
LIBR3NSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
NATO3AOSDIGVHFright276 (96)°> 4000ftDME 4.0mi210
NATO3CSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
NATO3JSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
NELD1BNASOMVHFright261 (81)°> 5000ftDME 4.0mi210
NELD1BVITIFVHFleft171 (351)°> 6000ftDME 4.1mi220
NELD1DSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
NELD1DVITIFVHFleft171 (351)°> 6000ftDME 4.1mi220
NELD3AOSDIGVHFright276 (96)°> 4000ftDME 4.0mi210
NELD3CSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
NELD3JSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
PIMO1VASUFEVHFleft129 (309)°> 7000ftDME 4.5mi240
PIMO1VNASOMVHFright261 (81)°> 5000ftDME 4.0mi210
PIMO1VPIMORVHFleft81 (261)°> 11000ftDME 4.8mi240
PIMO1ZPIMORVHFleft81 (261)°> 11000ftDME 4.8mi240
PIMO1ZSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
PIMO3AOSDIGVHFright276 (96)°> 4000ftDME 4.0mi210
PIMO3CSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
PIMO3JSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
UXUT1AOSDIGVHFright276 (96)°> 4000ftDME 4.0mi210
UXUT1CSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
UXUT1JSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
UXUT1NSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
UXUT1VLIBROVHFright262 (82)°> 11000ftDME 4.4mi220
UXUT1VNASOMVHFright261 (81)°> 5000ftDME 4.0mi210
UXUT1VUXUTAVHFright332 (152)°> 15000ftDME 5.1mi240
UXUT1ZLIBROVHFright262 (82)°> 11000ftDME 4.4mi220
UXUT1ZSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
UXUT1ZUXUTAVHFright332 (152)°> 15000ftDME 5.1mi240
UXUT1ZVITIFVHFleft171 (351)°> 6000ftDME 4.1mi220
VUSM1AOSDIGVHFright276 (96)°> 4000ftDME 4.0mi210
VUSM1CSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
VUSM1JSIGFIXright278 (98)°> 3000ft1.0min timedICAO rules
VUSM1VASUFEVHFleft129 (309)°> 7000ftDME 4.5mi240
VUSM1VNASOMVHFright261 (81)°> 5000ftDME 4.0mi210
VUSM1VVUSMEVHFleft141 (321)°> 11000ftDME 4.8mi240
VUSM1ZSUVAPVHFleft98 (278)°> 4000ftDME 4.0mi210
VUSM1ZVUSMEVHFleft141 (321)°> 11000ftDME 4.8mi240
*) magnetic outbound (inbound) holding course
